MSHSM544800PVC Sheet Smooth 4/4"×4'×8'
| Length | 8 ft. |
| Height / Width | 4 ft. |
| Thickness | 4/4" |
CertainTeed›Restoration Millwork®
Large-format cellular PVC panels for soffits, pop-outs, raised panels, and custom applications
Restoration Millwork® PVC Sheets

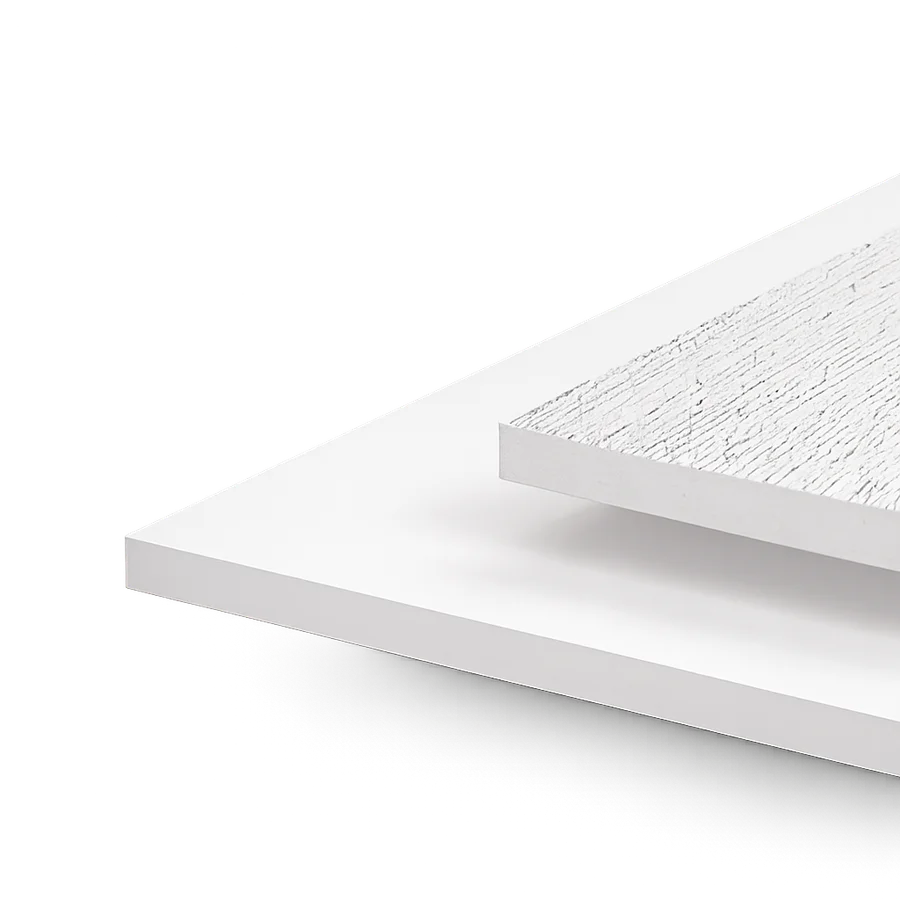

Restoration Millwork® PVC Sheets by CertainTeed are large-format cellular PVC panels engineered for applications that demand smooth, flat, low-maintenance surfaces — soffits, pop-out bay windows, raised panels, dormers, and custom architectural details. Available in five thicknesses (3/8", 1/2", 5/8", 3/4", and 4/4") in 4'×8', 4'×10', and 4'×12' sheet sizes, with a Smooth finish on both sides or a reversible Wood Grain/Smooth option. All sheets ship natural white and accept paint for colour matching. FinishedEdge™ heat-sealed edges and TrueTexture™ woodgrain detailing are standard. Class A Flame Spread rated, ICC and CCMC compliant, NAHB Research Center Green Approved, and backed by a 25-year limited warranty.
3/8" · 1/2" · 5/8" · 3/4" · 4/4"
Profiles & Specifications
MSHSM1241000PVC Sheet Smooth 1/2"×4'×10'
| Length | 10 ft. |
| Height / Width | 4 ft. |
| Thickness | 1/2" |
MSHSM1241200PVC Sheet Smooth 1/2"×4'×12'
| Length | 12 ft. |
| Height / Width | 4 ft. |
| Thickness | 1/2" |
MSHSM3441200PVC Sheet Smooth 3/4"×4'×12'
| Length | 12 ft. |
| Height / Width | 4 ft. |
| Thickness | 3/4" |
MSHSM5841200PVC Sheet Smooth 5/8"×4'×12'
| Length | 12 ft. |
| Height / Width | 4 ft. |
| Thickness | 5/8" |
MSHSM5441200PVC Sheet Smooth 4/4"×4'×12'
| Length | 12 ft. |
| Height / Width | 4 ft. |
| Thickness | 4/4" |
MSHR384800PVC Sheet Wood Grain/Smooth 3/8"×4'×8'
| Length | 8 ft. |
| Height / Width | 4 ft. |
| Thickness | 3/8" |
MSHR124800PVC Sheet Wood Grain/Smooth 1/2"×4'×8'
| Length | 8 ft. |
| Height / Width | 4 ft. |
| Thickness | 1/2" |
MSHR344800PVC Sheet Wood Grain/Smooth 3/4"×4'×8'
| Length | 8 ft. |
| Height / Width | 4 ft. |
| Thickness | 3/4" |
Certifications & Testing Standards
Restoration Millwork® PVC Sheets meets or exceeds the following Canadian and international performance standards.
| Test / Property | Standard | Result / Value |
|---|---|---|
Flame Spread ASTM E84 — Class A (Class 1) | - | Certified |
Code Compliance — ICC and CCMC | - | Certified |
NAHB Research Center Green Approved | - | Certified |
Installation Guide
Use PVC cement for all mitre and scarf joints to control expansion and contraction
Recommended adhesives: Extreme PVC Trim Welder® or Partite® Adhesive
Score and snap for straight cuts; use a fine-tooth circular saw blade for custom shapes
Cuts and mills with standard woodworking tools — no special blades required
Remove protective film after installation to avoid adhesive residue
Refer to the Kaycan Restoration Millwork® installation manual for complete fastener schedules and gap allowances
Video Guide
Restoration Millwork® Installation Videos
