The Allure of Authentic Cedar
Kaycan Board & Batten Vertical siding captures the allure of authentic cedar with a heavy-gauge vinyl profile that won't rot, warp, or need painting. The full 7" vertical panel with distinct shadow lines and tongue-and-groove cedar plank appearance delivers striking depth and dimension on any exterior — from full-wall treatments to gable accents and lower-course features. Duratron™ Vinyl Technology ensures long-term weatherability in Canadian conditions, while the low-gloss woodgrain finish in 17 colours keeps the look of freshly painted wood year after year.
Azure Blue
Board & Batten Collection
Board & Batten Collection(17)
Colours shown are approximate representations only and may appear differently on screen than the actual product. Request a physical sample before making your final decision.
Kaycan Board & Batten Vertical siding captures the allure of authentic cedar with a heavy-gauge vinyl profile that won't rot, warp, or need painting. The full 7" vertical panel with distinct shadow lines and tongue-and-groove cedar plank appearance delivers striking depth and dimension on any exterior — from full-wall treatments to gable accents and lower-course features. Duratron™ Vinyl Technology ensures long-term weatherability in Canadian conditions, while the low-gloss woodgrain finish in 17 colours keeps the look of freshly painted wood year after year.
Kaycan Board & Batten Vertical siding brings the allure of authentic cedar to a heavy-gauge vinyl profile. With its distinct shadow lines and tongue-and-groove cedar plank appearance, it delivers the charm of traditional farmhouse and barn-style architecture with all the durability of modern vinyl. The full 1/2" profile depth and low-gloss woodgrain finish create natural-looking depth and dimension that suits both full-wall installations and striking accent applications on gables or lower building sections. Engineered with Duratron™ Vinyl Technology for long-term weatherability, Board & Batten Vertical is available in 17 woodgrain colours.
Available at Pro Materials in Newmarket, Ontario, supplying contractors, builders, and homeowners across York Region, the GTA, and Ontario. All products are available on a quote basis; contact us for wholesale pricing and current availability.

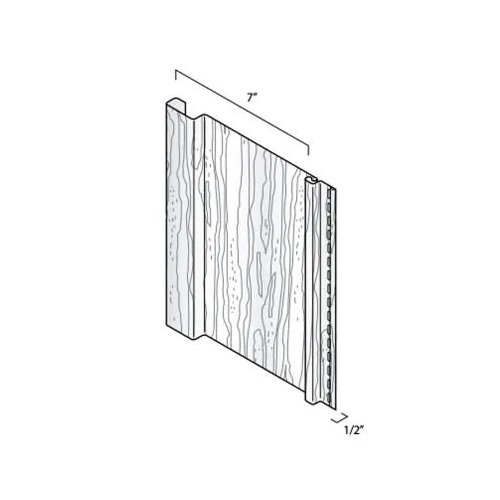

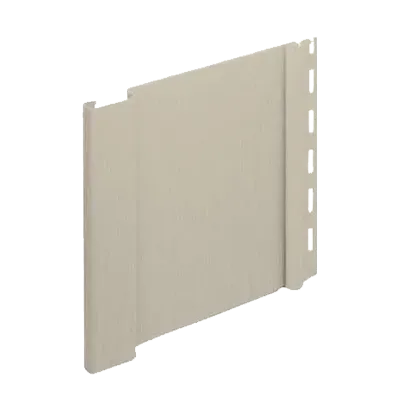

Full 7" vertical panel with distinct shadow lines and tongue-and-groove cedar plank appearance — ideal as a full-wall treatment, gable accent, or lower-course feature
| Length | 10' (3.05 m) |
| Panels/Box | 17 panels/carton |
| Coverage | 100 sq. ft. (9.29 m²) per carton |
| Gauge | 0.050" (heavy gauge) |
| Profile Depth | 1/2" full |
| Exposure | 7" full |
| Finish | Low gloss, woodgrain only |
Install only on a smooth, flat surface — do NOT install over strapping; use underlayment to provide a flat surface if needed
Work from the Vertical Base Trim upward; lock each panel and fasten every 12" vertically
Place the first fastener in the uppermost end of the top nail slot to hold panel in position
Place all remaining fasteners in the centre of the nail slots; fasten every 12"
Leave 3/8" clearance above all horizontal joints at windows, doors, and other obstacles
Leave 1/4" clearance below all horizontal joints at windows, doors, and other obstacles
Leave 1/32" to 1/16" clearance between nail head and siding panel (panels must move freely)
Never face-nail siding — always fasten through the nailing hem only
Leave 1/4" expansion gap at all trim junctions — increase to 3/8" in cold climates or below 40°F
Do not caulk between panels or between siding and J-channel — panels must expand and contract freely
Drive fasteners straight and level — nailing at an angle distorts panels and causes buckling
Apply drip cap above all windows, doors, and horizontal breaks before installing siding over them
Use fasteners long enough to penetrate a minimum of 3/4" into the nailable base
Check every fifth or sixth panel for plumb alignment; also check alignment with adjoining walls
Check all local building codes and fire regulations before installation; local code requirements always take precedence
General Tools
Specialty Tools
| Accessory | Purpose | Where to use |
|---|---|---|
| Vertical Base Trim (1175)Designed specifically for vertical siding — provides a secure base channel that supports panel weight and prevents inward movement at the base | Starting base for vertical panel installation — anchors first panels and sets wall alignment | Bottom of wall, level, before the first vertical panel course |
| 5/8" J Trim (1035)5/8" deep channel accommodates panel movement; allow 3/8" clearance above horizontal joints and 1/4" below per technical bulletin | Frames all wall penetrations and terminates siding at top of wall under soffit | Around door and window openings (sides, top, bottom); under soffits at top of wall |

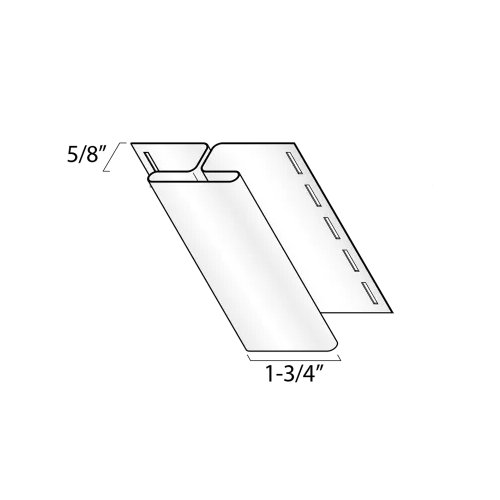

| H Trim (1179)5/8" channels on both sides receive adjacent panel ends — provides weathertight horizontal joint without face lapping | Joins panels end-to-end on tall walls requiring more than one panel height | At horizontal seams where panel tops and bottoms meet; keep seams staggered |

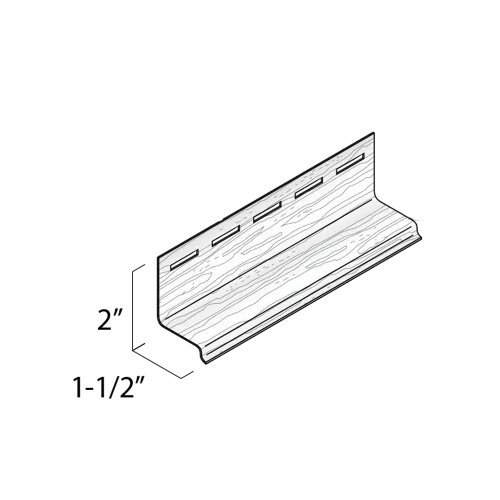

| Drip Cap (1185)2" height; install before siding — vertical panels overlap the drip cap flange for positive drainage | Directs water away from horizontal breaks and opening tops | Above all windows and doors, and at any horizontal band break in the vertical run |

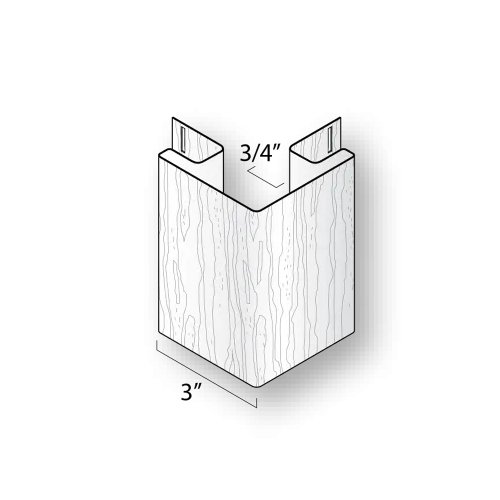

| 3" Outside Corner (1105)3" wide face — sized for the full 7" Board & Batten panel; provides clean, weathertight outside corner finish | Finished outside corners where two vertical-sided walls meet at an exterior angle | Plumb at outside corners; vertical panels slide into the 5/8" channels on each face |
Formula
Siding required = [Wall area (Step 1) + Gable/dormer area (Step 2) − Openings area (Step 3)] + 10% waste
1 square = 100 sq.ft. (standard industry unit); Board & Batten carton covers 1 square exactly
Step 1 — Sketch all four sides of the home; for each wall multiply height × width to get surface area in sq.ft.
Step 2 — Measure gables and dormers: for each triangle measure straight up from the base to the top, then multiply base × height × 0.5; add all gable/dormer areas together
Step 3 — Measure all openings NOT to be covered (windows, doors, chimneys) and multiply height × width for each; add together
Step 4 — Add Step 1 + Step 2, subtract Step 3, then add 10% for cutting waste: Siding required = [Step 1 + Step 2 − Step 3] + 10%
Step 5 — Divide total sq.ft. by 100 to determine the number of cartons needed (1 carton = 100 sq.ft.); round up to next whole carton
Step 6 — Measure under eaves: multiply the length by the width of each overhang and add together (for soffit calculation)
Step 7 — Determine soffit squares: divide soffit total from Step 6 by 100
Step 8 — Measure linear feet of each accessory (vertical base trim, J-trim, H trim, drip cap, outside corners)
Step 9 — Order accessories: vertical base trim, J-trim, H trim, and drip cap by linear feet (10'–12' lengths); outside corners by linear feet (10' lengths)
Colour is manufactured throughout the panel — scratches or cut edges are not visible from normal viewing distance
Submit your spec list and we'll respond with pricing and availability - usually within one business day. Available in 17 colours for your project.
