Inspired by Versatility
Kaycan DaVinci™ Board & Batten brings authentic vertical siding character to any home with two distinct profiles. The classic DaVinci™ Board and Batten (0259) delivers a flat face with authentic low gloss woodgrain texture and rich shadow lines in five heritage colours. The DaVinci™ Intense (0260) takes it further — a distinctive convex curved face with the same woodgrain finish and three deep, dramatic Intense colours, protected by Helios™ Technology against heat-induced distortion. Both profiles feature heavy gauge premium thickness, Colorfast™ colour-lock formulation, and Duratron™ Vinyl Technology engineered for decades of Canadian climate performance.
Boulder Grey
DaVinci™ Intense Board and Batten Colours
DaVinci™ Intense Board and Batten Colours(3)
DaVinci™ Board and Batten Colours(5)
Colours shown are approximate representations only and may appear differently on screen than the actual product. Request a physical sample before making your final decision.
Kaycan DaVinci™ Board & Batten brings authentic vertical siding character to any home with two distinct profiles. The classic DaVinci™ Board and Batten (0259) delivers a flat face with authentic low gloss woodgrain texture and rich shadow lines in five heritage colours. The DaVinci™ Intense (0260) takes it further — a distinctive convex curved face with the same woodgrain finish and three deep, dramatic Intense colours, protected by Helios™ Technology against heat-induced distortion. Both profiles feature heavy gauge premium thickness, Colorfast™ colour-lock formulation, and Duratron™ Vinyl Technology engineered for decades of Canadian climate performance.

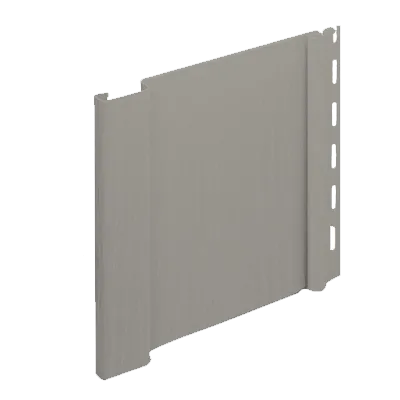

Kaycan DaVinci™ Board & Batten is a premium vertical vinyl siding that brings timeless board-and-batten character to any home as primary siding or a striking accent. Available in two distinct profiles — the classic DaVinci™ Board and Batten with flat face and authentic woodgrain, and the architecturally bold DaVinci™ Intense with its distinctive convex curved face and deep, vivid Intense colours. Both feature heavy gauge premium thickness for outstanding impact resistance, low gloss woodgrain finish, and Duratron™ Vinyl Technology for long-lasting durability. The Intense line is further protected by Helios™ Technology to preserve bold colour against heat distortion. Colorfast™ formulation locks colour throughout the panel to resist scratches and fading. Available in 8 colours across two collections — designed, developed, and manufactured in Canada.
Available at Pro Materials in Newmarket, Ontario, supplying contractors, builders, and homeowners across York Region, the GTA, and Ontario. All products are available on a quote basis; contact us for wholesale pricing and current availability.

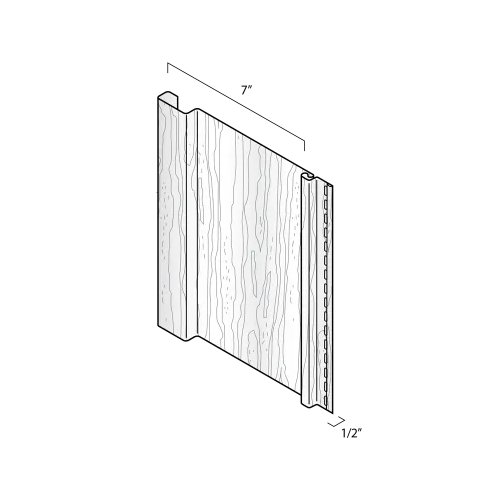

Full 7" vertical board panel with authentic low-gloss woodgrain texture and 1/2" profile depth — delivers bold vertical shadow lines for a classic board-and-batten appearance
| Length | 10' (3.05 m) |
| Panels/Box | 17 panels/carton |
| Coverage | 100 sq. ft. (9.29 m²) per carton |
| Profile Depth | 1/2" full |
| Exposure | 7" full |
| Finish | Low gloss woodgrain |
| Gauge | Heavy gauge premium thickness |

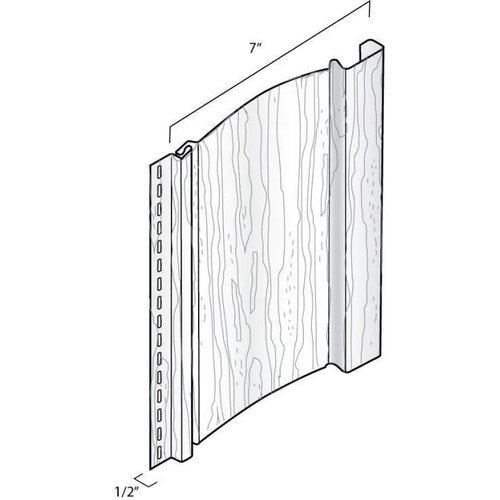

Full 7" vertical panel with a distinctive convex curved face and low gloss woodgrain finish — provides a bold architectural aesthetic with deep, intense colour in three vivid tones
| Length | 10' (3.05 m) |
| Panels/Box | 17 panels/carton |
| Coverage | 100 sq. ft. (9.29 m²) per carton |
| Profile Depth | 1/2" full |
| Exposure | 7" full |
| Finish | Low gloss woodgrain, curved face (Intense) |
| Gauge | Heavy gauge premium thickness |
Install only on a smooth, flat surface — do NOT install over strapping; use underlayment to achieve a flat surface if needed
Work from the Vertical Base Trim upward; lock each panel and fasten every 12" vertically
Place the first fastener in the uppermost end of the top nail slots to hold the panel in position
Place all other fasteners in the center of the nail slots; fasten every 12"
Allow 3/8" clearance above all horizontal joints — including at windows, doors, and other obstacles
Allow 1/4" clearance below horizontal joints per Technical Bulletin
Leave 1/32" to 1/16" clearance between nail head and siding panel — panels must float freely to expand and contract
Never face-nail siding — fasten through the nailing hem only
Apply drip cap above all windows and doors before installing siding over them
Install Vertical Base Trim level at the bottom of the wall before starting the first panel course
Check every fifth or sixth panel course for vertical alignment
Installation instructions must be followed — any deviation will render the warranty null and void
Always refer to the complete Kaycan Vinyl Siding Installation Guide before starting
Check all local building codes and fire regulations before installation; local code requirements always take precedence
General Tools
Specialty Tools
| Accessory | Purpose | Where to use |
|---|---|---|

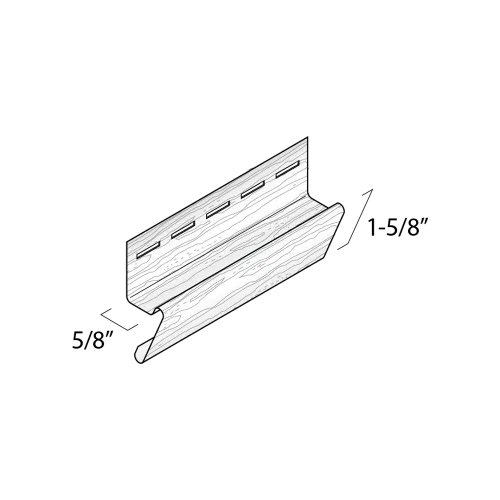

| Vertical Base Trim (1175)5/8" channel receives panel bottom edge; 1-5/8" total height supports panel weight and prevents inward movement at the base | Starting base for vertical panel installation — anchors first panels and sets wall alignment | Bottom of wall, level, before the first vertical panel course |
| 5/8" J-Trim (1034)5/8" deep channel; allow 3/8" clearance above horizontal joints and 1/4" below per Technical Bulletin; 1-7/16" face height, 1-1/4" base | Frames all wall penetrations and terminates siding at top of wall under soffit | Around door and window openings (sides, top, bottom); under soffits at top of wall |

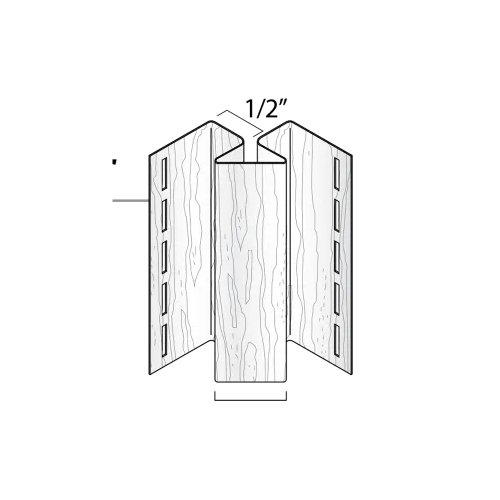

| 1/2" Inside Corner (VCBINP)1/2" channel depth designed specifically for DaVinci™ Board and Batten panels | Finished inside corners where two vertical-sided walls meet at an interior angle | Plumb at inside corners; vertical panels slide into the 1/2" channels on each side |

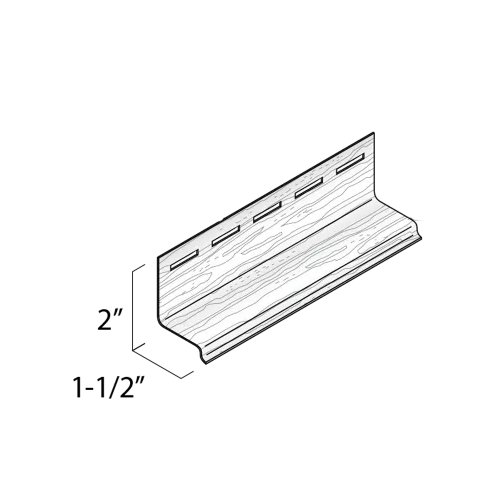

| Drip Cap (1185)2" height, 1-1/2" base; install before siding — vertical panels overlap the drip cap flange for positive drainage | Directs water away from horizontal breaks and opening tops | Above all windows and doors, and at any horizontal band break in the vertical run |

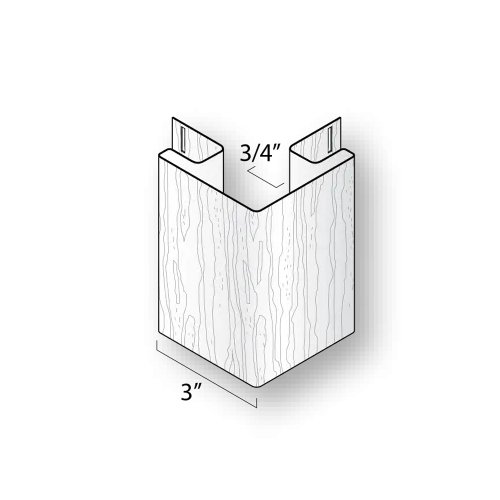

| 3" Outside Corner (1098)3" wide face — sized for the full 7" DaVinci™ Board and Batten panel; 3/4" channel depth | Finished outside corners where two vertical-sided walls meet at an exterior angle | Plumb at outside corners; vertical panels slide into the 3/4" channels on each face |
Formula
Siding required = [Wall area (Step 1) + Gable/dormer area (Step 2) − Openings area (Step 3)] + 10% waste
1 square = 100 sq.ft. (standard industry unit); DaVinci™ carton covers 1 square exactly
Step 1 — Sketch all four sides of the home; for each wall multiply height × width to get surface area in sq.ft.
Step 2 — Measure gables and dormers: for each triangle measure straight up from the base to the top, then multiply base × height × 0.5; add all gable/dormer areas together
Step 3 — Measure all openings NOT to be covered (windows, doors, chimneys) and multiply height × width for each; add together
Step 4 — Add Step 1 + Step 2, subtract Step 3, then add 10% for cutting waste: Siding required = [Step 1 + Step 2 − Step 3] + 10%
Step 5 — Divide total sq.ft. by 100 to determine the number of cartons needed (1 carton = 100 sq.ft.); round up to next whole carton
Step 6 — Measure under eaves: multiply the length by the width of each overhang and add together (for soffit calculation)
Step 7 — Determine soffit squares: divide soffit total from Step 6 by 100
Step 8 — Measure linear feet of each accessory (base trim, J-trim, corner posts, drip cap)
Step 9 — Order accessories: base trim and J-trim by linear feet; corners by linear feet; all available in 10' or 12' lengths
Intense colours are produced using Helios™ Technology — deeper pigment levels; handle with care during installation to avoid visible surface marks
