Mitten›Alu-Rex Gutter Protection

Gutter Protection

Name: Exterior Pro Materials
Address: Unit 5, 1235 Journey's End Cir, Newmarket, ON, L3Y 8T7, CA
Telephone: +1 (905) 836-7272

Alu-Rex Gutter Protection — distributed by Mitten — brings the most advanced leaf-guard and continuous-hanger technology to Canadian residential and light commercial projects. The DoublePro's patented dual-membrane system is the only gutter guard with a 360° Lifetime Warranty covering clog-free performance even in coniferous/pine areas, while supporting 438 lb per linear foot versus the near-zero capacity of traditional spike-and-ferrule hangers. The T-Rex continuous hanger system replaces spikes and hangers entirely, fastening the gutter to the fascia every 24" along its full length. The Gutter Clean System retrofits over any existing 5" or 6" K-style gutter in a matter of minutes. All three systems drain at least 29.7" (754 mm) of water per hour and reduce ice and snow complications. With nearly 20 years in business and over 250 million linear feet sold worldwide, Alu-Rex stands behind every product.

0.014"–0.021" aluminum (product-dependent)

Request a Quote Datasheet

WarrantyDoublePro: 360° Lifetime · T-Rex: Lifetime materials

Profiles & Specifications

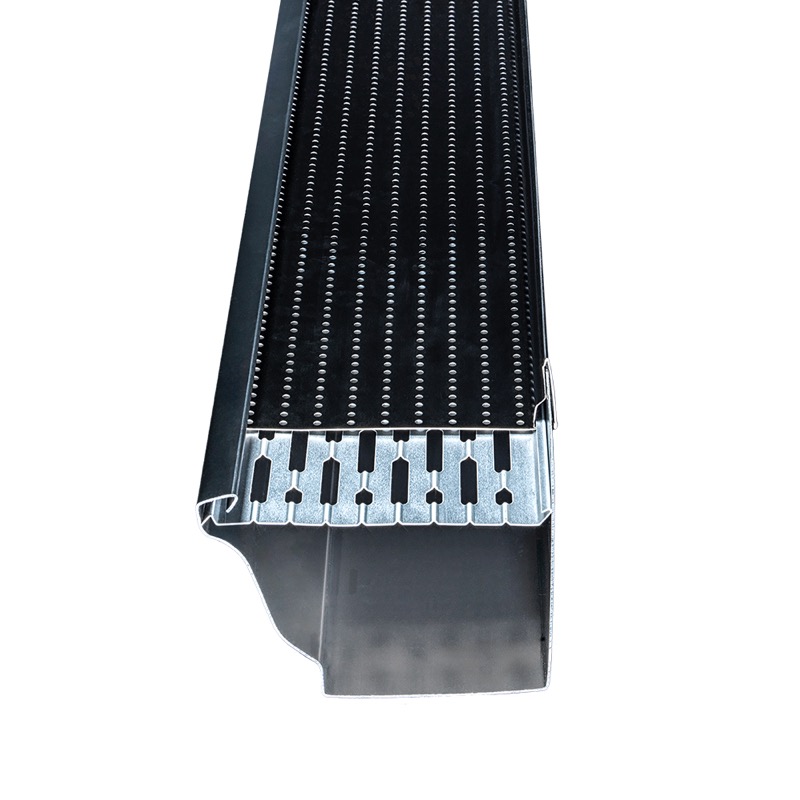

DOUBLEPRODoublePro

Alu-Rex's flagship dual-layer microfiltration continuous hanger for new rain gutters in debris and coniferous/pine-needle areas. The patented double-membrane design: the outer black aluminum layer (0.017") filters leaves and fine debris through 7/64" perforations; the inner aluminum layer (0.014") uses wider 1¼"×0.267" slots and surface tension to triple drainage capacity. Supports 438 lb (199 kg) per linear foot and drains 40.6" of water per hour. The only gutter guard with a 360° Lifetime Warranty covering clog-free performance in pine/coniferous areas.

Length	7.5' (2.29 m) per piece
Installation	New rain gutters — debris and coniferous areas
Available Models	D-11500 (5")
Packaging	24 pcs/ctn (180'/ctn)
Load Capacity	438 lb (199 kg) per linear foot
Drainage Rate	40.6"/hr (1,031 mm/hr)
Top Layer	Black aluminum · Grade 3105 H24 · 0.017" · 7/64" (2.8 mm) perforations
Bottom Layer	Aluminum colour · Grade 3105 H24 · 0.014" · 1¼"×0.267" slots
Gap Between Layers	0.050" (1.27 mm)
Screws Included	200 self-sealing zinc #10-1½" · ¼" black hex heads · rubber gaskets
Warranty	360° Lifetime — materials, sturdiness & clog-free (including pine needles)

Wintershield technology stops ice build-up in the gutter, protecting it from warping caused by freeze/thaw cycles. Only gutter guard with a lifetime clog-free warranty covering pine/coniferous areas.

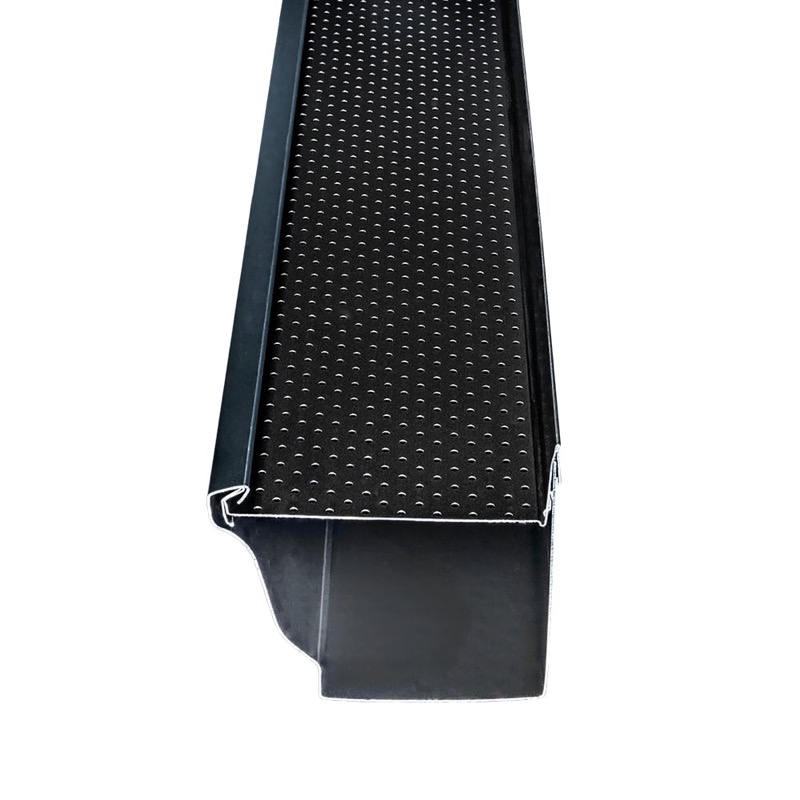

TREXT-Rex Continuous Hanger

Continuous hanger system for new rain gutters in treeless/low-debris areas. Replaces spikes and hangers entirely — supports 232–260 lb (105–118 kg) per linear foot along the entire gutter length. Screws into the fascia board every 24" (60 cm) using the included self-sealing screws; invisible from the ground. Drains 29.7"–36" of water per hour depending on gutter size.

Length	7.5' (2.29 m) per piece
Installation	New rain gutters — treeless/low-debris areas
Available Models	M-5200 (5") · M-5200 B95 (5" Carbon Black) · M-5221 (5", 0.021") · M-6200 (6")
Packaging	M-5200/M-5221: 48 pcs/ctn (360') · M-6200: 34 pcs/ctn (255')
Load Capacity	M-5200/M-6200: 232 lb (105 kg)/LF · M-5221: 260 lb (118 kg)/LF
Drainage Rate	5": 29.7"/hr (754 mm/hr) · 6": 36"/hr (914 mm/hr)
Material	Aluminum Grade 3105 H24 · Gold backer (standard) or Carbon Black B95
Thickness	M-5200/M-6200: 0.017" · M-5221: 0.021"
Perforations	7/64" (2.8 mm) diameter · ratio 1:1
Screws Included	300 self-sealing zinc #10-1½" · ¼" hex heads · rubber gaskets
Max Roof Slope	M-5200 (0.017"): up to 8:12 · M-5221 (0.021"): up to 14:12
Warranty	Lifetime on materials & sturdiness · 40-year prorated on clog-free performance

M-5221 (0.021" thick) handles roof slopes up to 14:12. M-5200 B95 available in Carbon Black finish.

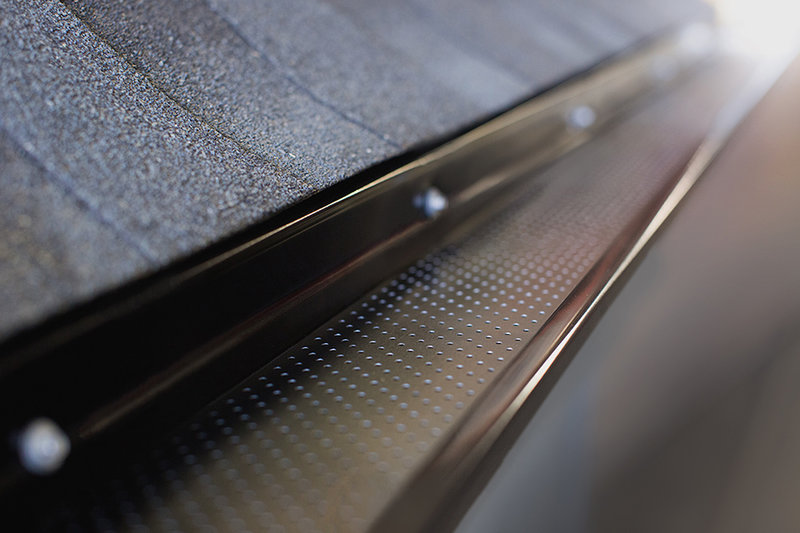

GCSGutter Clean System

Retrofit gutter protection that installs over existing K-style rain gutters without removing or replacing them. The patented Flex Seal Technology creates a watertight back hook, resistant to UV and temperature changes, with mold protection. Drains 29.7"–36.5" (754–927 mm) of water per hour. Available for standard and screw-on hanger gutter styles. 40-year warranty.

Length	7.44' (2.27 m) per piece
Installation	Existing K-style rain gutters — no gutter replacement required · Fasten front every 24" (60 cm) using #6 × 3/8" screws
Available Models	M-5300 (5") · M-53ZIP (5" ZIP, screw-on hangers) · M-6300 (6") · M-63ZIP (6" ZIP)
Packaging	43 pcs/ctn (320'/97 m)
Drainage Rate	5": 29.7"/hr (754 mm/hr) · 6": 36.5"/hr (927 mm/hr)
Material	Aluminum Grade 3105 H24
Thickness	0.0175"
Perforations	7/64" (2.8 mm) diameter · ratio 1:1
Flex Seal Technology	Watertight back — UV & temperature resistant · mold protection · patented
Warranty	40-year prorated — 100%/10yr · 50%/20yr · 30%/30yr · 10%/40yr

Use M-53ZIP/M-63ZIP for gutters with screw-on hangers. Do NOT install standard M-5300 over screw-on hangers.

Specifications

T-Rex Continuous Hanger

Model	Width	Length	Pcs/Ctn
M5200	5"	7½'	48
M5200 B95(Carbon Black)	5"	7½'	48
M5221(0.021" thick)	5"	7½'	48
M6200	6"	7½'	34

DoublePro

Model	Width	Length	Pcs/Ctn
D-11500	5"	7½'	24

Gutter Clean System

Model	Width	Length	Pcs/Ctn
M5300	5"	7½'	43
M53ZIP(screw-on hangers)	5"	7.44'	43
M6300	6"	7.44'	43
M63ZIP(screw-on hangers)	6"	7.44'	43

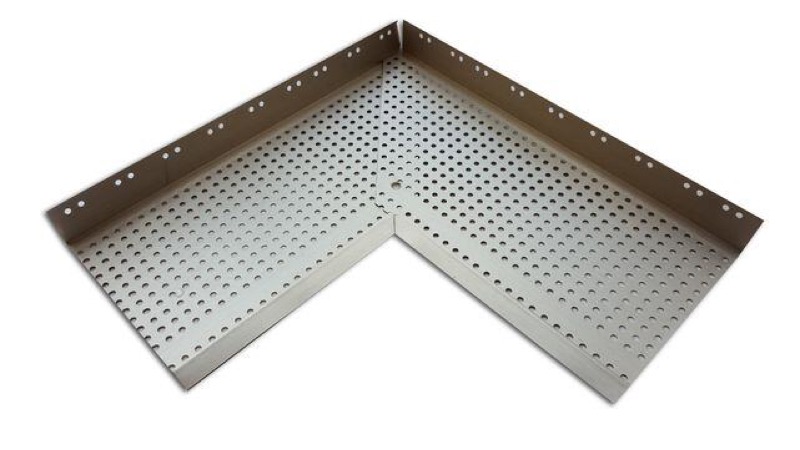

Inside & Outside Corners

Model	Width	Pcs/Ctn
Inside Corner — M5200	5"	20
Outside Corner — M5200	5"	20
Inside Corner — M5200 B95	5"	20
Outside Corner — M5200 B95	5"	20
Inside Corner — M6200	6"	20
Outside Corner — M6200	6"	20
Universal Corner — D-11500	5"	10

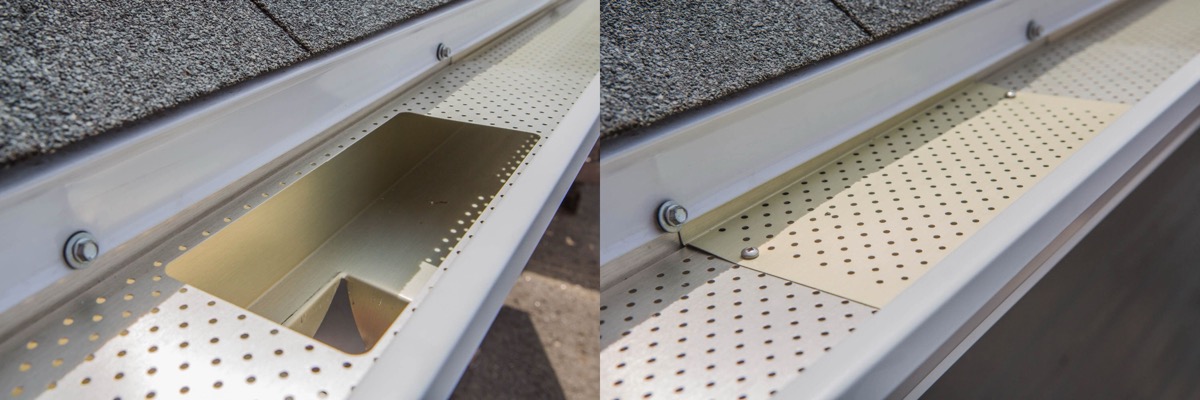

Access Panels

Model	Width	Length	Pcs/Ctn
Access Panel — M5200	4½"	18"	20
Access Panel — M5200 B95	4½"	18"	20
Access Panel — M6200	5½"	18"	20
Universal Access Panel — D-11500	5"	20

Place one access panel over the downspout and one at the far end of each eavestrough run.

Order quantities and lead times may vary. Contact us for availability.

Compatible Accessories

Installation Guide

Choose the correct product line: DoublePro (D-series) for new gutters in coniferous or heavy-debris areas; T-Rex (M-series) for new gutters in treeless/low-debris areas; Gutter Clean System for existing gutters that do not need replacement.
DoublePro & T-Rex — Install Starting Strip method: insert the front of the product inside the front lip of the eavestrough, then fit the back onto the rear of the eavestrough. Crimp the back of the product and eavestrough together every 3 ft (1 m) using an end cap crimping tool for stability.
For DoublePro: always secure both layers together with ½" screws before making any straight cut or cutting a hole for a 2nd-floor downspout connection. This prevents the two membranes from separating during cutting.
Fasten the back of the product into the fascia board every 24" (60 cm) using the self-sealing screws provided. Screws must not exert upward or downward pressure — this causes joint spacing and deformation.
Stop all sections inside the end cap to prevent water from overflowing at terminations.
Corners — Stop sections 4"–5" from the corner. Use Alu-Rex prefab corners. The prefab corner must overlap the product sections on both sides. For inside corners, cut the DoublePro sub-membrane diagonally following the top-membrane cut.
Install a water diverter in all inside corners and roof valleys, placed directly on top of the product.
Gutter Clean System — Clean and flush existing gutters and downspouts before installation. Place the product on top of the gutter with vinyl strip against the fascia or drip edge. Fasten the front every 24" (60 cm) using #6 × 3/8" screws.
Overlaps: always place the stronger (upstream) section under the weaker (downstream) section. Connect sections without leaving any seams; fasten both sections with a screw at each overlap.
Access Panels: for optimal use, place one AP over the downspout opening and one at the opposite end of the eavestrough. Leave a 9" (23 cm) gap in the DoublePro for the access panel opening.
In coniferous areas, use downspouts 3" × 3" (70 × 70 mm) or 3" × 4" (70 × 110 mm) to handle increased debris runoff.
Do NOT install the standard Gutter Clean System M-5300 over screw-on hangers — use M-53ZIP or M-63ZIP instead.
Half-round gutter protection (HR/HRC series): multiple profiles of half-round gutters exist on the market — verify that the gutter profile matches the product's specifications before installing.
Notify your supplier before installing more than 500 sq. ft. if any product issue is discovered to preserve warranty coverage.
