Versetta Stone — Ledgestone

Versetta Stone Ledgestone masters the authentic look of hand-laid stone with glass-fiber-reinforced cement panels that interlock via a tongue-and-groove system. The built-in 1/4" rain screen, embedded G-90 galvanized nail strip, and Class A fire rating (Flame Spread 0) make it one of the most complete stone cladding solutions available — suitable for exterior walls, wainscot, fireplaces, and interior accent walls alike.

1.8" (46 mm)>90 mph / 20.4 psf wind4 colours
Request a QuoteDatasheet

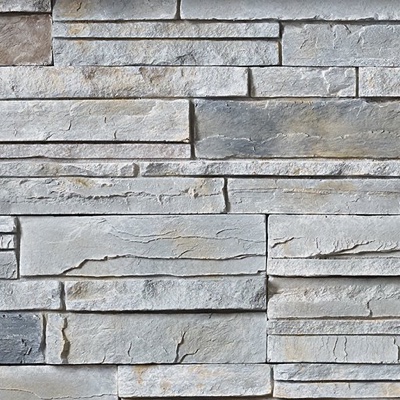

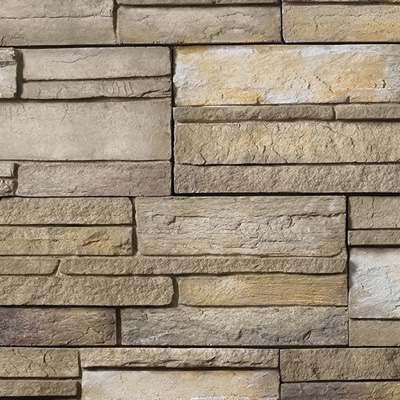

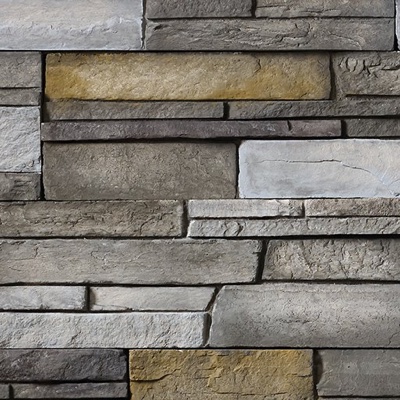

Available Colours

4

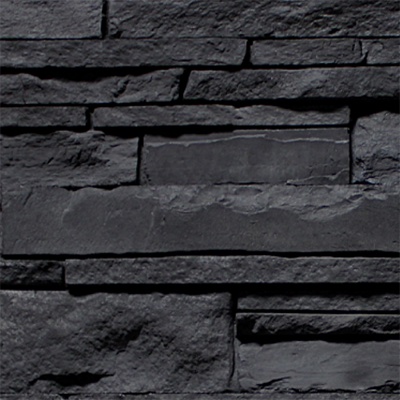

Versetta Stone — Ledgestone - Northern Ash

Northern Ash

Ledgestone

Ledgestone(4)

Colours shown are approximate representations only and may appear differently on screen than the actual product. Request a physical sample before making your final decision.

Profiles & Specifications

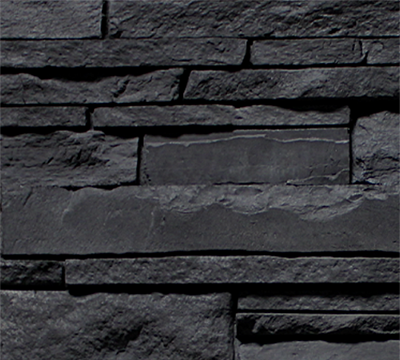

Versetta Stone — Ledgestone - Flat Panel profile
LEDGESTONEFlat Panel

Mortarless, cement-based manufactured stone veneer panel with tongue-and-groove interlocking system and built-in 1/4" rain screen. No metal lath, scratch coat, or mortar required.

Length36" (914 mm)
Height / Width8" exposure / 9.5" total height incl. nailing hem (203 / 241 mm)
Thickness1.8" (46 mm)
Panel Weight~17 lbs/panel (~8.5 psf installed; 8.8 psf avg. coverage weight per ASTM C 567)
Panels/Box2 panels/carton
Coverage2 sq.ft./panel · 4 sq.ft./carton (0.37 m²)
Wind Resistance>90 mph most exposures · 20.4 psf allowable negative (outward) per ESR-2859
InstallationMechanical fasteners — 4 screws or roofing nails per panel; 2 must penetrate framing; min. 1" penetration into framing
BackingMin. 7/16" OSB or 1/2" plywood sheathing; 1 layer Grade D building paper or WRB (ASTM E 2556); framing 16" o.c.

Built-in 1/4" rain screen; embedded G-90 galvanized steel nail strip (200 lb pull-out per 6" sample / 1,200 lb full panel). Universal Corner panel used for outside corners, inside corners, and end-wall terminations.

Certifications & Testing Standards

Versetta Stone — Ledgestone meets or exceeds the following Canadian and international performance standards.

Test / PropertyStandardResult / Value
ICC Evaluation Service Report ESR-2859 (Westlake Royal Stone LLC)
-Certified
Class A Fire Rating — ASTM E 84: Flame Spread
-0 / Smoke Developed = 0
50-Year Transferable Limited Warranty
-Certified
UL Environment — Minimum
-50% Recycled Content Validated
NAHB Green Approved Product
-Certified
IBC / IRC 2006, 2009, 2012 & 2015 Compliant
-Certified
CALGreen 2019 (California Green Building Standards Code, Title 24 Part 11)
-Certified
ICC 700 National Green Building Standard (2008, 2012, 2015, 2020)
-Certified
TDI EC-112 Evaluation Report
-Certified
TER 1703-08 · TER 1212-01 Evaluation Reports
-Certified

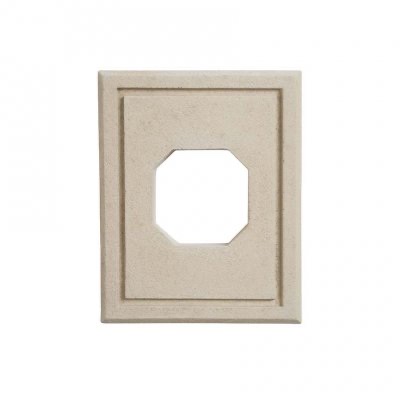

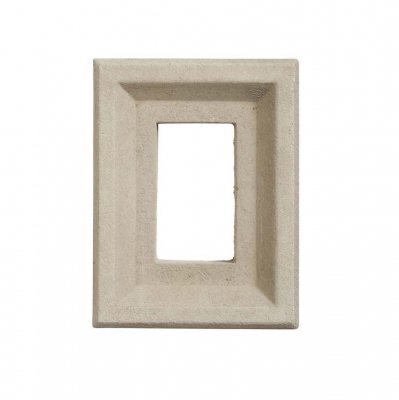

Compatible Accessories

Installation Guide

  1. Install panels from bottom to top, lapped shingle fashion. Seat the tongue fully into the groove of each row below — do not force or leave gaps between panels.

  2. Install Starter Strip first at base using roofing nails or Versetta Fasteners every 8–10"; leave 1/32" gap between fastener head and strip flange; lap WRB over the nail flange.

  3. Use 4 mechanical fasteners per panel (panels > 18" long); minimum 2 must penetrate wall framing; position end fasteners within 3" of each panel end; leave 1/32" gap between fastener head and nailing channel.

  4. Stagger vertical joints a minimum of 8" between consecutive rows to avoid continuous seams; mark a level chalk line every 24" as a coursing guide.

  5. Install Universal Corners plumb and level from bottom to top; each panel end provides 8" of height coverage. Panels on adjacent walls must align to the same coursing.

  6. Apply Versetta Stone Finishing Adhesive for partial panels without nail flanges: secure metal flashing or expanded lath every 16" to framing first; apply adhesive dabs (quarter-sized, min. 1/2" tall) every 3–4"; shim during cure.

  7. Maintain minimum clearances: 4" above soil grade, 2" above pavement or concrete surfaces.

  8. For interior applications (fireplaces, accent walls, backsplashes): Versetta Stone meets ASTM E 84 Class A — Flame Spread 0, Smoke Developed 0.

  9. DO NOT use salt, de-icing chemicals, acid washes, metal-bristled brushes, or high-pressure sprayers on installed panels.

  10. Installations above 30 feet require review and approval by a licensed design professional per ESR-2859.
