What is the difference between Highland and Oregon Pride vinyl siding?

Highland is .042 in. thick on five of six profiles, has a satin wood-grain finish, adds Triple 3 and Double 5 Dutchlap, and is rated to 160 mph. Oregon Pride is .040 in. with a painted cedar texture, has four profiles including a Double 5 vertical, and is rated to 140 mph on its horizontal panels.

What Dutch lap profiles does Highland come in?

Two: Double 4.5 in. Dutchlap (9 in. panel, 12 ft. 1 in. long, 22 per carton) and Double 5 in. Dutchlap (10 in. panel, 12 ft. long, 20 per carton). Both are .042 in. and cover 200 sq. ft. per carton.

What is Triple 3 vinyl siding?

It is a panel that shows three narrow courses instead of two. Highland's Triple 3 has three 3.36 in. courses on a 12 ft. panel, is .040 in. thick, and carries a 155 mph windload rating.

How much does one carton of Highland siding cover?

Every Highland profile packs 200 sq. ft. (18.58 m²) per carton, which is two squares. That is 24 panels of Double 4, 22 of the Double 4.5 profiles, or 20 of the Double 5 and Triple 3 profiles.

Which Highland colours are premium?

Grenadier Green, Khaki Brown and Rockaway Grey are the three bold premium colours, offered in Double 4, Double 4.5 Dutchlap, Double 5 Dutchlap and Triple 3. The warranty guarantees premium colours against fade beyond 3 Hunter units and standard colours beyond 4.

What warranty comes with Highland vinyl siding?

A lifetime non-prorated limited warranty for the original homeowner, including colour fade coverage. Siding on property owned by corporations, condominiums and similar owners gets 50 years, prorated, and a subsequent homeowner receives prorated coverage if the transfer form is mailed within 30 days of the title transfer.

Is Highland vinyl siding approved for use in Canada?

Yes. It holds CCMC Acceptance No. 06419L and conforms to CAN/CGSB-41.24-95. Request a quote with your profile and colour.

Mitten›42 Series Vinyl Siding

Six .042 in. horizontal profiles, including two Dutch laps and Triple 3

Mitten Highland 42 Series Vinyl Siding

Name: Exterior Pro Materials
Address: Unit 5, 1235 Journey's End Cir, Newmarket, ON, L3Y 8T7, CA
Telephone: +1 (905) 836-7272

Highland is a horizontal vinyl siding line with six profiles: Double 4 in., Double 4.5 in., Double 5 in., two Dutch lap vinyl siding panels and a Triple 3 in. Five of the six are .042 in. thick with a satin, low-gloss wood-grain finish and a 160 mph windload rating. It comes in 17 colours, three of them bold premium shades.

0.042" (Triple 3: 0.040")155 to 160 mph (249 to 257 km/h) wind17 colours

Request a Quote Datasheet

WarrantyLifetime non-prorated limited warranty for the original homeowner, with colour fade guarantee; prorated for subsequent owners and for non-individual owners (50 years)

Available Colours

Grenadier Green

Bold Premium

Bold Premium(3)

Natural Standard(14)

Colours shown are approximate representations only and may appear differently on screen than the actual product. Request a physical sample before making your final decision.

About Mitten Highland 42 Series Vinyl Siding

Next to Oregon Pride, Highland is the heavier panel. Five of its six profiles are .042 in. nominal, against .040 in. for Oregon Pride, and the finish is a satin, low-gloss wood grain rather than a painted cedar texture. It is horizontal only. If you need a vertical panel, Highland does not make one.

The profiles give you three looks. Double 4 in., Double 4.5 in. and Double 5 in. are straight clapboard reveals, from tight to wide. The Double 4.5 in. and Double 5 in. Dutchlap panels are the Dutch lap vinyl siding options, with a groove along the top of each course that adds depth and suits traditional architecture. Triple 3 in. fits three 3.36 in. courses on one panel for a narrower, more detailed reveal, and it is the one profile made at .040 in. Every carton covers 200 sq. ft.

There are 17 colours. The 14 natural standard colours run in all six profiles, except Indigo, which skips the straight Double 4.5 and Double 5. The three bold premium colours, Grenadier Green, Khaki Brown and Rockaway Grey, come in Double 4, both Dutchlaps and Triple 3 only. Check the colour and profile pair before you order.

Windload ratings are 160 mph (257 km/h) for the .042 in. profiles and 155 mph (249 km/h) for Triple 3. The siding holds CCMC Acceptance No. 06419L. Panels can move up to 3/8 in. with temperature, so leave 1/4 in. at openings and channel stops (3/8 in. when installing below 40°F) and nail in the centre of the slot. Send us your elevations or take-off and we will quote panels and matching trim.

Available at Pro Materials in Newmarket, Ontario, supplying contractors, builders, and homeowners across York Region, the GTA, Simcoe County and Durham Region. All products are available on a quote basis; contact us for wholesale pricing and current availability.

Profiles & Specifications

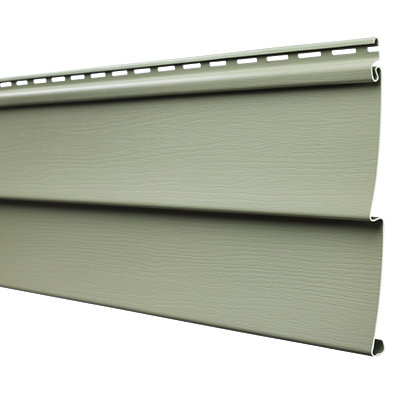

D4HDouble 4" Horizontal

Length	12'6" (3.81 m)
Height / Width	8" (20.32 cm)
Thickness	0.042" (1.07 mm)
Panels/Box	24
Coverage	200 sq. ft.
Wind Resistance	160 mph
Installation	Horizontal

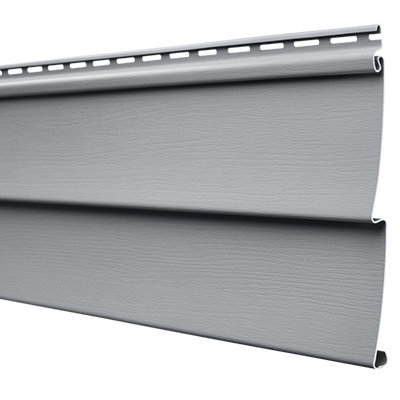

D45HDouble 4.5" Horizontal

Length	12'1" (3.68 m)
Height / Width	9" (22.86 cm)
Thickness	0.042" (1.07 mm)
Panels/Box	22
Coverage	200 sq. ft.
Wind Resistance	160 mph
Installation	Horizontal

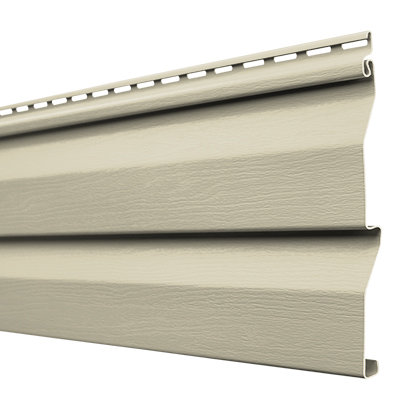

D45DLDouble 4.5" Dutchlap

Length	12'1" (3.68 m)
Height / Width	9" (22.86 cm)
Thickness	0.042" (1.07 mm)
Panels/Box	22
Coverage	200 sq. ft.
Wind Resistance	160 mph
Installation	Horizontal

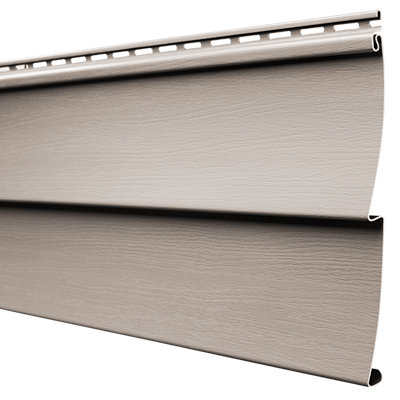

D5HDouble 5" Horizontal

Length	12' (3.66 m)
Height / Width	10" (25.4 cm)
Thickness	0.042" (1.07 mm)
Panels/Box	20
Coverage	200 sq. ft.
Wind Resistance	160 mph
Installation	Horizontal

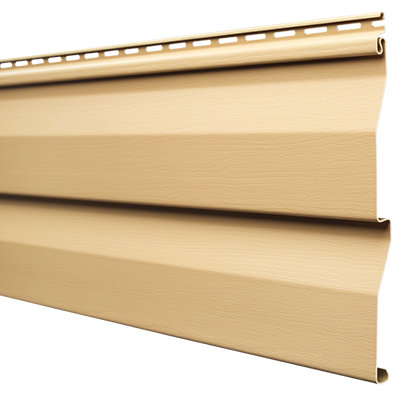

D5DLDouble 5" Dutchlap

Length	12' (3.66 m)
Height / Width	10" (25.4 cm)
Thickness	0.042" (1.07 mm)
Panels/Box	20
Coverage	200 sq. ft.
Wind Resistance	160 mph
Installation	Horizontal

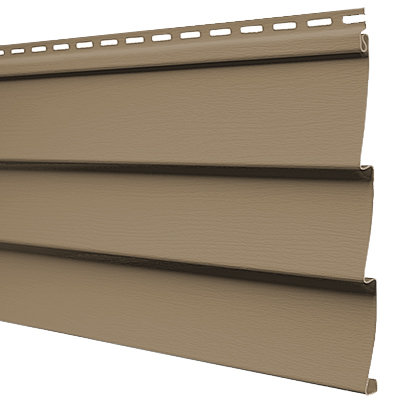

T3HTriple 3" Horizontal

Length	12' (3.66 m)
Height / Width	10" (25.4 cm)
Thickness	0.040" (1.02 mm)
Panels/Box	20
Coverage	200 sq. ft.
Wind Resistance	155 mph
Installation	Horizontal

Certifications & Testing Standards

Mitten Highland 42 Series Vinyl Siding meets or exceeds the following Canadian and international performance standards.

Test / Property	Standard	Result / Value
Impact Class 1	`CAN/CGSB-41.24-95`	≥80.1 J/m
Impact Class 2	-	≥266.9 J/m
Tensile	`ASTM D-638`	8,200 PSI
Modulus	-	370,000 PSI
Flame Spread	`ASTM E-84`	Class 1
Shrinkage	`ASTM D-1042`	3%
CCMC Acceptance No. 06419L	-	Certified
ASTM D-3679	-	Certified
UBC 14-2	-	Certified
AS/NZS 4256 Type B	-	Certified
Colours PEPA certified	-	Certified

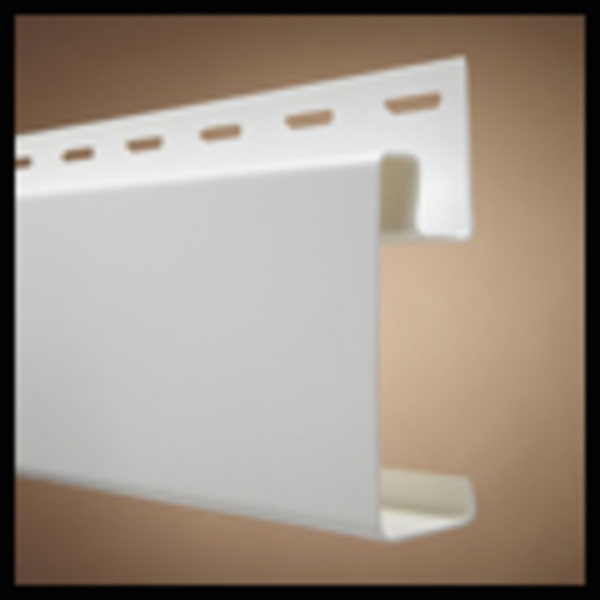

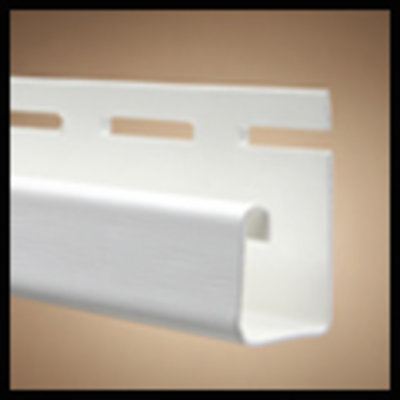

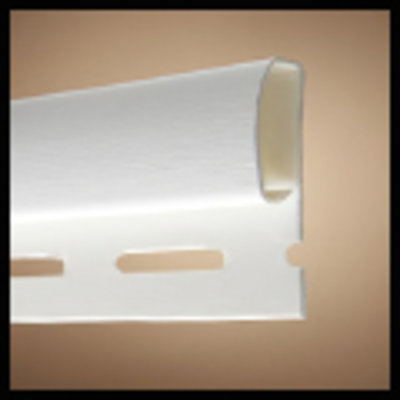

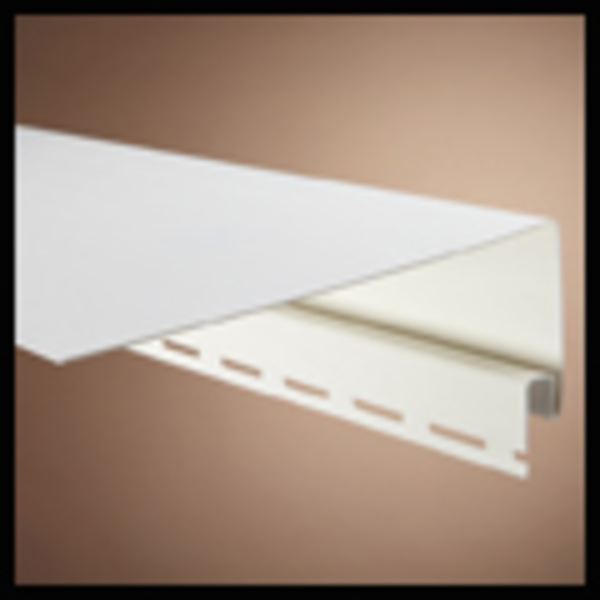

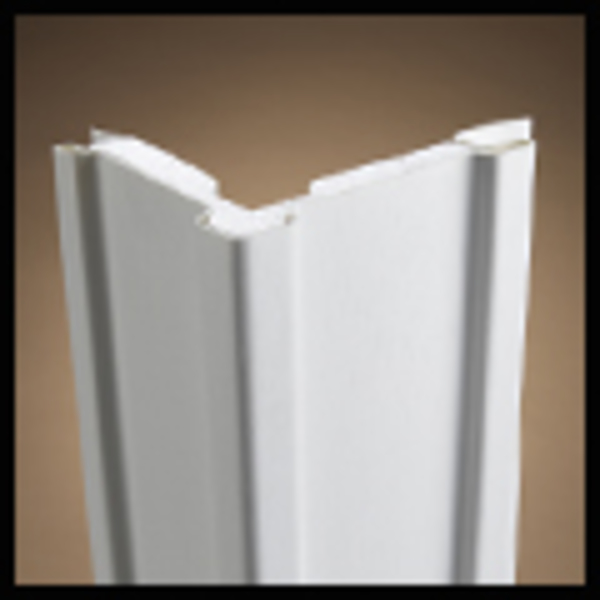

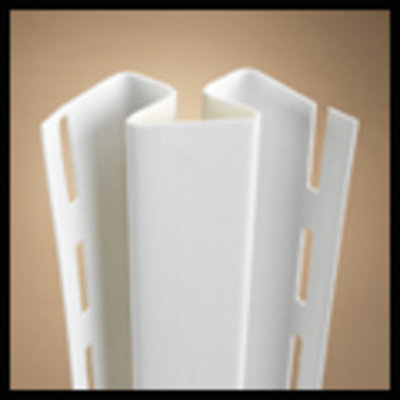

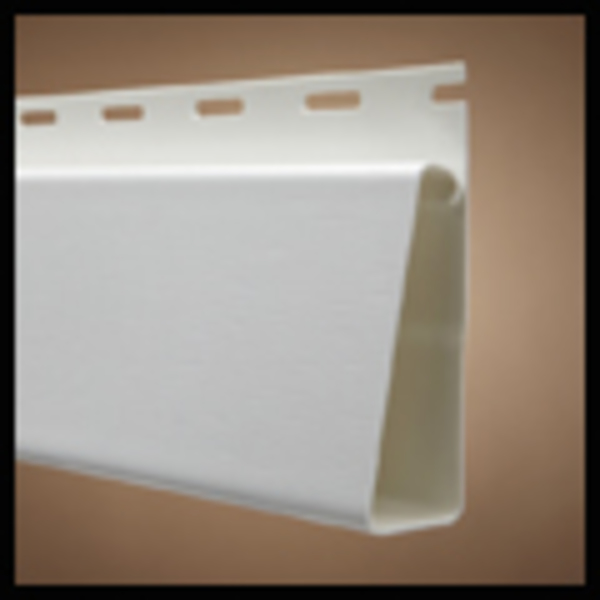

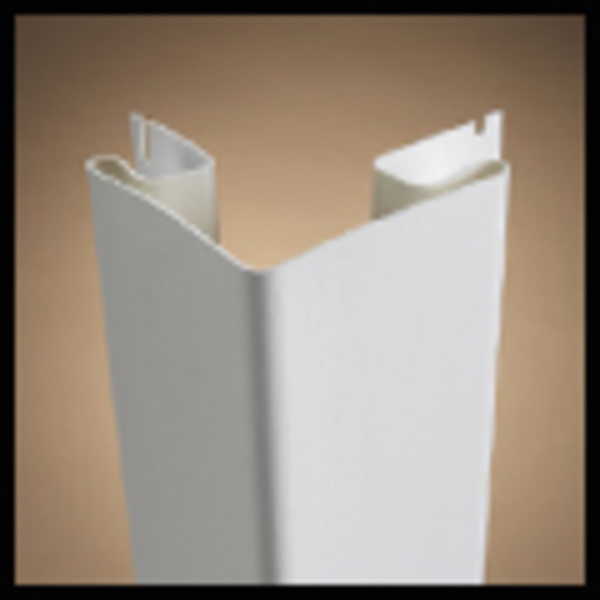

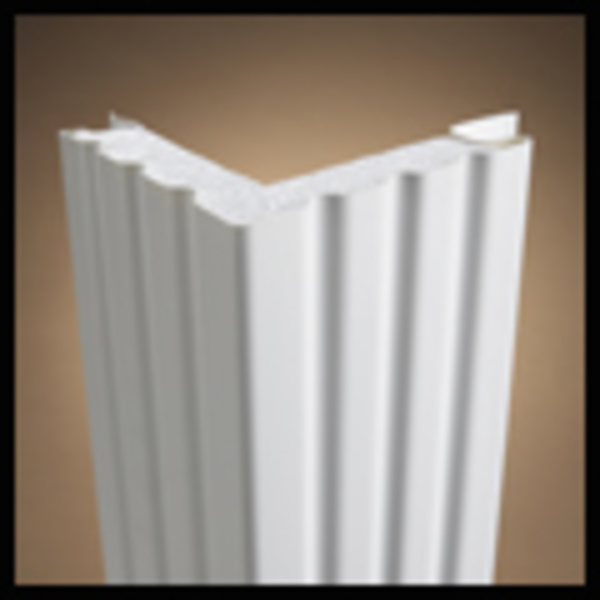

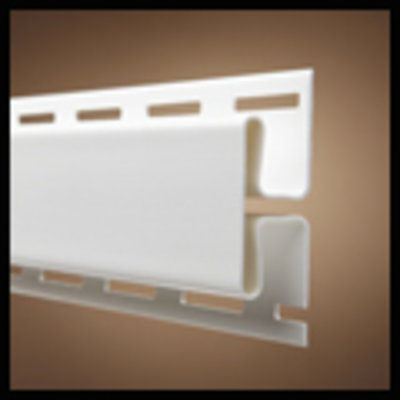

Compatible Accessories

Questions a spec sheet cannot answer

Each one opens the section of our guides that answers it for Mitten Highland 42 Series Vinyl Siding and the products beside it on the shelf.

Mitten Highland 42 Series Vinyl Siding: Frequently Asked Questions

What is the difference between Highland and Oregon Pride vinyl siding?: Highland is .042 in. thick on five of six profiles, has a satin wood-grain finish, adds Triple 3 and Double 5 Dutchlap, and is rated to 160 mph. Oregon Pride is .040 in. with a painted cedar texture, has four profiles including a Double 5 vertical, and is rated to 140 mph on its horizontal panels.
What Dutch lap profiles does Highland come in?: Two: Double 4.5 in. Dutchlap (9 in. panel, 12 ft. 1 in. long, 22 per carton) and Double 5 in. Dutchlap (10 in. panel, 12 ft. long, 20 per carton). Both are .042 in. and cover 200 sq. ft. per carton.
What is Triple 3 vinyl siding?: It is a panel that shows three narrow courses instead of two. Highland's Triple 3 has three 3.36 in. courses on a 12 ft. panel, is .040 in. thick, and carries a 155 mph windload rating.
How much does one carton of Highland siding cover?: Every Highland profile packs 200 sq. ft. (18.58 m²) per carton, which is two squares. That is 24 panels of Double 4, 22 of the Double 4.5 profiles, or 20 of the Double 5 and Triple 3 profiles.
Which Highland colours are premium?: Grenadier Green, Khaki Brown and Rockaway Grey are the three bold premium colours, offered in Double 4, Double 4.5 Dutchlap, Double 5 Dutchlap and Triple 3. The warranty guarantees premium colours against fade beyond 3 Hunter units and standard colours beyond 4.
What warranty comes with Highland vinyl siding?: A lifetime non-prorated limited warranty for the original homeowner, including colour fade coverage. Siding on property owned by corporations, condominiums and similar owners gets 50 years, prorated, and a subsequent homeowner receives prorated coverage if the transfer form is mailed within 30 days of the title transfer.
Is Highland vinyl siding approved for use in Canada?: Yes. It holds CCMC Acceptance No. 06419L and conforms to CAN/CGSB-41.24-95. Request a quote with your profile and colour.
