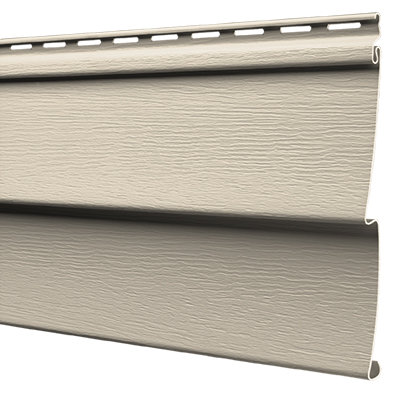

D4HDouble 4" Horizontal
| Length | 12'6" (3.81 m) |
| Height / Width | 8" (20.32 cm) |
| Thickness | 0.040" (1.02 mm) |
| Panels/Box | 24 |
| Coverage | 200 sq. ft. (18.58 m²) |
| Wind Resistance | 140 mph |
| Installation | Horizontal |
Mitten›40 Series Vinyl Siding
Mitten Oregon Pride 40 Series Vinyl Siding
Mitten Oregon Pride 40 Series is a versatile vinyl siding system available in four distinct profiles and 14 carefully curated colours. CCMC-accepted and PEPA-certified, it delivers 140 mph wind resistance with a lifetime non-prorated transferable warranty and a colour fade guarantee.
0.040" (1.02 mm)140 mph / 225 km/h wind14 colours
Available Colours
14
Frost
Natural Standard
Natural Standard(14)
Colours shown are approximate representations only and may appear differently on screen than the actual product. Request a physical sample before making your final decision.
Profiles & Specifications

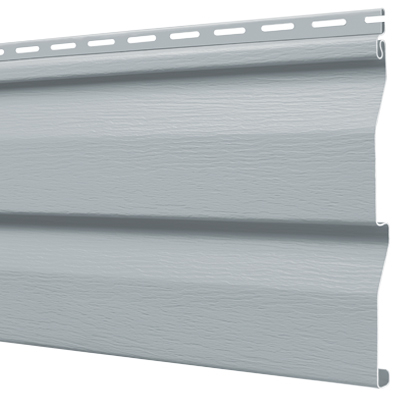

D4DLDouble 4" Dutchlap
| Length | 12'6" (3.81 m) |
| Height / Width | 8" (20.32 cm) |
| Thickness | 0.040" (1.02 mm) |
| Panels/Box | 24 |
| Coverage | 200 sq. ft. (18.58 m²) |
| Wind Resistance | 140 mph |
| Installation | Horizontal |

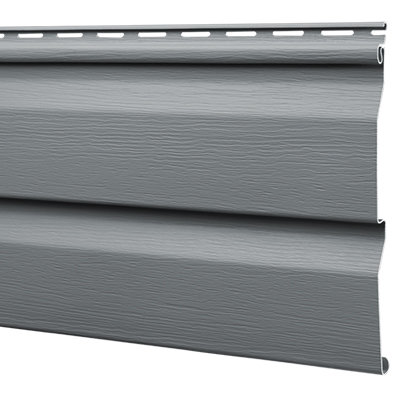

D45DLDouble 4.5" Dutchlap
| Length | 12'1" (3.68 m) |
| Height / Width | 9" (22.86 cm) |
| Thickness | 0.040" (1.02 mm) |
| Panels/Box | 22 |
| Coverage | 200 sq. ft. (18.58 m²) |
| Wind Resistance | 140 mph |
| Installation | Horizontal |
D5VDouble 5" Vertical
| Length | 12' (3.66 m) |
| Height / Width | 10" (25.4 cm) |
| Thickness | 0.040" (1.02 mm) |
| Panels/Box | 20 |
| Coverage | 200 sq. ft. (18.58 m²) |
| Wind Resistance | N/A |
| Installation | Vertical |
Available in Frost, Bone, Stratus, Brownstone, Hearthstone only
Certifications & Testing Standards
Mitten Oregon Pride 40 Series Vinyl Siding meets or exceeds the following Canadian and international performance standards.
| Test / Property | Standard | Result / Value |
|---|---|---|
Impact Class 1 | CAN/CGSB-41.24-95 | ≥80.1 J/m |
Impact Class 2 | - | ≥266.9 J/m |
Tensile | ASTM D-638 | 8,200 PSI |
Modulus | - | 370,000 PSI |
Flame Spread | ASTM E-84 | Class 1 |
Shrinkage | ASTM D-1042 | ≤3% |
CCMC Acceptance No. 06419L | - | Certified |
ASTM D-3679 | - | Certified |
UBC 14-2 | - | Certified |
AS/NZS 4256 Type B | - | Certified |
PEPA Certified | - | Certified |
Wind Load | - | 140 mph / 225 km/h (D4H / D4DL / D4.5DL) |

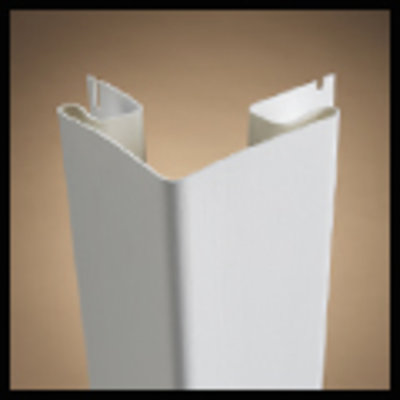

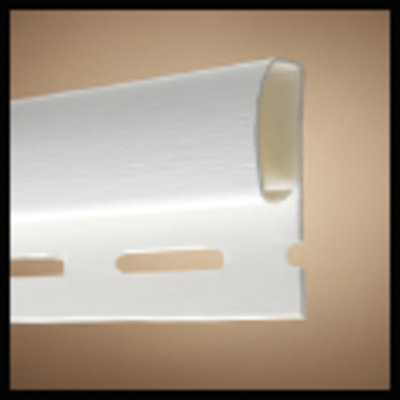

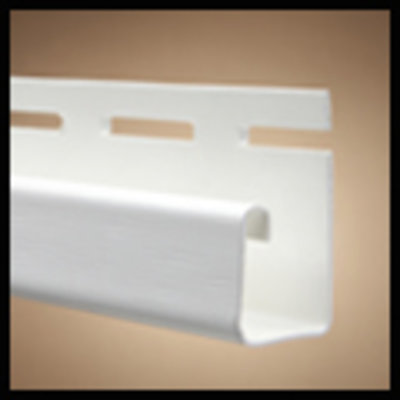

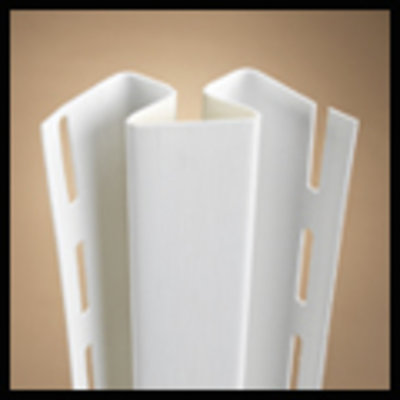

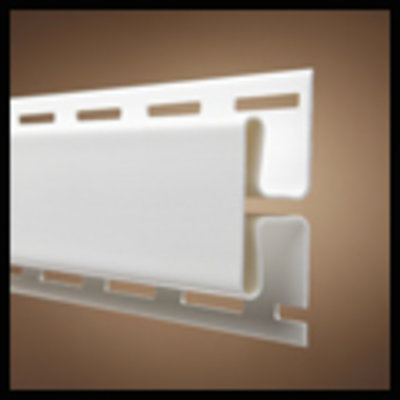

Compatible Accessories
