Imperial Kool-Ray Aluminum Railings offer a maintenance-free, code-compliant solution for deck, porch, balcony, and stair guarding. Available in Monarch Ready-to-Assemble (baluster), Monarch for Glass, and Vision Glass systems, these powder-coated aluminum railings never rust, warp, or require painting. Heights from 32" to 42", max span 72", six colours, and backed by stamped engineering drawings meeting NBC 2010 and OBC 2012.

6 colours

Request a Quote Datasheet

Warranty20-year materials · 5-year paint · 2-year plastic

Available Colours

White

Aluminum

Aluminum(6)

Colours shown are approximate representations only and may appear differently on screen than the actual product. Request a physical sample before making your final decision.

About Imperial Aluminum Railings

Imperial Kool-Ray Aluminum Railings are engineered for safety and designed for straightforward installation on decks, porches, balconies, walkways, and stairs. Stronger and more durable than wood or vinyl, these powder-coated aluminum railings are completely maintenance free — no painting or staining required, and they never rust, warp, crack, or fade. Three systems are available: the Monarch Ready-to-Assemble Kit with snap-in balusters (36" and 42" heights, kit lengths 46" to 72"), the Monarch for Glass Kit using 5mm tempered glass panels, and the Vision Glass Railing for a clean open look. All systems meet the National Building Code of Canada (NBC 2010) and the Ontario Building Code (OBC 2012), backed by stamped engineering drawings. Six colours available: White, Black, Warm Beige, Clay, Grey, and Commercial Brown. Warranted 20 years on materials, 5 years on paint, 2 years on plastic components.

Available at Pro Materials in Newmarket, Ontario, supplying contractors, builders, and homeowners across York Region, the GTA, and Ontario. All products are available on a quote basis; contact us for wholesale pricing and current availability.

Profiles & Specifications

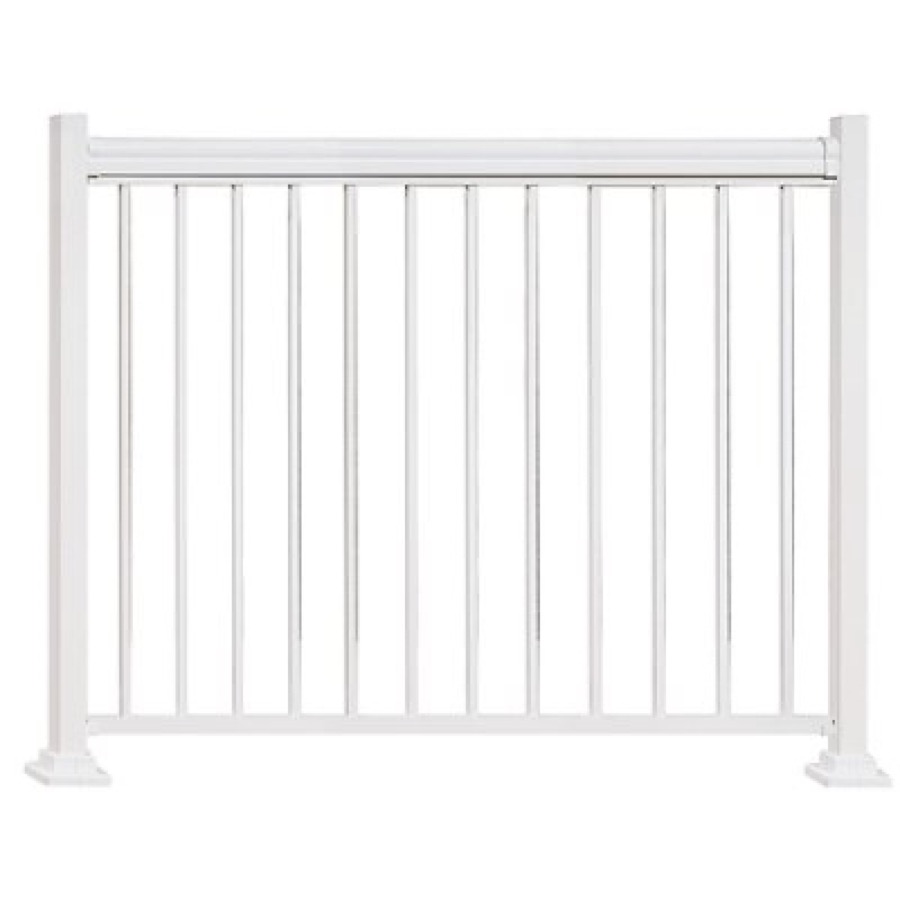

MONARCH-RTAMonarch Ready-to-Assemble Kit

Complete snap-in baluster railing system for decks, porches, balconies, and walkways. Snap-in spindles require no drilling for assembly. Available heights 36" and 42"; kit lengths 46", 59", and 72". Colours: White and Black.

Heights	36" (91.4 cm) · 42" (106.7 cm)
Kit Lengths	46" · 59" · 72" (max span 72")
Post Sizes	2"×2" · 3"×3"
Spindle	5/8"×5/8" snap-in (3-7/8" max opening)
Colours	White · Black
Accessories	Post ball cap · Angular adapter · Gate kit (48"×59")
Warranty	20 yr materials · 5 yr paint · 2 yr plastic

MONARCH-GLASSMonarch Kit for Glass

Glass panel variant of the Monarch kit. Uses the same post and rail system with a bottom glass support track and anchor screws replacing the snap-in balusters. Compatible with 5mm tempered or heat-soaked tempered glass panels in widths from 8" to 66".

Heights	36" (91.4 cm) · 42" (106.7 cm)
Max Span	72" between posts
Glass	5mm tempered or heat-soaked tempered
Panel Widths	8" to 66" (8 lengths available)
Glass Options	Clear · Tinted Grey · Bronze
Fasteners	1/2" natural screws KR7539 (3–4 per panel)
Colours	White · Warm Beige · Clay · Black
Warranty	20 yr materials · 5 yr paint · 2 yr plastic

VISION-GLASSVision Glass Railing

Dedicated glass railing system designed for a clean, open look on decks and balconies. Available in 32", 36", and 42" heights. Glass options include Clear, Tinted Grey, and Bronze. Colours: White, Warm Beige, Clay, Black.

Heights	32" · 36" · 42"
Max Panel Height	69" MAX
Glass	Min. 5mm tempered (Clear · Tinted Grey · Bronze)
Colours	White · Warm Beige · Clay · Black
Warranty	20 yr materials · 5 yr paint · 2 yr plastic

Specifications

Available Heights & Lengths

Spec	Monarch RTA	Monarch Glass	Vision Glass
Heights	36" / 42"	36" / 42"	32" / 36" / 42"
Kit Lengths	46" / 59" / 72"	8" to 66" glass panels	—
Max Span	72" (183 cm)	72" (183 cm)	69" max panel ht

Post & Baluster Sizes

Component	Size
Post — standard	2"×2" · 3"×3"
Post — full line	2"×2" · 3"×3" · 4"×4"
Spindle	5/8"×5/8" (Monarch RTA)
Spindle styles	Straight · New-Curve · Excel
Max baluster gap	3-7/8" (9.8 cm) — code requirement
Glass thickness	5mm tempered (Monarch Glass / Vision)

New-Curve spindle style not available for 32" height railing.

Mounting & Fasteners

Surface	Detail
Wood deck	3/8"×5" lag bolts (x4 per post); 2×6 min. continuous header
Concrete	Min. 4000 PSI; 3/8"×3" RedHead LDT anchors; min. 2-1/2" embedment
Fascia / Steel	5/16"×3" Tapbolt; 3/8" hex bolt with lock washer
Post base offset	1-1/2" from edge of deck; 1/2" when adjacent to wall
Drain holes	Drill every 4" along bottom rail to prevent water pooling

Warranty Coverage

Component	Duration
Materials & manufacturing defects	20 years
Paint finish	5 years
Plastic components	2 years

Warranty valid for original consumer buyer only. All Imperial Kool-Ray components must be used — third-party substitutions void the warranty. Replacement parts provided free of charge; installation is buyer's responsibility.

Order quantities and lead times may vary. Contact us for availability.

Certifications & Testing Standards

Imperial Aluminum Railings meets or exceeds the following Canadian and international performance standards.

Test / Property	Standard	Result / Value
Meets NBC/CNRC NBCC 2010 (National Building Code of Canada) — Section 9.8.8 Guards; Section 4.1.5.14 Loads on Guards	-	Certified
Meets OBC 2012 (Ontario Building Code)	-	Certified
Stamped engineering drawings by Registered Professional Engineers: Province of New Brunswick (#M6135) and Province of Ontario (#10011846)	-	Certified
20-year warranty on materials and manufacturing defects; 5-year paint finish; 2-year plastic components	-	Certified
Will not warp, crack, fade, or rust — maintenance free, no painting or staining required	-	Certified
Gate kit available (48"×59") — meets Quebec Residential Swimming Pool Safety Act	-	Certified
Manufactured by Imperial Kool-Ray / Imperial Manufacturing Group, Richibucto NB	-	Certified
Distributed in Canada through Mitten Inc.	-	Certified

Installation Guide

STEP 1 — Position posts at the appropriate locations. Set post base 1-1/2" (3.8 cm) from the outside edge of the deck or steps; 1/2" from the outside edge when adjacent to a wall. A plastic moisture gasket is required between each post base and the deck surface.
STEP 2 — Fix the spindle fittings to the post with 4× #8-18 × 1-1/4" TEK screws (2 per side). Lower the fittings if the surface is not level — the fitting position determines the rail height.
STEP 3 — For stairways: use a stair post at the base and a mounting post at the top. Mark and confirm the spindle fitting height on each stair post before driving screws, accounting for the stair angle.
STEP 4 — Join the railing sections to the fitting system, holding the rail firmly against the post face on both sides.
STEP 5 — Fasten the top and bottom railing to each spindle fitting with 4× #8-18 × 1/2" TEK screws (1 screw per side). For 42" or higher railings, also secure each spindle to the rails with #8-18 × 1/2" TEK screws on the outside surface.
STEP 6 — Insert snap-in spindles from the center of the span outward. Use 3-7/8" (9.8 cm) spacers to maintain code-compliant baluster spacing. Cut the last spacers to fit with a hacksaw.
STEP 7 — Once all sections are aligned and adjusted, fasten each post to the deck surface using appropriate mounting anchors for your substrate (wood, concrete, or fascia — anchors not included).
STEP 8 — Snap the rivet-covers into place and seat them flush with a rubber mallet. Install base cover caps to all posts to complete the installation.
