Performance, style, versatility and protection
Kaycan Gable Vents exceed industry Net Free Ventilation Area standards. Double baffle design for wind-driven rain and snow protection. Six standard shapes: Oval (#5072), Round Top (#5082, #5087), Round (#5090, #5080, #5076), Rectangle & Square (#5084, #5085, #5068, #5077, #5089, #5070), Octagon (#5069, #5081, #5071, #5079), Half Round (#5083). Designer Series: 30" Round with Keystones (#5588), 28" Round without Keystones (#1135). Special Order Triangle vents for 4/12–12/12 pitches (#5541–#5550) — white and paintable only. Woodgrain finish. Installs on all siding types. Contact your local Kaycan representative for colour availability.

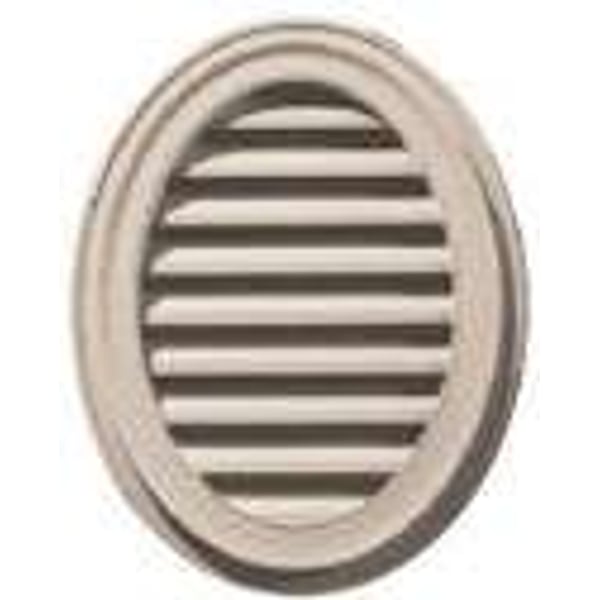

21" × 27" Oval gable vent. Locking positions: .75", 1", 1.25", 1.50". Outside dimensions: 21" × 27". Depth: 2.185". Net free area: 57 sq.in. Rough air opening: 8" × 8".
| Item # | #5072 |
| Outside Dims | 21" × 27" |
| Depth | 2.185" |
| Net Free Area | 57 sq.in. |
| Rough Opening | 8" × 8" |
| Locking Positions | .75" · 1" · 1.25" · 1.50" |

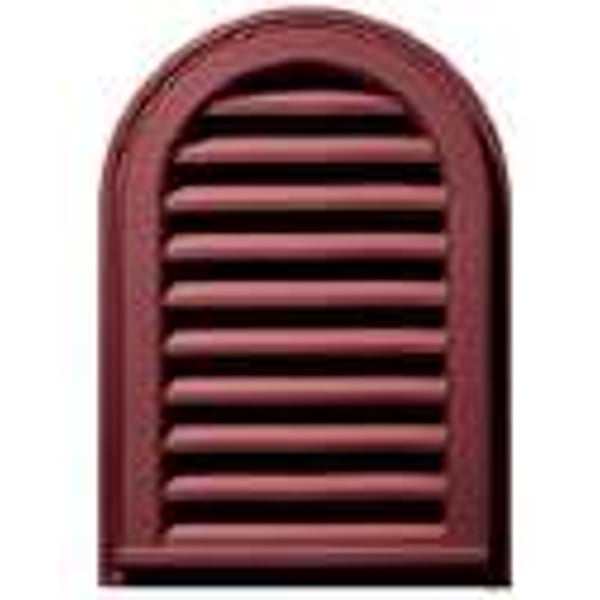

Available in two sizes: 14" × 22" (#5082) and 22" × 32" (#5087). Both feature a keystone option (K). Locking positions: .5", .75", 1", 1.25". Depth: 2.187".
| Item # | #5082 · #5087 |
| Outside Dims | #5082: 14" × 22" · #5087: 22" × 32" |
| Depth | 2.187" |
| Net Free Area | #5082: 54 sq.in. · #5087: 70 sq.in. |
| Rough Opening | #5082: 8" × 8" · #5087: 9" × 9" |
| Locking Positions | .5" · .75" · 1" · 1.25" |
| Keystone | Available (field modifications may be required) |

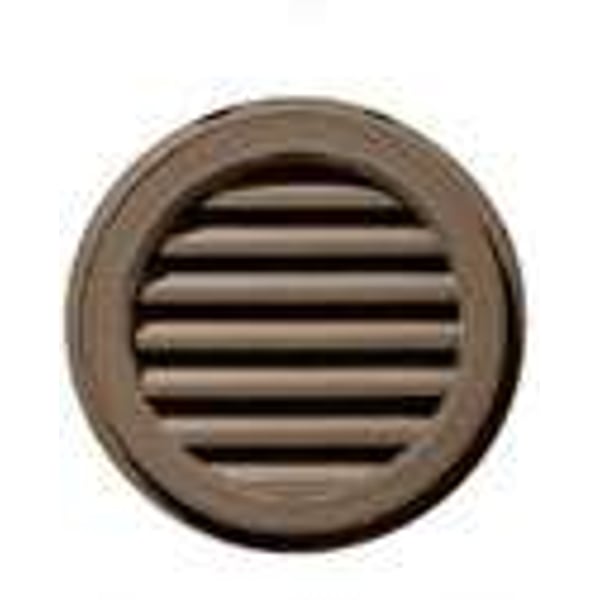

Available in three diameters: 18" (#5090), 22" (#5080), and 36" (#5076). Locking positions: .75", 1", 1.25", 1.50". All have a 2" depth.
| Item # | #5090 · #5080 · #5076 |
| Diameters | 18" · 22" · 36" |
| Depth | 2" (all sizes) |
| Net Free Area | #5090: 26 sq.in. · #5080: 54 sq.in. · #5076: 140 sq.in. |
| Rough Opening | #5090: 5"×6" · #5080: 7"×8" · #5076: 12"×12" |
| Locking Positions | .75" · 1" · 1.25" · 1.50" |

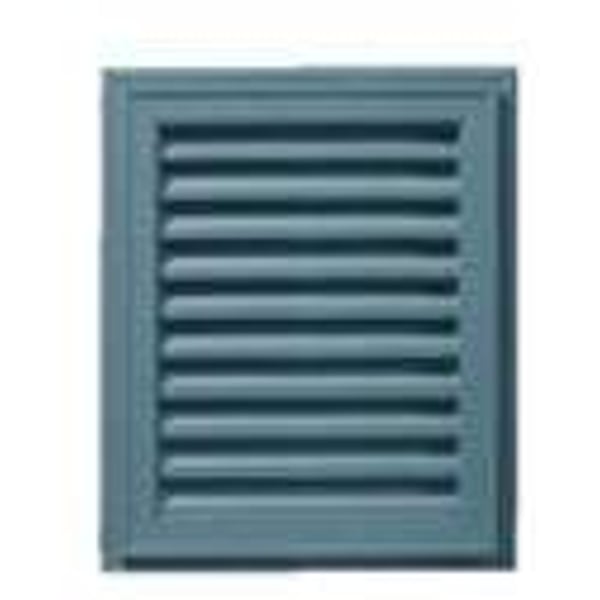

Six models: 12"×12" Square (#5085), 12"×18" Rectangle (#5084), 12"×18" Replacement (#5068), 18"×24" Style (#5077, K), 18"×24" Paintable (#5089), and 24"×30" (#5070, K). Depth ranges from 1.75" to 2.18".
| Item # | #5085 · #5084 · #5068 · #5077 · #5089 · #5070 |
| Keystone Option | #5077 and #5070 (K) — field modifications may be required |
| Locking Positions | #5085–#5084: .75", 1", 1.25", 1.50" · #5068: .5", .75", 1" · #5077–#5089–#5070: .5", .75", 1", 1.25" |

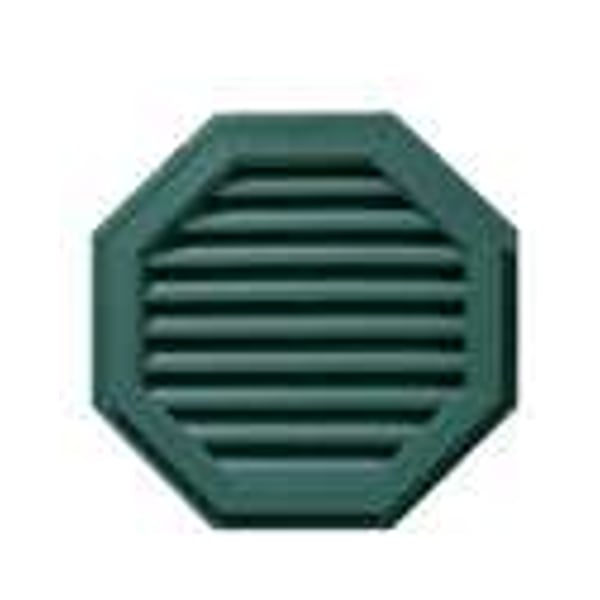

Available in four sizes: 18" (#5069), 22" (#5081, K), 27" (#5071, K), and 32" (#5079, K). All have a 2" depth. Locking positions: .75", 1", 1.25", 1.50".
| Item # | #5069 · #5081 · #5071 · #5079 |
| Sizes | 18" width · 22" width · 27" width · 32" width |
| Depth | 2" (all sizes) |
| Net Free Area | #5069: 26 sq.in. · #5081: 81 sq.in. · #5071: 110 sq.in. · #5079: 110 sq.in. |
| Rough Opening | #5069: 5"×6" · #5081: 7"×8" · #5071: 9"×9" · #5079: 10"×11" |
| Keystone | #5081, #5071, #5079 (K) — field modifications may be required |
| Locking Positions | .75" · 1" · 1.25" · 1.50" |

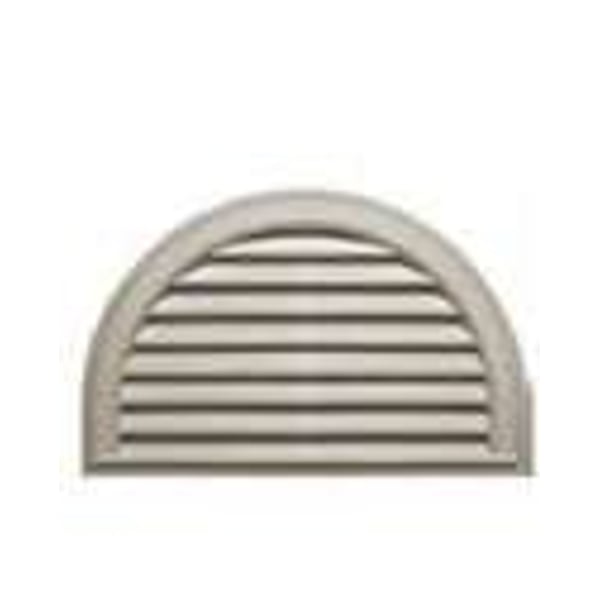

22" × 34" Half Round gable vent with keystone option (K). Locking positions: .75", 1", 1.25", 1.50". Outside dimensions: 22.1" × 34.2". Depth: 2.1". Net free area: 100 sq.in. Rough air opening: 10" × 10".
| Item # | #5083 |
| Outside Dims | 22.1" × 34.2" |
| Depth | 2.1" |
| Net Free Area | 100 sq.in. |
| Rough Opening | 10" × 10" |
| Keystone | Available (K) — field modifications may be required |
| Locking Positions | .75" · 1" · 1.25" · 1.50" |

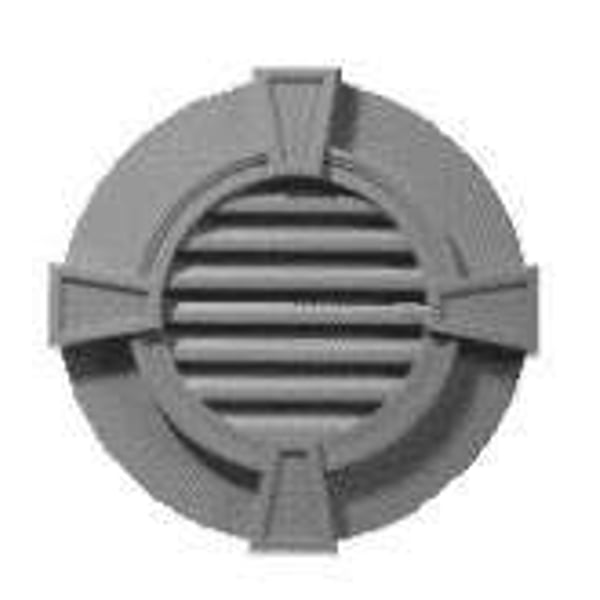

Designer Series 30" Round gable vent with decorative keystones. Item #5588. Locking positions: 0", .25", .5", .75", 1", 1.25". Outside diameter: 30". Depth: 2.156". Net free area: 50 sq.in. Rough air opening: 8" × 8".
| Item # | #5588 |
| Outside Dims | 30" Diameter |
| Depth | 2.156" |
| Net Free Area | 50 sq.in. |
| Rough Opening | 8" × 8" |
| Locking Positions | 0" · .25" · .5" · .75" · 1" · 1.25" |

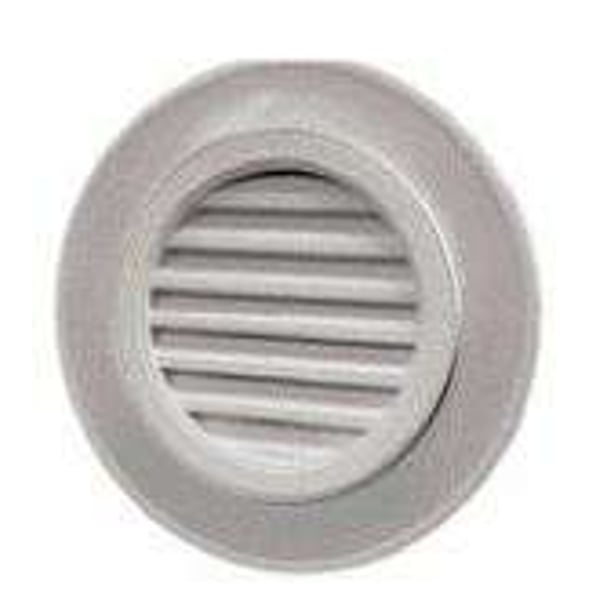

Designer Series 28" Round gable vent without keystones. Item #1135. Locking positions: 0", .25", .5", .75", 1", 1.25". Outside diameter: 28.25". Depth: 2.156". Net free area: 50 sq.in. Rough air opening: 8" × 8".
| Item # | #1135 |
| Outside Dims | 28.25" Diameter |
| Depth | 2.156" |
| Net Free Area | 50 sq.in. |
| Rough Opening | 8" × 8" |
| Locking Positions | 0" · .25" · .5" · .75" · 1" · 1.25" |
Special Order Triangle gable vents for 4/12 to 12/12 roof pitches. Ten models (#5541–#5550). Locking positions: .625", .875", 1.125", 1.375". Only available in White (01) and Paintable (00).
| Item # | #5541 – #5550 |
| Roof Pitches | 4/12, 5/12, 6/12, 7/12, 8/12, 9/12, 10/12, 11/12, 12/12 |
| Depth | 2.5" (4/12–8/12) · 2.125" (9/12–12/12) |
| Colours | White (01) and Paintable (00) only |
| Locking Positions | .625" · .875" · 1.125" · 1.375" |
| Item # | Description / Locking Positions | Outside Dimensions | Net Free Area (sq.in.) | Rough Air Opening |
|---|---|---|---|---|
| #5082 | 14" × 22" Round Top (K) — .5", .75", 1", 1.25" | 14" × 22" | 54 | 8" × 8" |
| #5087 | 22" × 32" Round Top (K) — .5", .75", 1", 1.25" | 22" × 32" | 70 | 9" × 9" |
| #5072 | 21" × 27" Oval — .75", 1", 1.25", 1.50" | 21" × 27" | 57 | 8" × 8" |
| #5069 | 18" Octagon — .75", 1", 1.25", 1.50" | 18" width | 26 | 5" × 6" |
| #5081 | 22" Octagon (K) — .75", 1", 1.25", 1.50" | 22" width | 81 | 7" × 8" |
| #5071 | 27" Octagon (K) — .75", 1", 1.25", 1.50" | 27" width | 110 | 9" × 9" |
| #5079 | 32" Octagon (K) — .75", 1", 1.25", 1.50" | 32" width | 110 | 10" × 11" |
| #5090 | 18" Round — .75", 1", 1.25", 1.50" | 18" diam. | 26 | 5" × 6" |
| #5080 | 22" Round — .75", 1", 1.25", 1.50" | 22" diam. | 54 | 7" × 8" |
| #5076 | 36" Round — .75", 1", 1.25", 1.50" | 36" diam. | 140 | 12" × 12" |
| #5083 | 22" × 34" Half Round (K) — .75", 1", 1.25", 1.50" | 22.1" × 34.2" | 100 | 10" × 10" |
| #5085 | 12" × 12" Square — .75", 1", 1.25", 1.50" | 14.2" × 14.2" | 38 | 6" × 6" |
| #5084 | 12" × 18" Rectangle — .75", 1", 1.25", 1.50" | 14" × 20" | 49 | 7" × 7" |
| #5068 | 12" × 18" Rectangle Replacement — .5", .75", 1" | 14" × 20" | 52 | 8" × 8" |
| #5077 | 18" × 24" Rectangle Style (K) — .5", .75", 1", 1.25" | 20.2" × 23.2" | 63 | 8" × 8" |
| #5089 | 18" × 24" Rectangle Paintable — .5", .75", 1", 1.25" | 20.2" × 26" | 140 | 12" × 12" |
| #5070 | 24" × 30" Rectangle (K) — .5", .75", 1", 1.25", 1.50" | 26.2" × 32.2" | 97 | 10" × 10" |
(K) = Keystone available — field modifications may have to be made.
| Item # | Description / Locking Positions | Outside Dimensions | Net Free Area (sq.in.) | Rough Air Opening |
|---|---|---|---|---|
| #5588 | Designer 30" Round with Keystones — 0", .25", .5", .75", 1", 1.25" | 30" Diam. | 50 | 8" × 8" |
| #1135 | Designer 28" Round without Keystones — 0", .25", .5", .75", 1", 1.25" | 28.25" Diam. | 50 | 8" × 8" |
Designer Series depth: 2.156".
| Item # | Description / Locking Positions | Roof Pitch | Outside Dimensions | Net Free Area / Rough Opening |
|---|---|---|---|---|
| #5541 | 14-1/2" × 74" Triangle | 4/12 | 14.5" × 74" | 56 sq.in. / 8" × 7" |
| #5542 | 17" × 70-1/2" Triangle | 5/12 | 14.5" × 74" | 56 sq.in. / 8" × 7" |
| #5543 | 18" × 72-1/2" Triangle | 6/12 | 14.5" × 74" | 56 sq.in. / 8" × 7" |
| #5544 | 20-1/2" × 70-1/2" Triangle | 7/12 | 14.5" × 74" | 56 sq.in. / 8" × 7" |
| #5545 | 21" × 62-1/2" Triangle | 8/12 | 14.5" × 74" | 56 sq.in. / 8" × 7" |
| #5546 | 23" × 62" Triangle | 9/12 | 23.1" × 61.8" | 89 sq.in. / 10" × 10" |
| #5547 | 23" × 56" Triangle | 10/12 | 23.4" × 56" | 77 sq.in. / 9" × 9" |
| #5550 | 26" × 56" Triangle | 11/12 | 25.8" × 56.3" | 96 sq.in. / 10" × 10" |
| #5548 | 26" × 52" Triangle | 12/12 | 26" × 52" | 88 sq.in. / 10" × 10" |
| #5549 | 7" × 34" Triangle | 12/12 | 17" × 34.1" | 19 sq.in. / 4" × 5" |
Special Order Triangle Gable Vents are only available in White (01) and Paintable (00). Locking positions for all Triangle vents: .625", .875", 1.125", 1.375".
Order quantities and lead times may vary. Contact us for availability.
More Net Free Ventilation Area than industry standards — provides optimal attic and gable ventilation.
Double baffle design provides added protection against wind-driven rain and snow.
Can be installed on all types of siding.
Easy-to-use in a decorative application if a functioning vent is not required.
(K) = Keystone available on select models; field modifications may have to be made.
Special Order Triangle Gable Vents (#5541–#5550) are only available in White (01) and Paintable (00).
Contact your local Kaycan representative for colour availability — not all gable vents are available in every colour.
