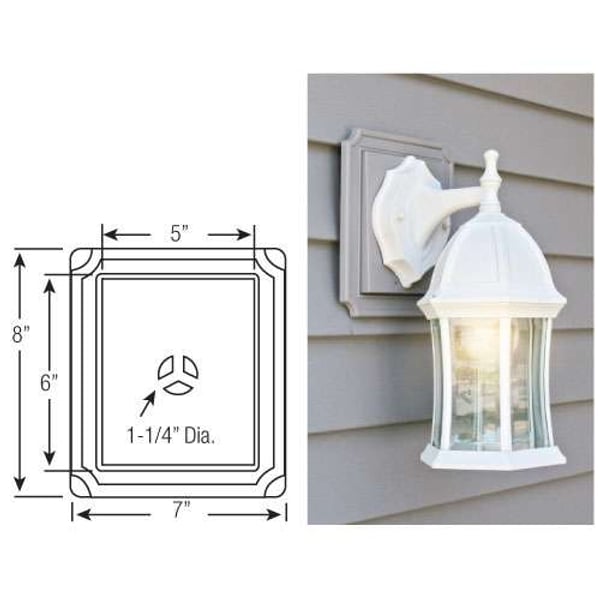

original-mount-masterOriginal Mount Master
Scalloped: #1128 · Square: #1118. 10 pcs/box.
| Item # | #1128 (Scalloped) · #1118 (Square) |
| pcs/Box | 10 |
| Locking Positions | 0.75" · 1.00" · 1.25" |
Kaycan›Mount Blocks & Utility Vents
The industry standard for mounting all exterior fixtures on any surface
Mount Blocks & Utility Vents
Kaycan Mount Blocks & Utility Vents — the industry standard for mounting exterior fixtures on any siding surface. 15 standard mount block models including Original Mount Master, Jumbo Mount, Recessed Jumbo, Meter Block, and more. Specialty electrical blocks and blocks for composite and insulated siding. Utility vents including 4", 6", and 8" Hooded Vents, Master Exhaust Vent, Master Intake/Exhaust Vent, and Foundation Master vents. Available in all Kaycan siding colours. Request a quote for special orders.
Profiles & Specifications

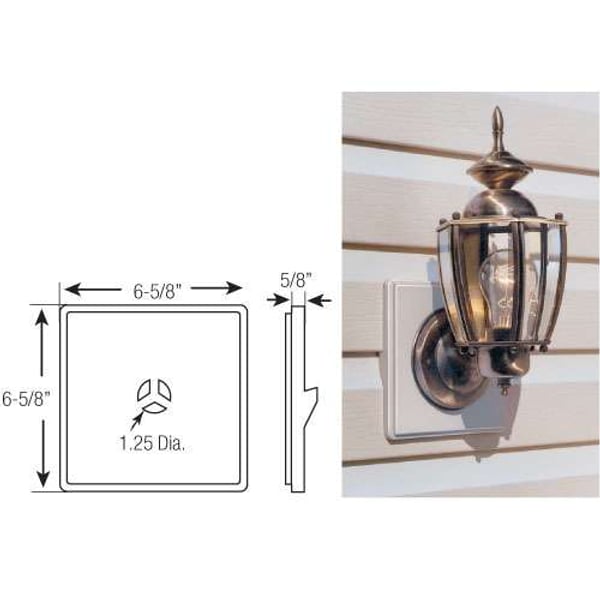

surface-block-dutch-lapSurface Block – Dutch Lap
#1122. 10 pcs/box. Special Order.
| Item # | #1122 |
| pcs/Box | 10 |
| Notes | Special Order |

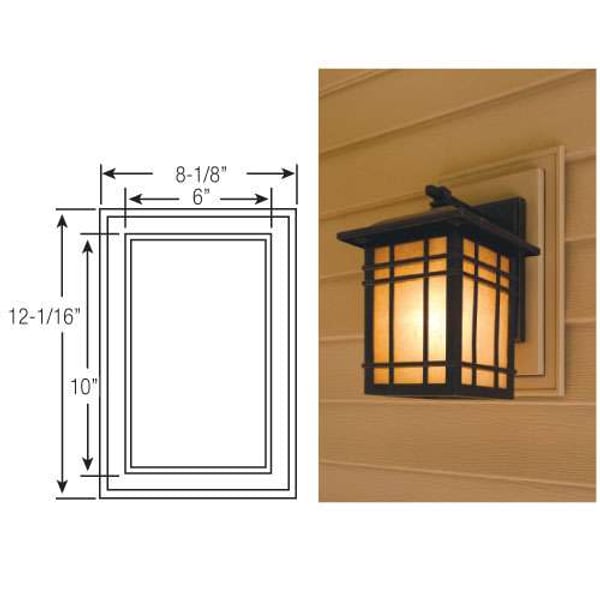

jumbo-mountJumbo Mount
#1125. 10 pcs/box.
| Item # | #1125 |
| pcs/Box | 10 |
| Locking Positions | 0.75" · 1.00" · 1.25" |

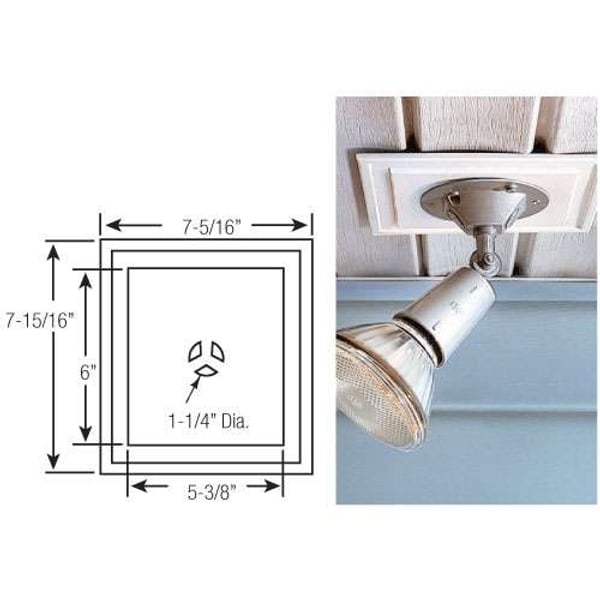

slim-line-mountSlim Line Mount
#1127. 10 pcs/box.
| Item # | #1127 |
| pcs/Box | 10 |
| Locking Positions | 0.50" · 0.75" |

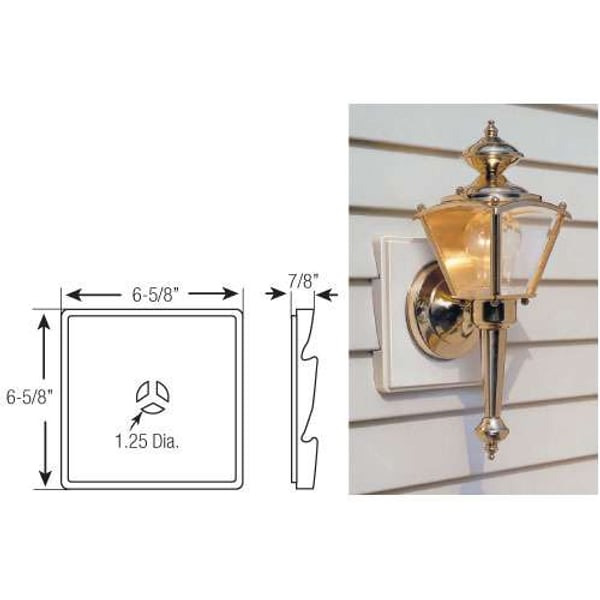

surface-block-triple-3Surface Block – Triple 3"
#1123. 10 pcs/box. Special Order.
| Item # | #1123 |
| pcs/Box | 10 |
| Notes | Special Order |

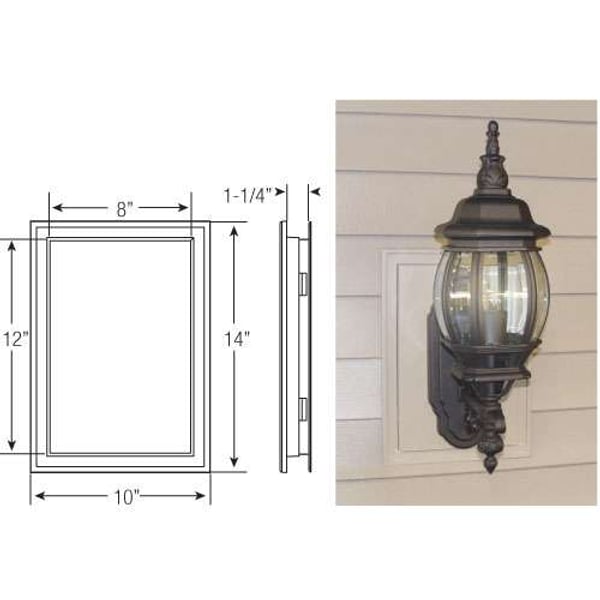

super-jumbo-mountSuper Jumbo Mount
#1134. 1 pc/box.
| Item # | #1134 |
| pcs/Box | 1 |
| Locking Positions | 0.75" · 1.00" · 1.25" |

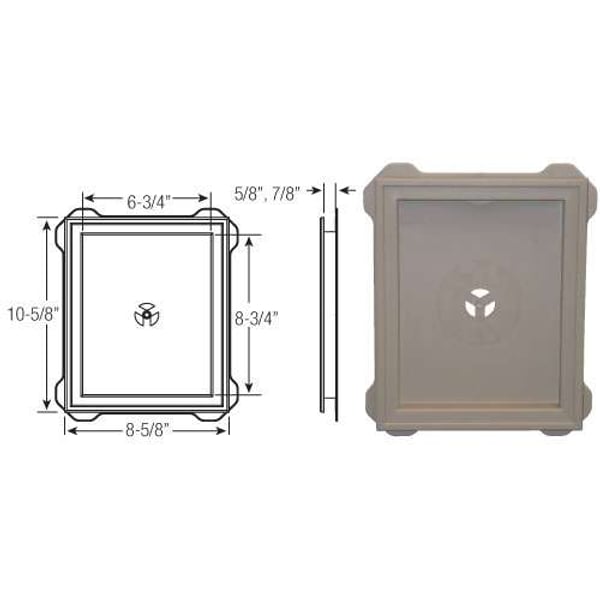

large-recessed-mountLarge Recessed Mount
#1143. 5 pcs/box.
| Item # | #1143 |
| pcs/Box | 5 |
| Locking Positions | 0.625" · 0.875" |

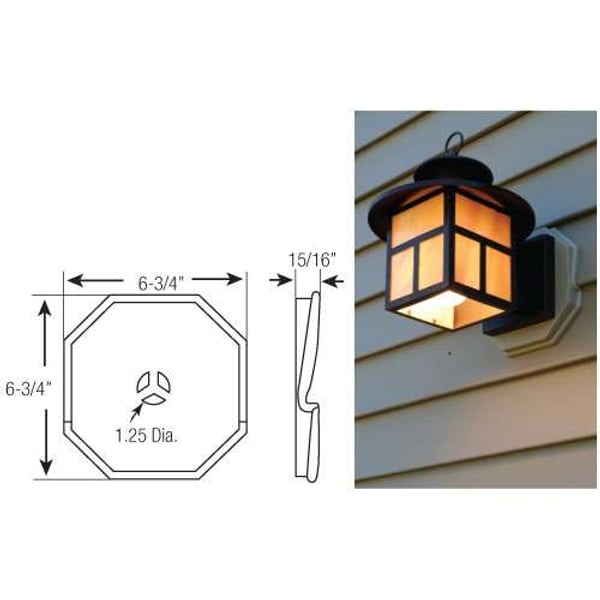

surface-master-octagonSurface Master – Octagon 4"–10"
#1121. 10 pcs/box. Special Order.
| Item # | #1121 |
| pcs/Box | 10 |
| Notes | Special Order |

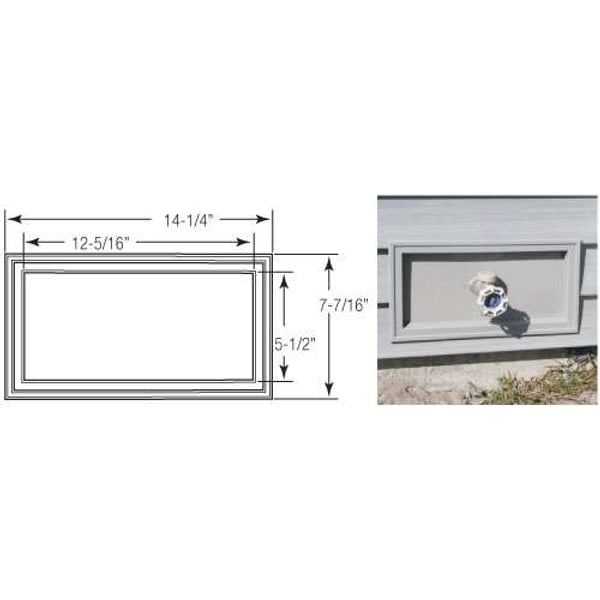

recessed-jumbo-mountRecessed Jumbo Mount
#1142. 10 pcs/box.
| Item # | #1142 |
| pcs/Box | 10 |
| Locking Positions | 0.625" · 0.875" |

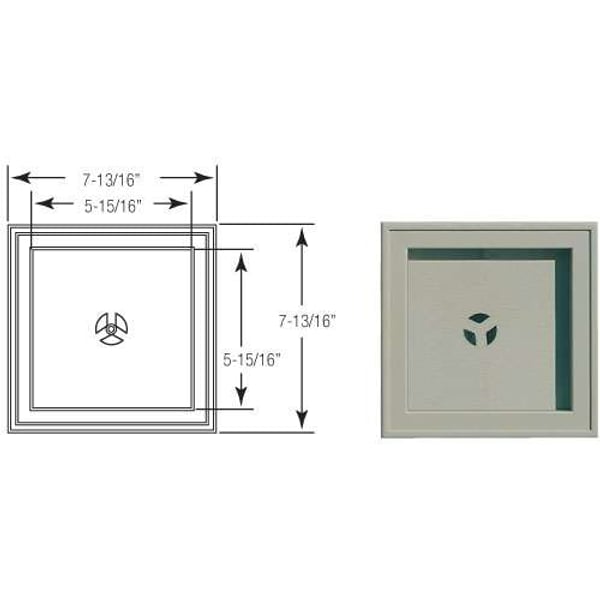

recessed-square-mountRecessed Square Mount
#1147. 10 pcs/box.
| Item # | #1147 |
| pcs/Box | 10 |
| Locking Positions | 0.625" · 0.875" |

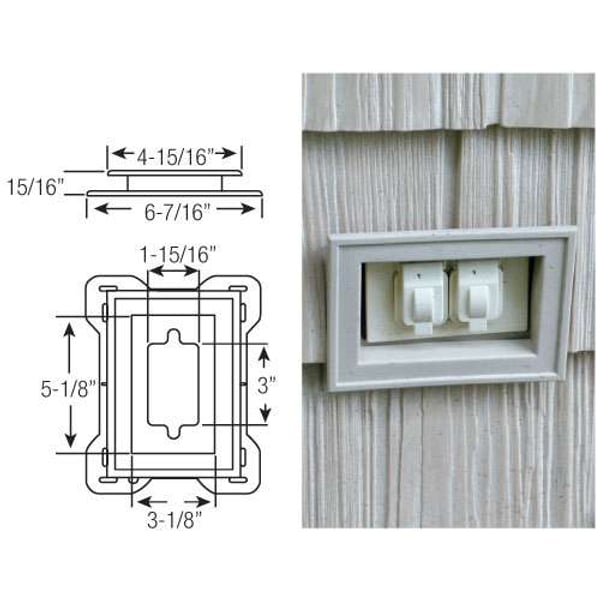

recessed-mini-mountRecessed Mini Mount
#1126. 10 pcs/box.
| Item # | #1126 |
| pcs/Box | 10 |
| Locking Positions | 0.75" · 1.00" · 1.25" |

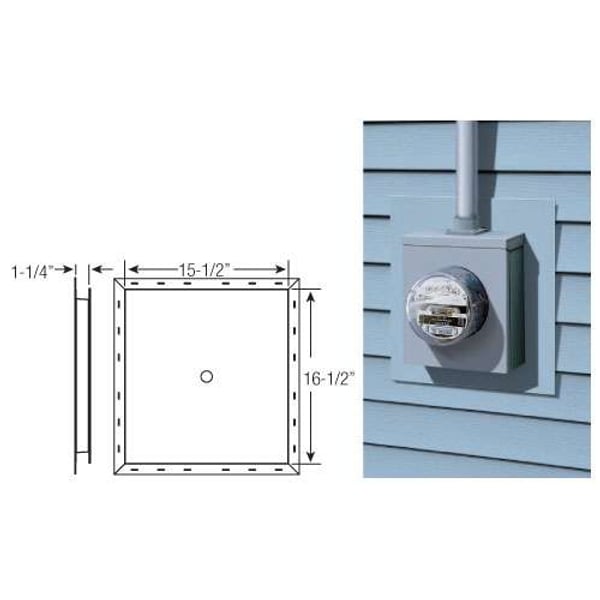

meter-blockMeter Block
#5625. 1 pc/box.
| Item # | #5625 |
| pcs/Box | 1 |

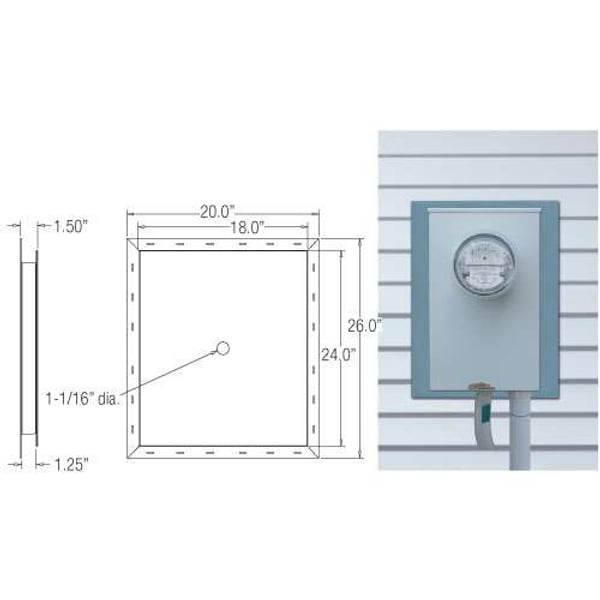

jumbo-meter-blockJumbo Meter Block
#5623. 1 pc/box.
| Item # | #5623 |
| pcs/Box | 1 |

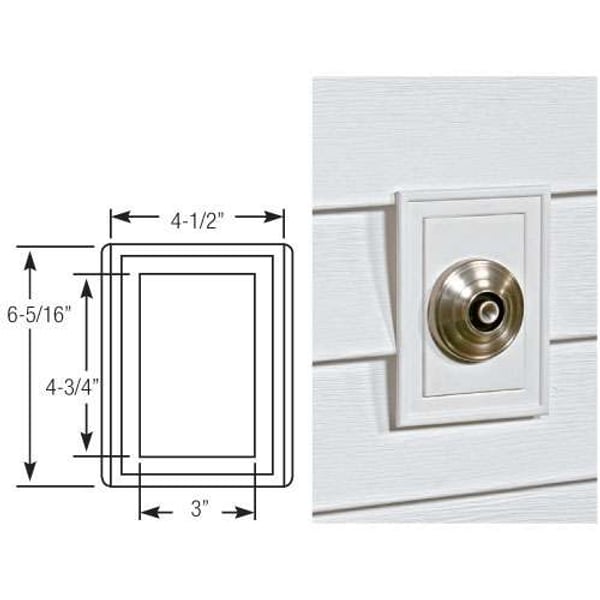

mini-mountMini Mount
#1116. 1 pc/box.
| Item # | #1116 |
| pcs/Box | 1 |
| Locking Positions | 0.50" · 0.85" |

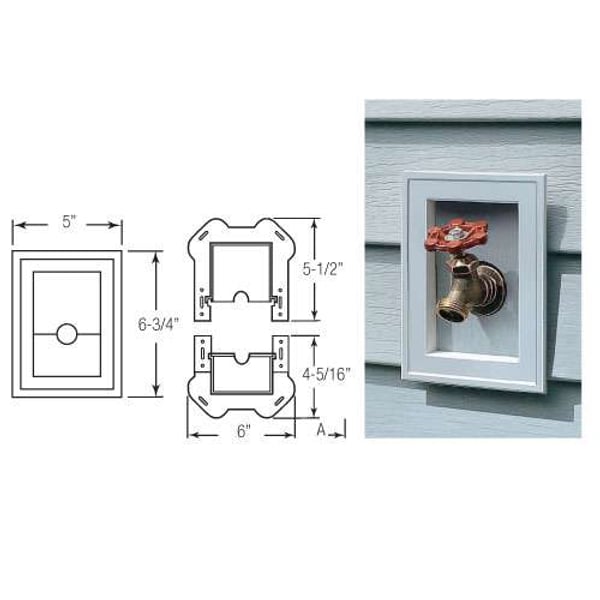

split-block-mini-mountSplit Block Mini-Mount
#1148. 10 pcs/box.
| Item # | #1148 |
| pcs/Box | 10 |
| Locking Positions | 0.75" · 1.00" · 1.25" |

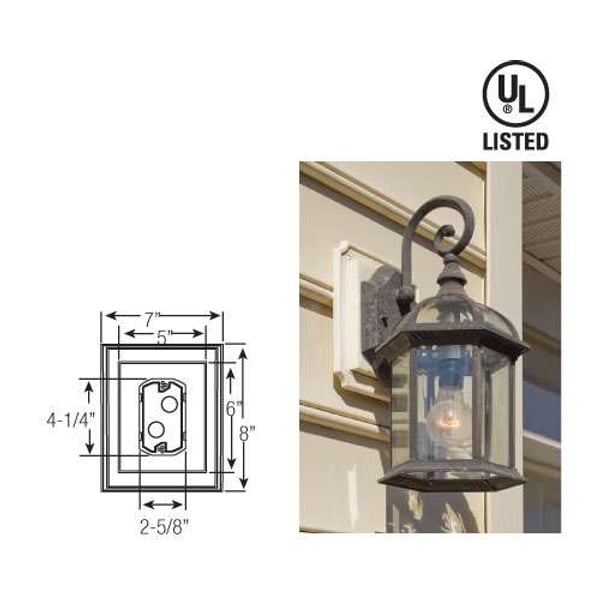

electrical-blockElectrical Block
#5626. 2 pcs/box. Special Order.
| Item # | #5626 |
| pcs/Box | 2 |
| Locking Positions | 0.875" · 1.125" · 1.375" · 1.625" |
| Notes | Special Order |

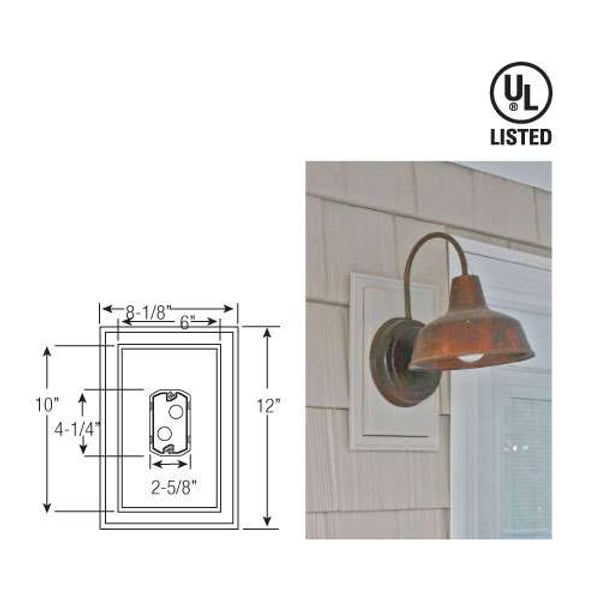

jumbo-electrical-blockJumbo Electrical Block – ed*
#5624. 2 pcs/box. Special Order.
| Item # | #5624 |
| pcs/Box | 2 |
| Locking Positions | 0.875" · 1.125" · 1.375" · 1.625" |
| Notes | Special Order |
jumbo-electrical-block-offsetJumbo Electrical Block – Offset
#5622. 10 pcs/box. Special Order.
| Item # | #5622 |
| pcs/Box | 10 |
| Locking Positions | 0.875" · 1.125" · 1.375" · 1.625" |
| Notes | Special Order |

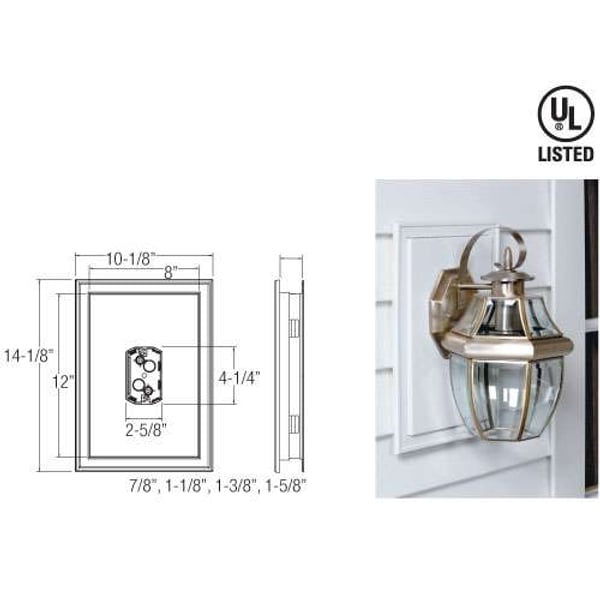

super-jumbo-electrical-blockSuper Jumbo Electrical Block
#5630. 2 pcs/box. Special Order.
| Item # | #5630 |
| pcs/Box | 2 |
| Locking Positions | 7/8" · 1-1/8" · 1-3/8" · 1-5/8" |
| Notes | Special Order |

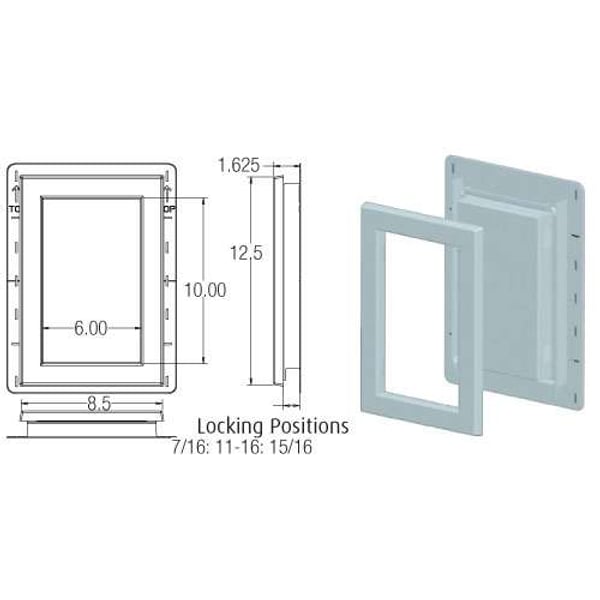

jumbo-composite-sidingJumbo for Water Management and Composite Siding
#5686. 10 pcs/box. Special Order.
| Item # | #5686 |
| pcs/Box | 10 |
| Locking Positions | 7/16" · 11/16" · 15/16" |
| Notes | Special Order |

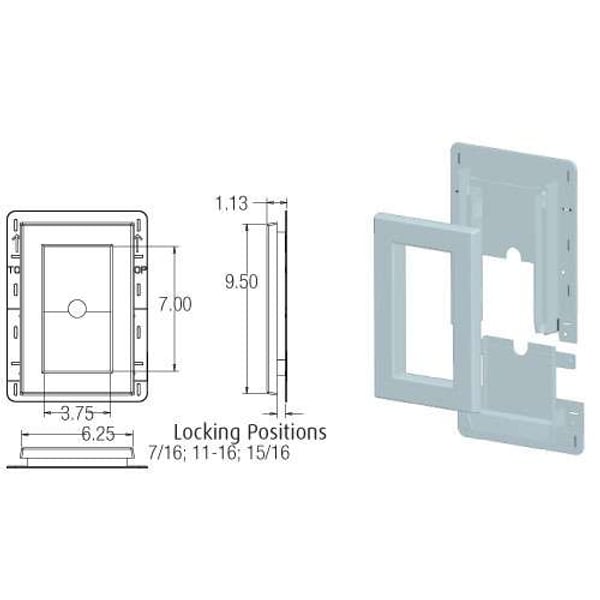

split-block-composite-sidingSplit Block for Water Management and Composite Siding
#5682. 10 pcs/box. Special Order.
| Item # | #5682 |
| pcs/Box | 10 |
| Locking Positions | 7/16" · 11/16" · 15/16" |
| Notes | Special Order |

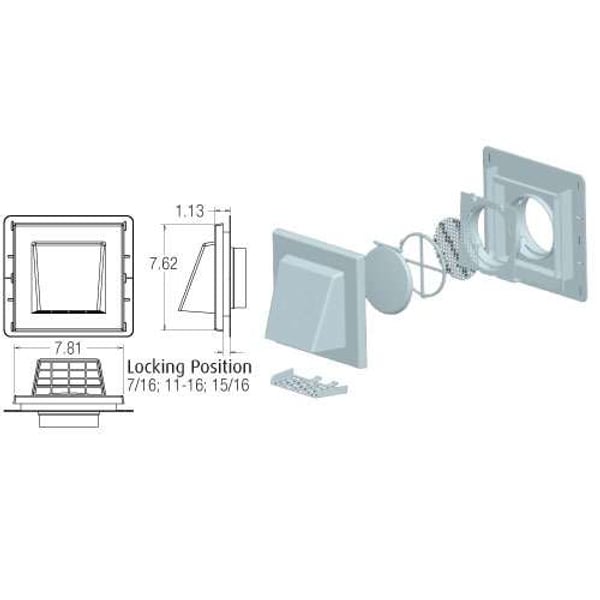

vent-4in-hooded-composite4" Hooded Vent for Water Management and Composite Siding
#5683. 1 pc/box. Special Order.
| Item # | #5683 |
| pcs/Box | 1 |
| Locking Positions | 7/16" · 11/16" · 15/16" |
| Notes | Special Order |

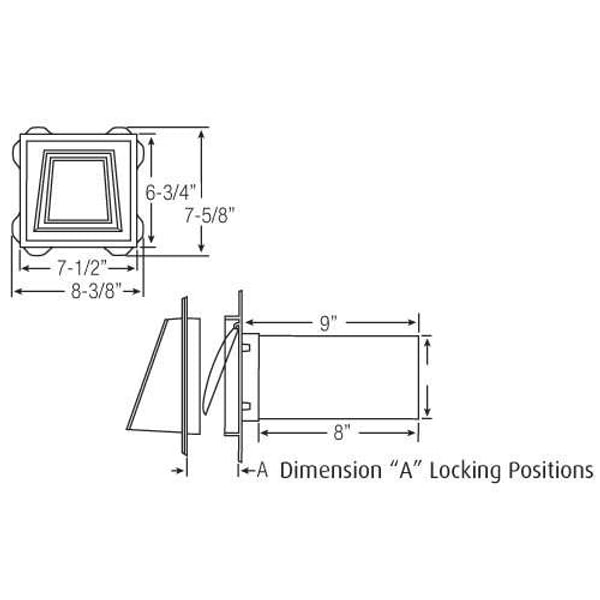

vent-4in-hooded-insulated4" Hooded Vent – For Insulated Siding
Concealed exhaust flap. Includes 8" long aluminum tube (4" diam.). 12 sq.ft. net free area. #5684. 1 pc/box. Special Order.
| Item # | #5684 |
| pcs/Box | 1 |
| Locking Positions | 0.75" · 1.00" · 1.25" |
| Net Free Area | 12 sq.ft. |
| Notes | Special Order · Concealed exhaust flap · Incl. 8" long aluminum tube (4" diam.) |

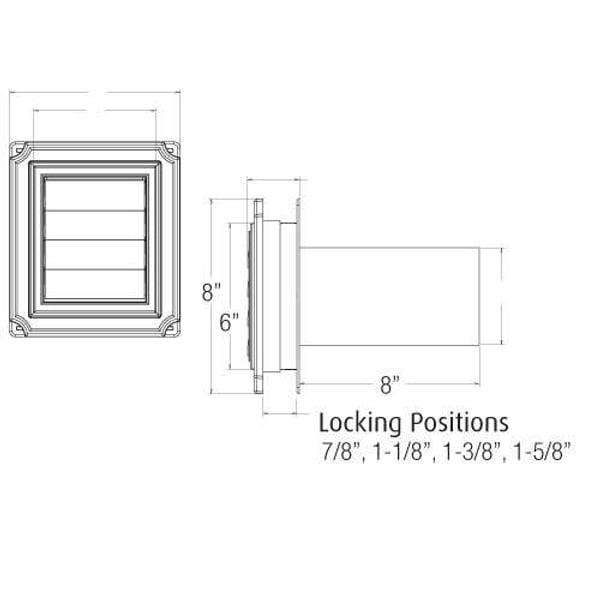

vent-master-exhaust-insulatedMaster Exhaust Vent – For Insulated Siding
Patented exhaust flaps stay closed when not in use. Includes 8" long aluminum tube (4" diam.). 12 sq.ft. net free area. #5687. 1 pc/box. Special Order.
| Item # | #5687 |
| pcs/Box | 1 |
| Locking Positions | 7/8" · 1-1/8" · 1-3/8" · 1-5/8" |
| Net Free Area | 12 sq.ft. |
| Notes | Special Order · Patented exhaust flaps stay closed when not in use · Incl. 8" long aluminum tube (4" diam.) |

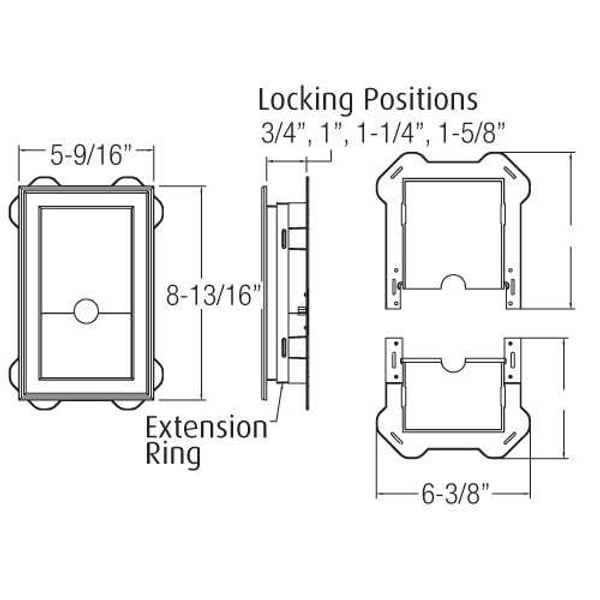

vent-split-block-insulatedSplit Block for Insulated Siding
#5681. 10 pcs/box. Special Order.
| Item # | #5681 |
| pcs/Box | 10 |
| Locking Positions | 3/4" · 1" · 1-1/4" · 1-5/8" |
| Notes | Special Order |

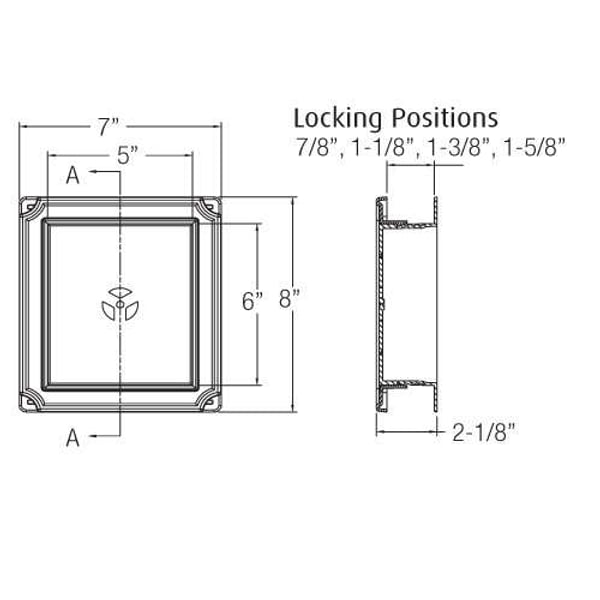

vent-original-mount-master-insulatedOriginal Mount Master For Insulated Siding
Scalloped. #5688. 10 pcs/box. Special Order.
| Item # | #5688 (Scalloped) |
| pcs/Box | 10 |
| Locking Positions | 7/8" · 1-1/8" · 1-3/8" · 1-5/8" |
| Notes | Special Order |

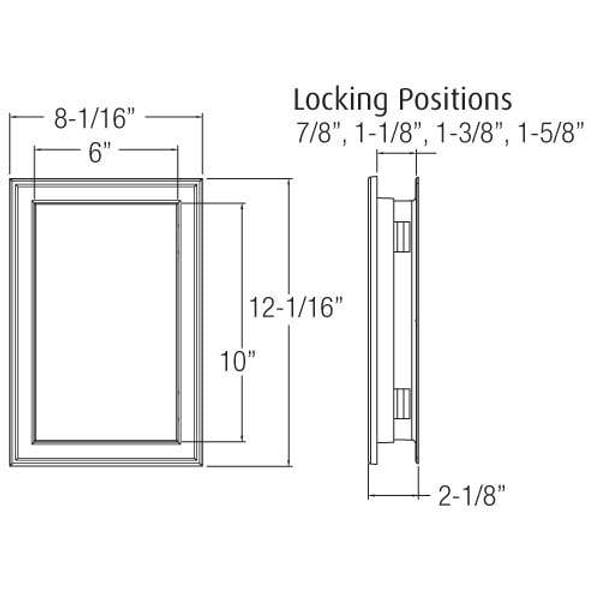

vent-jumbo-mount-insulatedJumbo Mount – For Insulated Siding
#5689. 10 pcs/box. Special Order.
| Item # | #5689 |
| pcs/Box | 10 |
| Locking Positions | 7/8" · 1-1/8" · 1-3/8" · 1-5/8" |
| Notes | Special Order |
vent-4in-hooded4" Hooded Vent
#1150. 1 pc/box.
| Item # | #1150 |
| pcs/Box | 1 |
| Locking Positions | 0.75" · 1.00" · 1.25" |

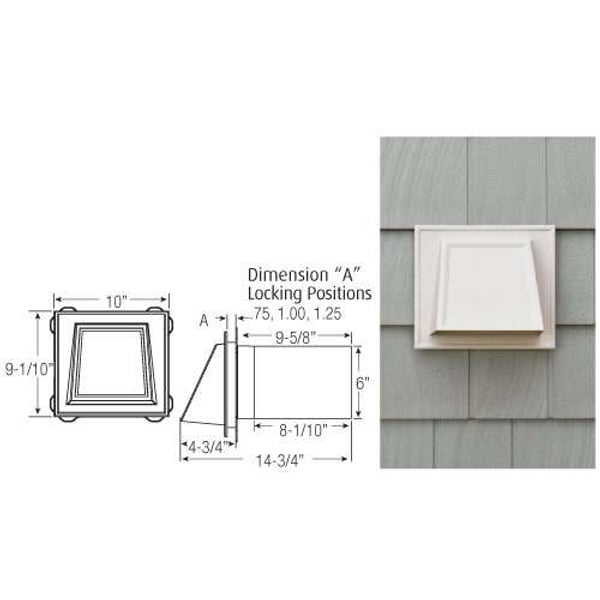

vent-6in-hooded6" Hooded Vent
Concealed exhaust flap. Includes 8" long aluminum tube. 25 sq.ft. net free area. #1141. 1 pc/box.
| Item # | #1141 |
| pcs/Box | 1 |
| Locking Positions | 0.75" · 1.00" · 1.25" |
| Net Free Area | 25 sq.ft. |
| Notes | Concealed exhaust flap · Incl. 8" long aluminum tube |

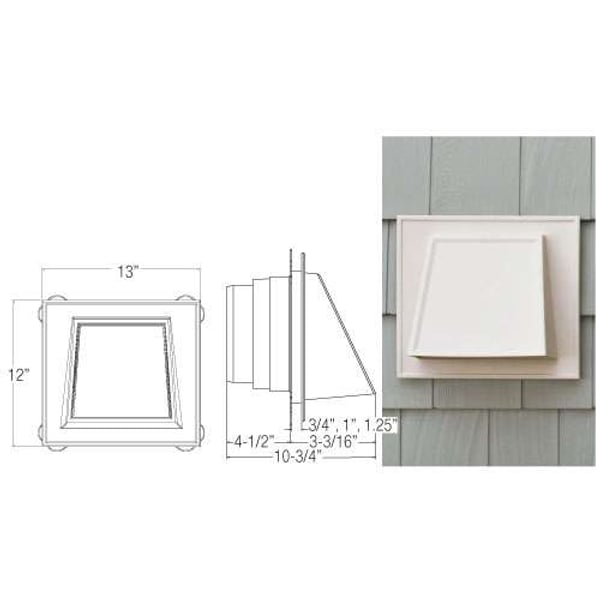

vent-8in-hooded8" Hooded Vent
Meets the increased air flow requirements of newer high efficiency HVAC systems. Can be installed with an 8" or 7" diameter tube (not included). Adapter for 7" diameter tube is included. Concealed exhaust flap. 48 sq.ft. net free area. #1136. 1 pc/box. Special Order.
| Item # | #1136 |
| pcs/Box | 1 |
| Locking Positions | 0.50" · 0.75" |
| Net Free Area | 48 sq.ft. |
| Notes | Special Order · Meets increased air flow requirements for high efficiency HVAC · 8" or 7" diam. tube (not incl.) · Adapter for 7" diam. tube included · Concealed exhaust flap |

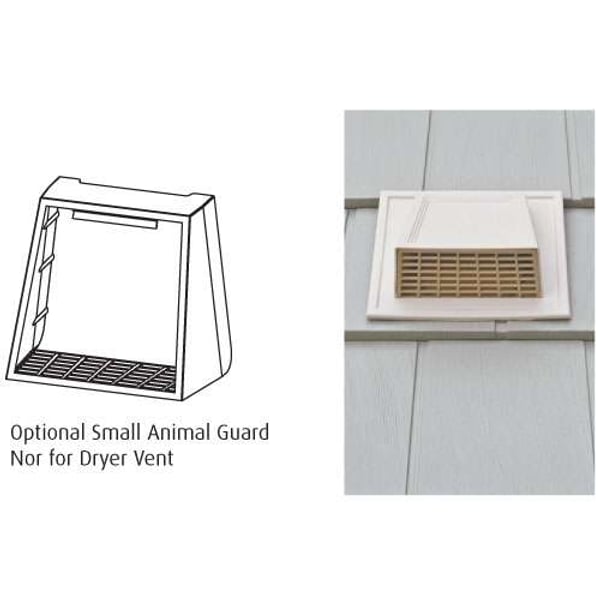

vent-small-animal-guard-4inSmall Animal Guard for 4" Hooded Vent
#1139. 1 pc/box.
| Item # | #1139 |
| pcs/Box | 1 |

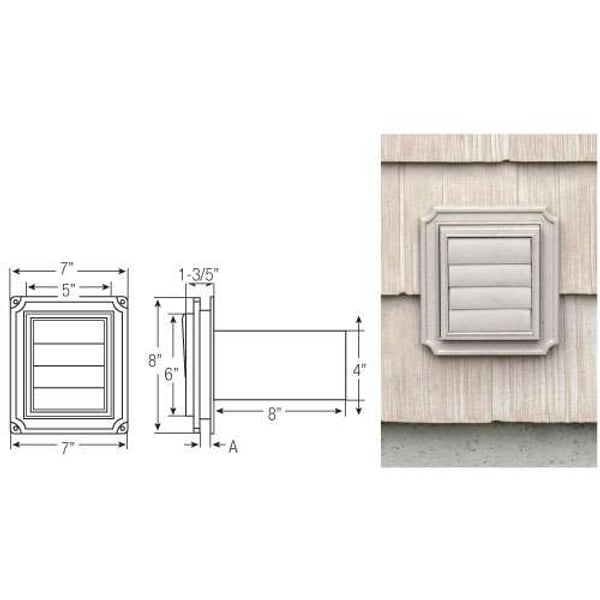

vent-master-exhaustMaster Exhaust Vent
Scalloped: #1124 · Square: #1119. 4 pcs/box.
| Item # | #1124 (Scalloped) · #1119 (Square) |
| pcs/Box | 4 |
| Locking Positions | 0.75" · 1.00" · 1.25" |

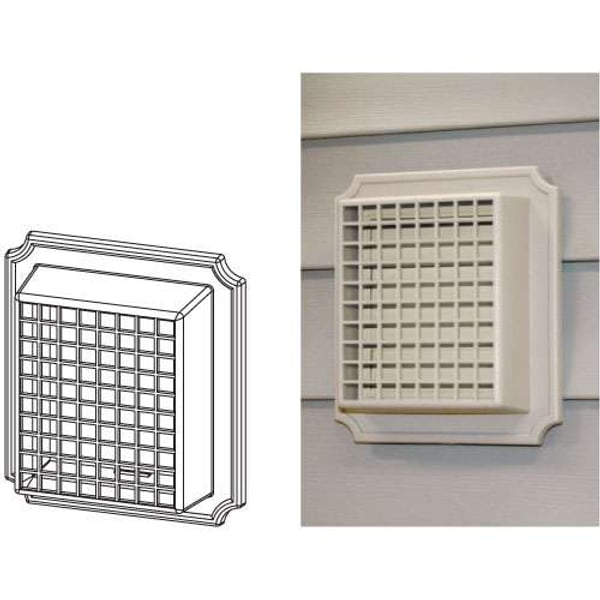

vent-small-animal-guard-masterSmall Animal Guard for Master Exhaust Vent
Use in place of the trim ring. Order in addition to the Master Exhaust Vent. #1138. 1 pc/box. Special Order.
| Item # | #1138 |
| pcs/Box | 1 |
| Notes | Special Order · Use in place of trim ring · Order in addition to Master Exhaust Vent |

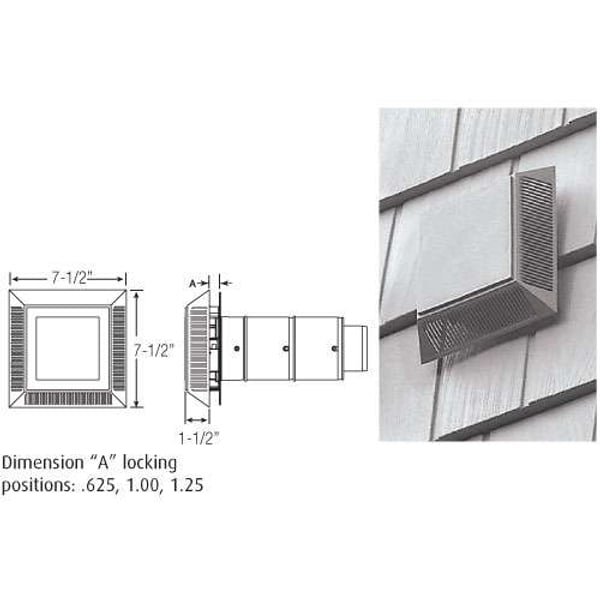

vent-master-intake-exhaustMaster Intake / Exhaust Vent
Full fiberglass screening. Not for use as a dryer or furnace vent. Snap-in Modular Vent Tube adjusts from 1-1/2" to 8" and comes with 4"–3" reducer. 12 sq.ft. net free area. #1149. 1 pc/box.
| Item # | #1149 |
| pcs/Box | 1 |
| Locking Positions | 0.625" · 1.00" · 1.25" |
| Net Free Area | 12 sq.ft. |
| Notes | Full fiberglass screening · Not for dryer/furnace vent · Vent tube adjusts 1-1/2"–8", incl. 4"–3" reducer |

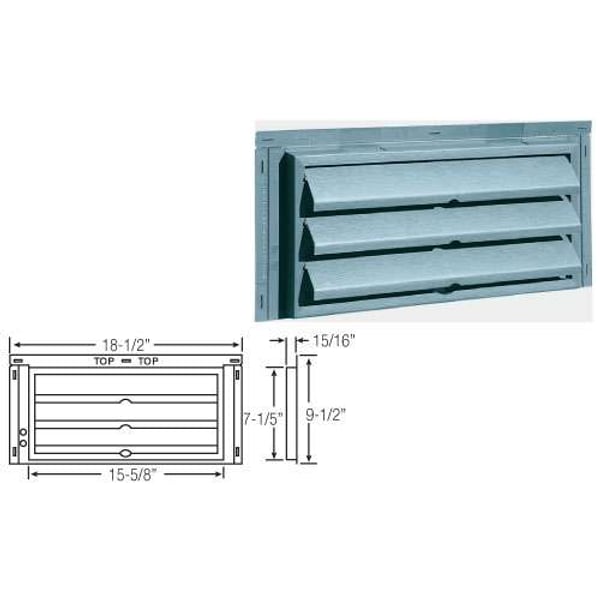

vent-foundation-master-new-constructionFoundation Master – New Construction
Patented flange inserts into block. Molded-in screen for insect protection. 50 sq.ft. net free area. #5188. 10 pcs/box. Special Order.
| Item # | #5188 |
| pcs/Box | 10 |
| Net Free Area | 50 sq.ft. |
| Notes | Special Order · Patented flange inserts into block · Molded-in screen for insect protection |

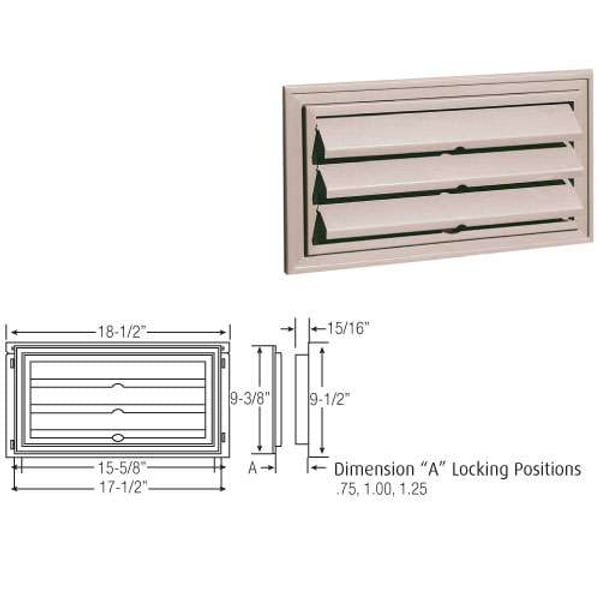

vent-foundation-master-trim-ringFoundation Master – Lock-On Trim Ring
For remodeling. Molded-in screen for insect protection. 50 sq.ft. net free area. #5088. 1 pc/box.
| Item # | #5088 |
| pcs/Box | 1 |
| Locking Positions | 0.75" · 1.00" · 1.25" |
| Net Free Area | 50 sq.ft. |
| Notes | For remodeling · Molded-in screen for insect protection |

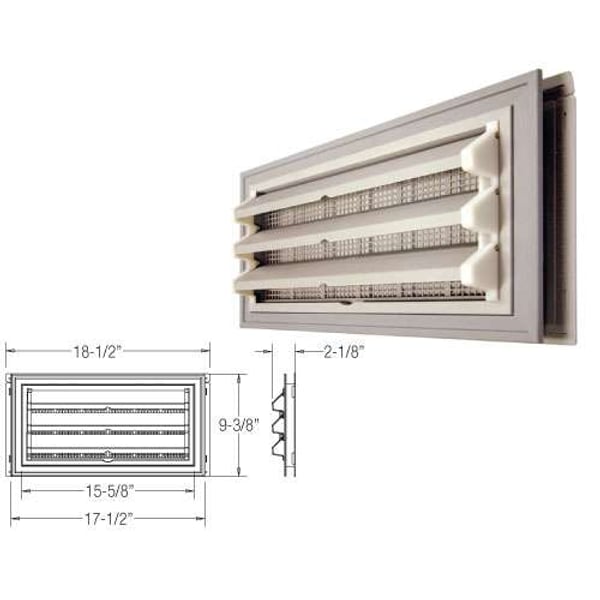

vent-foundation-master-fixed-louverFoundation Master – Fixed Louver
Molded-in screen for insect protection. 50 sq.ft. net free area. #5189. 10 pcs/box. Special Order.
| Item # | #5189 |
| pcs/Box | 10 |
| Net Free Area | 50 sq.ft. |
| Notes | Special Order · Molded-in screen for insect protection |
Installation Guide
Conceal the cut edges of siding for a finished, professional look while eliminating moisture and air infiltration.
Available in all Kaycan siding colours — distinctive style and matching colours for a seamless look.
Special Order items: contact your local Kaycan distribution centre for availability and lead times.
Locking positions allow secure attachment at varying siding thicknesses.
For dryer or furnace venting, use a dedicated hooded vent — the Master Intake/Exhaust Vent (#1149) is not suitable for dryer or furnace vent applications.
For insulated siding installations, use the dedicated insulated siding series (#5681, #5684, #5687, #5688, #5689).
For composite siding and water management applications, use the dedicated composite siding series (#5682, #5683, #5686).
