Van Mark Bending Brakes

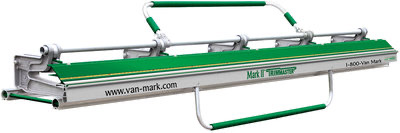

The Mark II TrimMaster is Van Mark's best-selling residential portable aluminum bending brake, with over 35 years of field use. It features the POWERslot hinge delivering a 5/8 in. standard bend, and a 14 in. throat depth. Contractor models handle up to .032 in. aluminum; Heavy Duty models handle up to .040 in. aluminum. Available from 2'0" to 12'6" (Contractor) and 6'6" to 14'6" (Heavy Duty). The cam-locking system includes two aircraft-grade aluminum castings per clamping station and a 2-piece rotating Aluminum Cam with Polyethylene Wedge that self-adjusts to material thickness with fewer moving parts. The full loop locking handle has high-density foam grips and locks by pushing away from the user. The bending handle has 2 to 4 integrated contact points for truer bends across the full length.

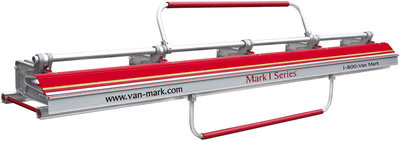

The Mark I Series is Van Mark's original cam-design portable bending brake, in continuous production for over 35 years. It features the Traditional Hinge delivering a 3/4 in. standard bend, and a 14 in. throat depth. Contractor models handle up to .032 in. aluminum; Heavy Duty models handle up to .040 in. aluminum. Available from 2'0" to 12'6" (Contractor) and 6'6" to 14'6" (Heavy Duty). Same proven cam-locking system as the Mark II — two aircraft-grade aluminum castings per clamping station and a 2-piece rotating Aluminum Cam with Polyethylene Wedge. Full loop locking handle with high-density foam grips; bending handle with 2 to 4 integrated contact points.

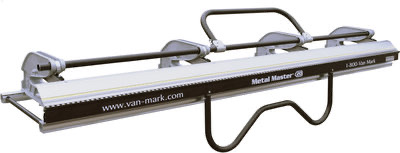

The Metal Master 20 offers the largest working depth (20 in.) of any portable aluminum bending brake, designed for residential soffit, fascia, and wide panel work. It features the POWERslot hinge and a cam-locking system with two aircraft-grade aluminum castings per clamping station. Contractor models handle up to .032 in. aluminum. Available from 2'0" to 12'6".

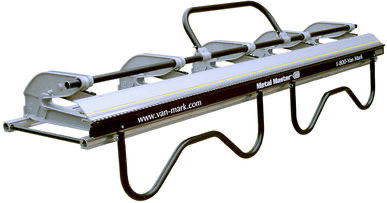

The Metal Master 20 Heavy Duty shares the 20 in. throat of the standard Metal Master 20 and upgrades capacity to .040 in. aluminum for heavier residential and commercial flashing work. POWERslot hinge. Available from 6'6" to 14'6".

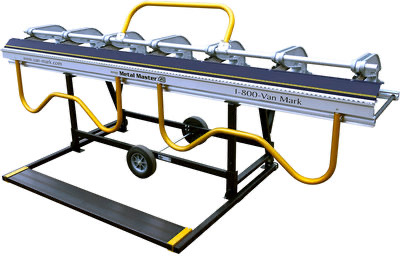

The Industrial Metal Master 20 EZ is Van Mark's commercial-grade portable bending brake designed for metal roofing contractors and light industrial fabrication. It features a 20 in. throat, POWERslot hinge, and handles a wide range of materials: aluminum up to .050 in., galvanized steel 20 gauge, painted steel 24 gauge, roofing copper 36 oz., zinc .050 in., and stainless steel 304L 24 gauge. Includes the Master Stand EZ. Available from 6'6" to 14'6".
