Add architectural flair to your home with colour-matching vinyl headers.
Kaycan Window & Door Headers are vinyl surface-mount headers in Flat Panel and Classic Dentil profiles. 6" Standard Headers (Items #5560–5192): bottom widths 33-5/8" to 73-5/8", top depth 2-11/16", bottom depth 1-1/4". 9" Standard Headers (Items #5554–5200): bottom widths 33-5/8" to 128", top depth 3-3/4", bottom depth 1-5/8". Keystone ships with every header — use it to cover the centre cut when field-sizing. Match colour to shutters or siding. Special order — confirm availability with your Kaycan distributor.

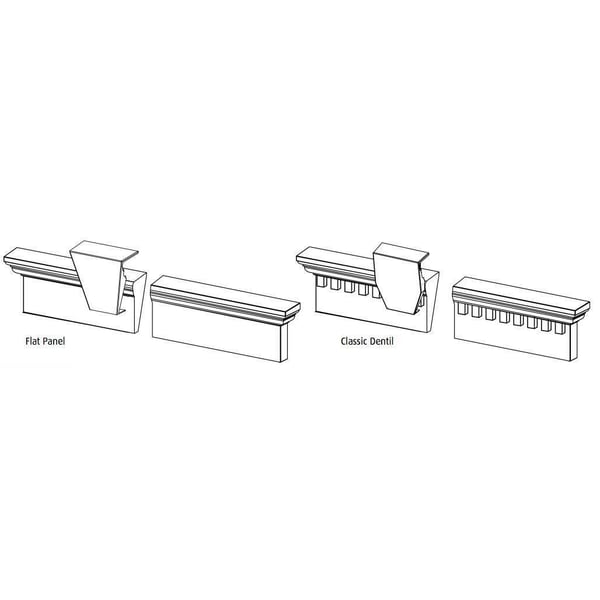

Clean flat-profile header with a subtle cornice overhang. Smooth face with no decorative detail. Available in both 6" and 9" header heights across all standard widths. Match the colour to shutters or siding for a coordinated look.
Header with ornamental evenly spaced square tooth-block (dentil) detail running the full width of the face. Available in 6" header height for all standard widths; 9" height available in 73-5/8" bottom width only (Item #5210).
| Item # | Profile | Bottom Width | Top Width |
|---|---|---|---|
| #5560 | Flat Panel | 33-5/8" | 36-1/2" |
| #5201 | Classic Dentil | 33-5/8" | 36-1/2" |
| #5561 | Flat Panel | 37-5/8" | 40-1/2" |
| #5202 | Classic Dentil | 37-5/8" | 40-1/2" |
| #5562 | Flat Panel | 43-5/8" | 46-1/2" |
| #5203 | Classic Dentil | 43-5/8" | 46-1/2" |
| #5563 | Flat Panel | 65-5/8" | 68-1/2" |
| #5204 | Classic Dentil | 65-5/8" | 68-1/2" |
| #5564 | Flat Panel | 73-5/8" | 76-1/2" |
| #5192 | Classic Dentil | 73-5/8" | 76-1/2" |
Height: 6" · Top depth: 2-11/16" · Bottom depth: 1-1/4"
| Item # | Profile | Bottom Width | Top Width |
|---|---|---|---|
| #5554 | Flat Panel | 33-5/8" | 37-7/8" |
| #5555 | Flat Panel | 37-5/8" | 41-7/8" |
| #5556 | Flat Panel | 43-5/8" | 47-7/8" |
| #5557 | Flat Panel | 65-5/8" | 69-7/8" |
| #5558 | Flat Panel | 73-5/8" | 77-7/8" |
| #5210 | Classic Dentil | 73-5/8" | 77-7/8" |
| #5200 | Flat Panel | 128" | 132-7/8" |
Height: 9" · Top depth: 3-3/4" · Bottom depth: 1-5/8". Classic Dentil available at 73-5/8" bottom width only (Item #5210).
Order quantities and lead times may vary. Contact us for availability.
Surface mounts directly on any exterior surface above windows or doors — solid one-piece construction, no special framing required.
Headers can be cut in the centre for special sizing in the field — a keystone ships with every header and is used to cover the cut.
Match the header colour to the shutters or to the siding for a multitude of beautiful design combinations.
Special order product — confirm availability with your Kaycan distributor before ordering.
