MECSM5441000PVC Corner Smooth 4" × 10'
| Length | 10' |
| Height / Width | 3-1/2" |
| Thickness | 1" |
CertainTeed›Restoration Millwork®
One-piece PVC corner boards — Smooth, Wood Grain, and J-Pocket profiles

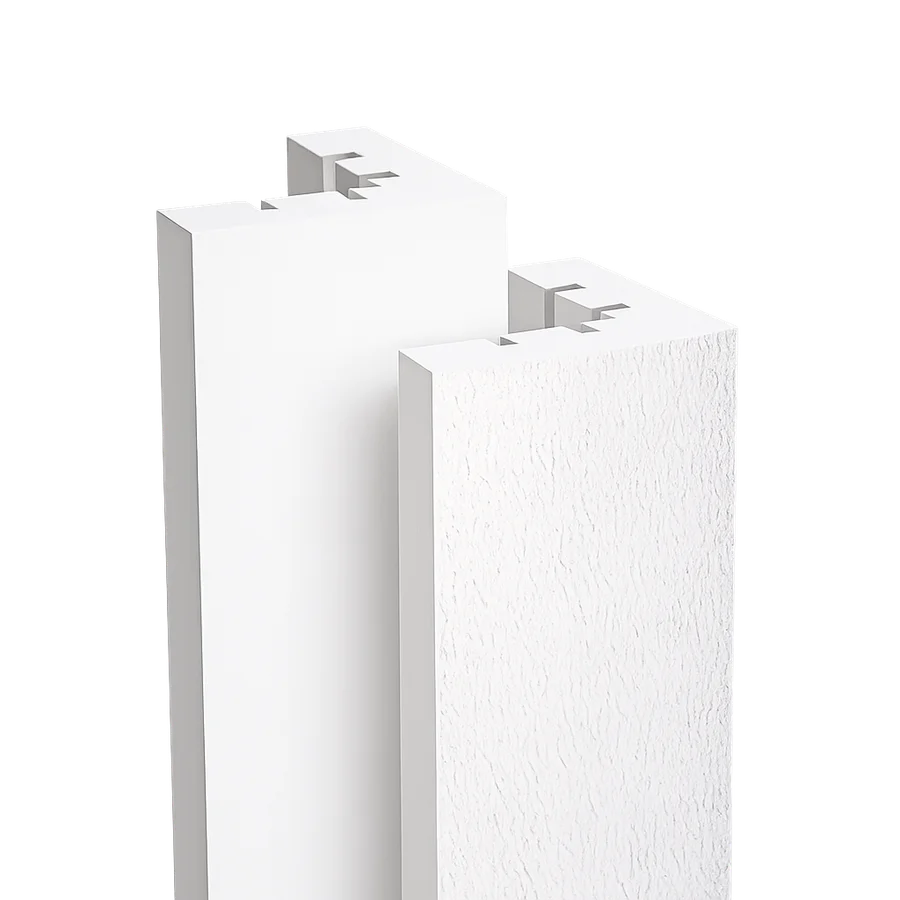

Restoration Millwork® PVC Corners
Restoration Millwork® PVC Corners by CertainTeed are one-piece cellular PVC corner boards that give building corners a clean, low-maintenance finish. Available in Smooth and Wood Grain face finishes, in 4" and 6" leg widths, with lengths of 10 and 20 feet, and with an optional J-Pocket profile that neatly accommodates siding panel edges. All pieces are 5/4" nominal (1" actual) thickness and ship natural white, accepting paint for colour matching. FinishedEdge™ heat-sealed edges and TrueTexture™ woodgrain detailing are standard. Class A Flame Spread rated, ICC and CCMC compliant, and backed by a 25-year limited warranty.
5/4" (1")
Profiles & Specifications
MECSM5461000PVC Corner Smooth 6" × 10'
| Length | 10' |
| Height / Width | 5-1/2" |
| Thickness | 1" |
MECSMJ5461000PVC Corner Smooth J-Pocket 6" × 10'
| Length | 10' |
| Height / Width | 5-1/2" |
| Thickness | 1" |
MECWG5441000PVC Corner Wood Grain 4" × 10'
| Length | 10' |
| Height / Width | 3-1/2" |
| Thickness | 1" |
MECWG5461000PVC Corner Wood Grain 6" × 10'
| Length | 10' |
| Height / Width | 5-1/2" |
| Thickness | 1" |
MECWGJ5441000PVC Corner Wood Grain J-Pocket 4" × 10'
| Length | 10' |
| Height / Width | 3-1/2" |
| Thickness | 1" |
MECWGJ5461000PVC Corner Wood Grain J-Pocket 6" × 10'
| Length | 10' |
| Height / Width | 5-1/2" |
| Thickness | 1" |
MECSM5462000PVC Corner Smooth 6" × 20'
| Length | 20' |
| Height / Width | 5-1/2" |
| Thickness | 1" |
MECSMJ5442000PVC Corner Smooth J-Pocket 4" × 20'
| Length | 20' |
| Height / Width | 3-1/2" |
| Thickness | 1" |
MECSMJ5462000PVC Corner Smooth J-Pocket 6" × 20'
| Length | 20' |
| Height / Width | 5-1/2" |
| Thickness | 1" |
MECWG5442000PVC Corner Wood Grain 4" × 20'
| Length | 20' |
| Height / Width | 3-1/2" |
| Thickness | 1" |
MECWG5462000PVC Corner Wood Grain 6" × 20'
| Length | 20' |
| Height / Width | 5-1/2" |
| Thickness | 1" |
MECWGJ5462000PVC Corner Wood Grain J-Pocket 6" × 20'
| Length | 20' |
| Height / Width | 5-1/2" |
| Thickness | 1" |
MECWGJ5442000PVC Corner Wood Grain J-Pocket 4" × 20'
| Length | 20' |
| Height / Width | 3-1/2" |
| Thickness | 1" |
Certifications & Testing Standards
Restoration Millwork® PVC Corners meets or exceeds the following Canadian and international performance standards.
| Test / Property | Standard | Result / Value |
|---|---|---|
Flame Spread ASTM E84 — Class A (Class 1) | - | Certified |
Code Compliance — ICC and CCMC | - | Certified |
Installation Guide
Use PVC cement for all mitre and scarf joints to control expansion and contraction
Recommended adhesives: Extreme PVC Trim Welder® or Partite® Adhesive
J-Pocket profile accommodates siding panel edges for a clean integrated finish
Cuts and mills with standard woodworking tools — no special blades required
Remove protective film after installation to avoid adhesive residue
Refer to the Kaycan Restoration Millwork® installation manual for complete fastener schedules and gap allowances
Video Guide
Restoration Millwork® Installation Videos
