M-Series Aluminum

Name: Exterior Pro Materials
Address: Unit 5, 1235 Journey's End Cir, Newmarket, ON, L3Y 8T7, CA
Telephone: +1 (905) 836-7272

Mitten M-Series Aluminum makes it easy to dress up any home or light commercial building with a coordinated system of soffit, fascia, and drainage products. The Quad 4 Aluminum Soffit — available in solid and vented versions — delivers a clean 16" panel profile with 5.16 sq.in. of net free air intake per linear foot on the vented option. Smooth and ribbed fascia in four widths, heavy-gauge trim coil, gutter coil, downspouts, and elbows complete the system. All products are available in 13 colours specifically selected to match or complement the full Mitten vinyl siding palette.

.013" soffit · .024" gutter coil · heavy gauge trim coil13 colours

Request a Quote Datasheet

WarrantyLifetime Transferable Warranty

Available Colours

Terratone

M-Series

M-Series(13)

Colours shown are approximate representations only and may appear differently on screen than the actual product. Request a physical sample before making your final decision.

Profiles & Specifications

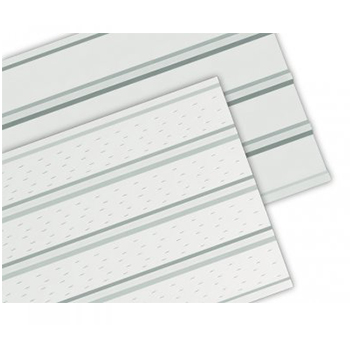

Q4SQuad 4 Soffit

Aluminum soffit panel with four 4" ribs across a 16" width. Available in Solid and Vented versions. The vented version provides 5.16 sq.in. net free air intake per linear foot for proper attic ventilation.

Length	12' (3.66 m)
Height / Width	16" (40.64 cm)
Thickness	.013"
Panels/Box	2 squares/box
Coverage	288 sq.ft./box (26.76 m²)
Installation	Horizontal soffit application

Colours: Terratone, Bone, Black, Brownstone, Dark Bronze, Flagstone, Hearthstone, Iron Ore, Musket Brown, Rockaway Grey, Slate, Stratus, White. Flagstone available in Eastern Canada only.

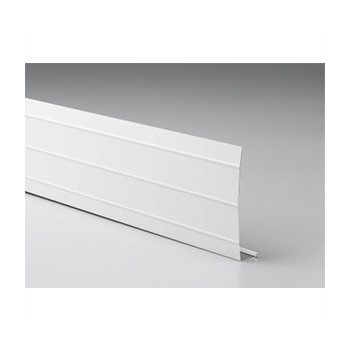

FASFascia

Aluminum fascia available in smooth and ribbed profiles. Multiple widths to suit different framing conditions. 8" width available in Eastern Canada only; 8.5" width available in Western Canada only.

Length	Standard lengths
Height / Width	6" \| 8"† \| 8.5"* \| 10"
Installation	Horizontal fascia application at roof eave

† 8" Eastern Canada only · * 8.5" Western Canada only

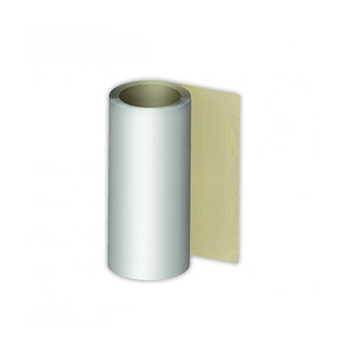

TCTrim Coil

Heavy-gauge aluminum coil for field-forming trim, wrapping, and finishing work. Available one side painted (1SP) or two sides painted (2SP).

Length	30 m roll
Height / Width	24"

Used for custom trim fabrication, fascia wrapping, and finish details.

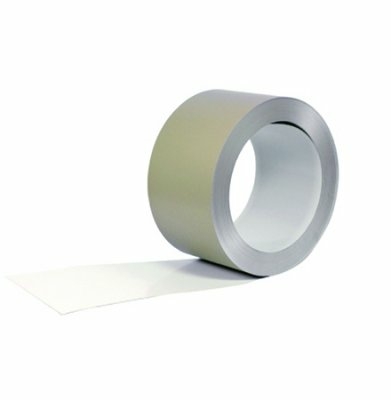

GCGutter Coil

Aluminum coil for fabricating seamless gutters on site. Available one side painted (1SP) or two sides painted (2SP).

Length	Roll stock
Height / Width	11.875"
Thickness	.024"

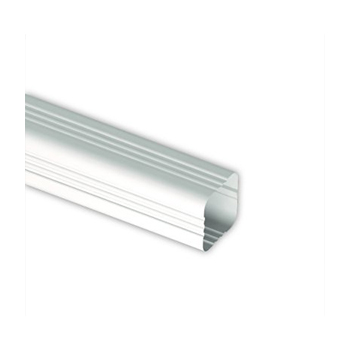

DSDownspout

Aluminum downspout for rainwater drainage. Multiple cross-section sizes available. 2"×3" and 3"×3" sizes available in Eastern Canada only.

† Eastern Canada only

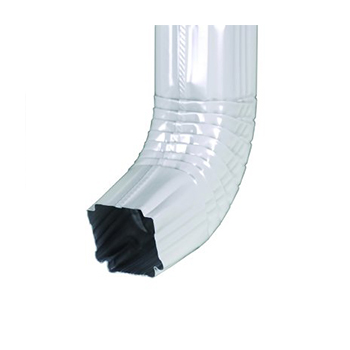

ELElbow

Aluminum elbow fitting for downspout direction changes. Matches downspout cross-section sizes. 2"×3" and 3"×3" sizes available in Eastern Canada only.

† Eastern Canada only

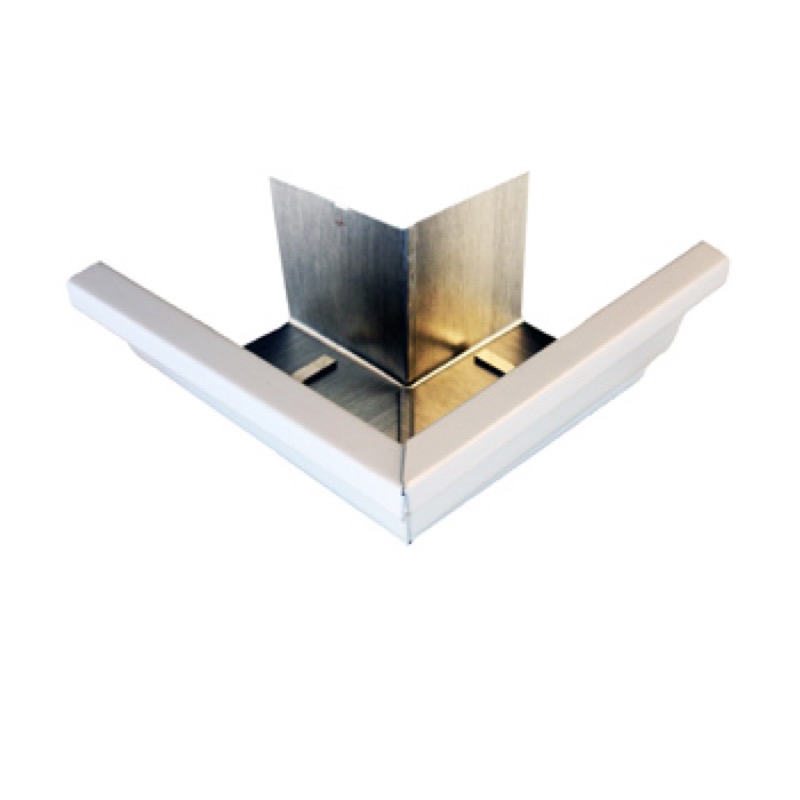

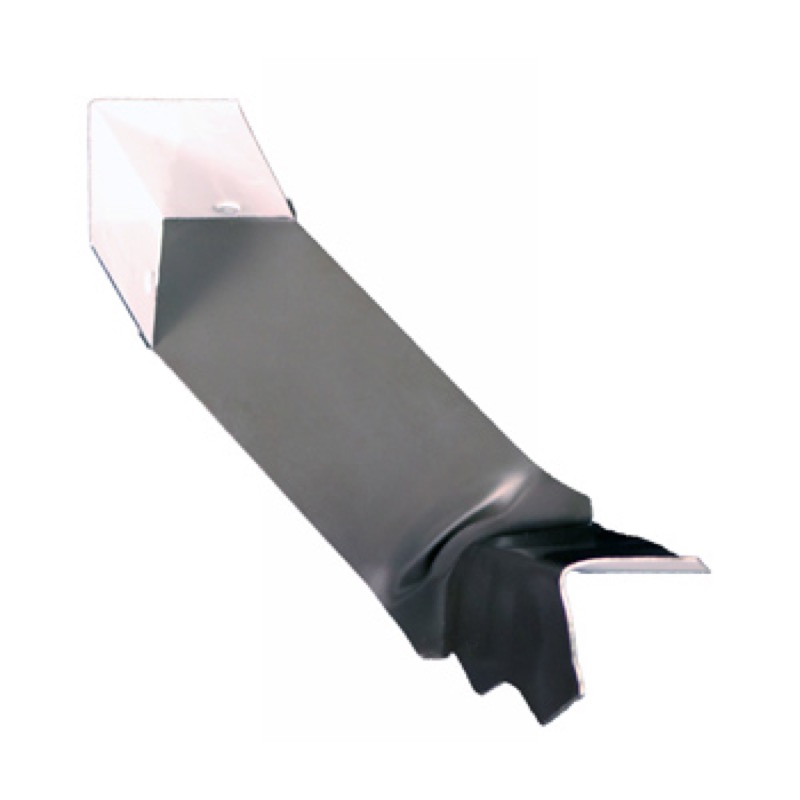

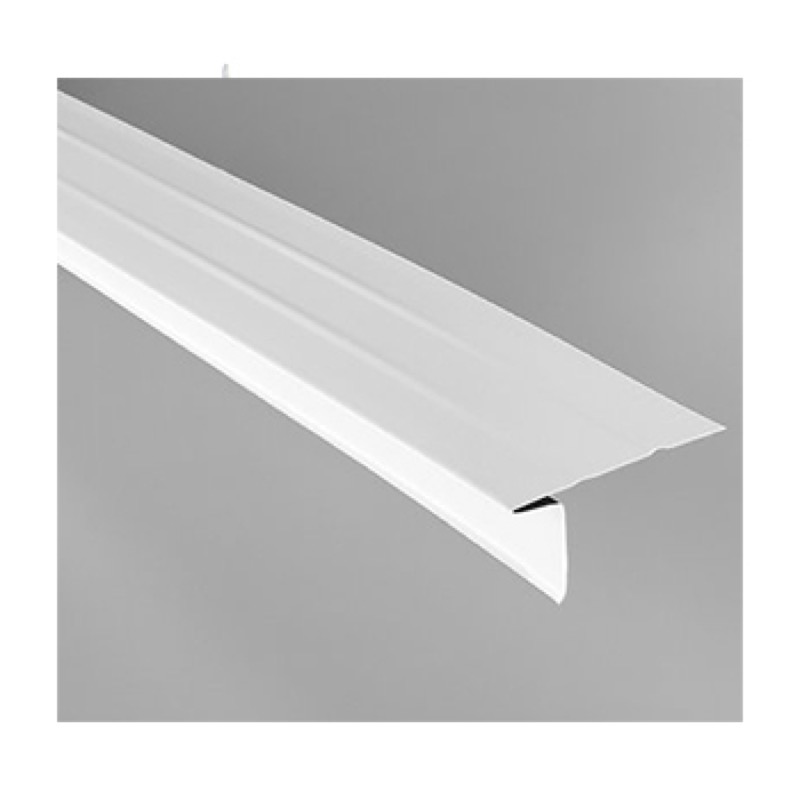

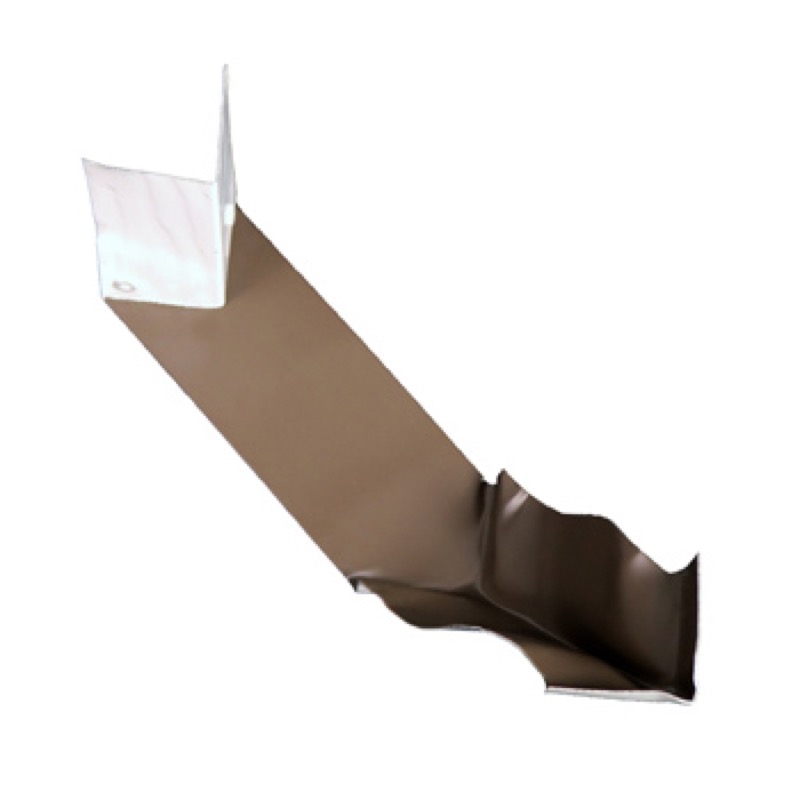

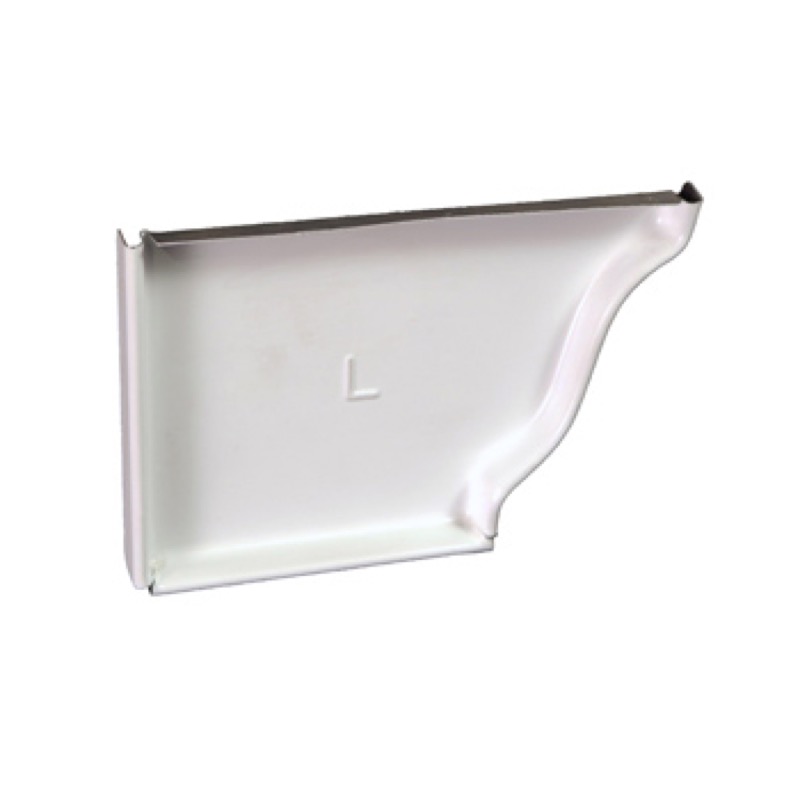

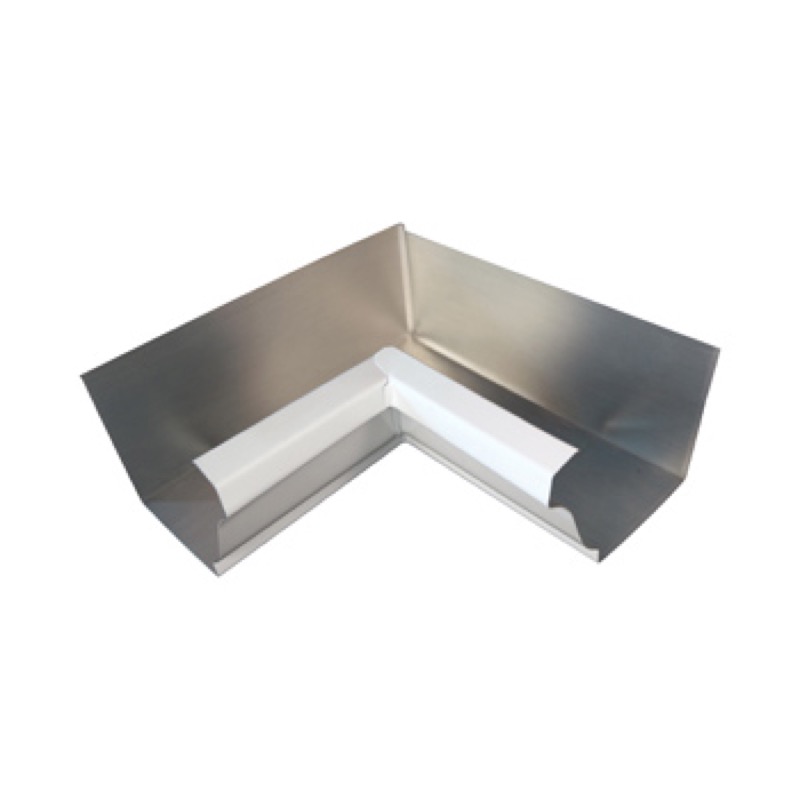

Compatible Accessories

Installation Guide

Ensure all framing, fascia boards, and soffit nailing surfaces are level and secure before installation.

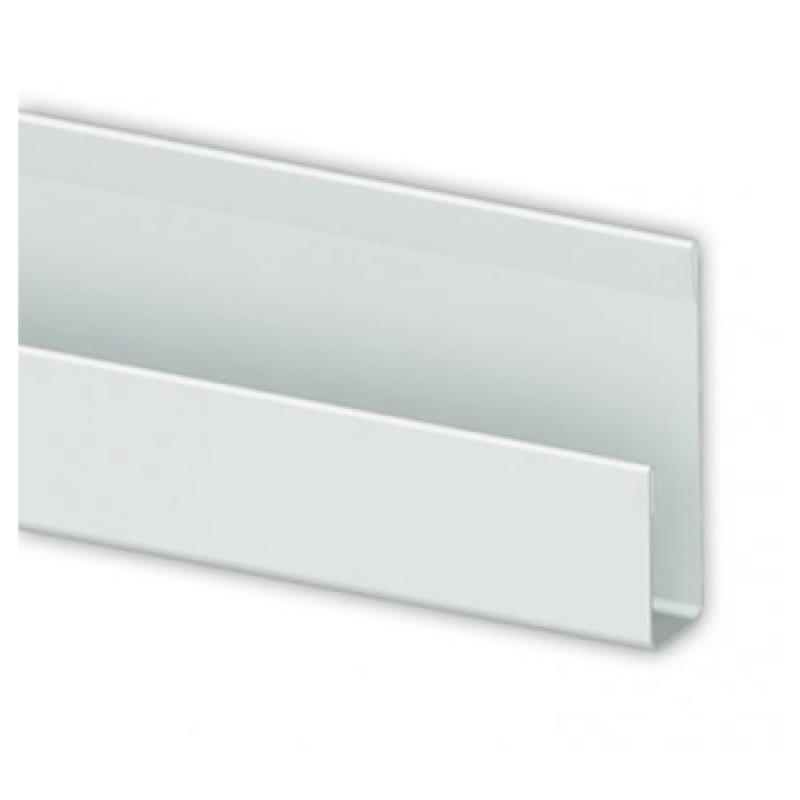

Install J-channel along the wall and fascia perimeter first to receive soffit panel edges.
Slide soffit panels into J-channel from one side; fasten through slots with aluminum nails or screws — do not over-drive fasteners; leave room for thermal expansion.
For vented soffit: position the vented panels evenly across the soffit run for balanced airflow. Maintain a minimum 1:150 net free ventilation ratio per local building code.
Fascia: remove old wood fascia or apply directly over existing material if sound. Overlap joints by minimum 1" and stagger from soffit joints.
Trim Coil: use a brake to form site-cut trim pieces. Cut with snips; never use a saw (leaves sharp burrs). Overlap trim coil joints minimum ½".
Gutter Coil: fabricate seamless gutters on site using a gutter machine. Slope gutters minimum ⅛" per foot toward downspout outlets.
Downspouts and elbows: secure downspouts to wall with straps every 6 ft maximum. Keep bottom of downspout minimum 6" above grade.
Avoid contact between aluminum and dissimilar metals (copper, iron) to prevent galvanic corrosion — use aluminum or stainless fasteners throughout.
Flagstone colour is available in Eastern Canada only. 8" fascia is Eastern Canada only; 8.5" fascia is Western Canada only.
