Norwood Mini

Name: Exterior Pro Materials
Address: Unit 5, 1235 Journey's End Cir, Newmarket, ON, L3Y 8T7, CA
Telephone: +1 (905) 836-7272

Norwood Mini by MAC Metal Architectural captures the pared-back elegance of Scandinavian narrow-strip cladding in pre-painted galvanized steel. At 3.4" exposure, it creates a refined, high-density plank pattern that stands on its own or combines seamlessly with the 5.38" Norwood profile for fully customizable mixed-width facades. The same TEXTURAL III & IV matte paint system, beveled anti-siphoning edge, and hidden-fastener system as Norwood — available in 15 colours across Wood Grain and Metallic collections.

0.44" depth (11 mm) · 6 lbs/panel5626 Pa / 117.5 psf @ 16" o.c. wind15 colours

Request a Quote Datasheet

Warranty40-Year Limited Warranty

Available Colours

Ash Grey

Wood Collection

Wood Collection(9)

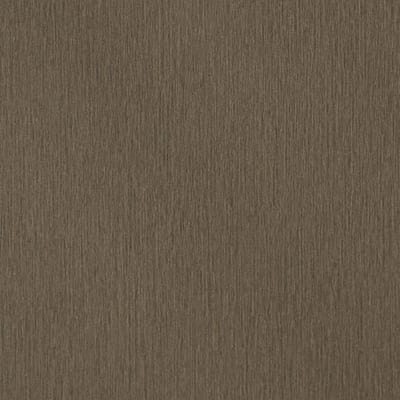

Metallic Collection(6)

Colours shown are approximate representations only and may appear differently on screen than the actual product. Request a physical sample before making your final decision.

About Norwood Mini

MAC Norwood Mini is a narrow 3.4" pre-painted galvanized steel siding panel that shares the same beveled anti-siphoning profile as MAC's standard Norwood plank — built in a smaller footprint. The anti-siphon geometry prevents water from being drawn up and behind the panel by capillary action, a common failure point on narrow-plank steel cladding in high-rainfall or coastal environments.

Norwood Mini is purpose-built to pair with the full-width Norwood plank (5.38"), creating a two-plank Scandinavian-inspired horizontal facade with intentional rhythm between narrow and wide boards. Available in 15 standard MAC colours, it installs with no exposed screws. A vented soffit version of Norwood Mini is also available for continuous soffit runs that need to breathe. MAC's standard paint warranty covers all colour options.

Available at Pro Materials in Newmarket, Ontario, supplying contractors, builders, and homeowners across York Region, the GTA, and Ontario. All products are available on a quote basis; contact us for wholesale pricing and current availability.

Profiles & Specifications

NWMNorwood Mini

Prefinished galvanized steel wall profile with the same beveled edge and anti-siphoning channel as Norwood, in a narrow 3.4" exposure. Designed for independent use or to combine with Norwood (5.38" plank) for Scandinavian-inspired mixed-width facades.

Length	144" (3658 mm)
Height / Width	3.40" exposure (86.36 mm)
Thickness	0.44" depth (11 mm)
Panel Weight	6 lbs/panel (2.7 kg) · 75 lbs/box
Panels/Box	12 panels/box
Coverage	41 sq.ft./box (3.81 m²)
Wind Resistance	5626 Pa (117.5 psf) @ 16" o.c. · 3830 Pa (80 psf) @ 24" o.c. (ASTM D5206-06A)
Installation	Horizontal / Vertical / Diagonal — screws every 16" or 24" o.c. in pre-punched holes
Backing	Plywood min. 5/8" \| Wood furring 16" o.c. \| Metal furring 16" o.c. — all furring must be level

TEXTURAL III & IV paint system. Wood Collection includes 6 plank variations per colour (#1–6 on back); install in random order. For vertical installation, use M50D drip strip instead of M10D starting strip.

Certifications & Testing Standards

Norwood Mini meets or exceeds the following Canadian and international performance standards.

Test / Property	Standard	Result / Value
CAN/ULC-S135 — Fire Resistance, Non-Combustible Construction (Canada)	-	Certified
ASTM E84 — Class A Fire Resistance (USA)	-	Certified
NFPA — 0 Flammability Hazard Rating	-	Certified
ASTM E2768 — Non-Combustible Construction for Wildland Urban Interface (WUI) in California	-	Certified
W.U.I. Wildland Urban Interface Accreditation — Registration 8140-2358-0500	-	Certified
ASTM D5206-06A — Wind Load: 5626 Pa (117.5 psf) @ 16" o.c. \| 3830 Pa (80 psf) @ 24" o.c.	-	Certified
ASTM E330 — Wind Deflection: ±5000 Pa @ 16" o.c. \| ±3500 Pa @ 24" o.c.	-	Certified
ASTM E283 — Air Leakage of Wall Assembly: Compliant	-	Certified
TDI EC-139 — Texas Department of Insurance Evaluation	-	Certified
ASTM B-117	-	2000h — Corrosion Resistance Standard for MAC Screws
40-Year Limited Warranty — Paint Defects, Discoloration & Chalking	-	Certified
LEED Recyclable —	-	86% Recycled Content; 100% Recyclable at End of Life

Compatible Accessories

Installation Guide

Wood Collection panels come in 6 plank variations per colour (numbered #1–6 on the back). Install in random order — never follow numerical sequence to avoid a wallpaper effect. Boxes come pre-mixed; each box contains 12 × 12-foot planks = 41 sq. ft.
Norwood Mini (3.4" exposure) can be combined with Norwood (5.38" exposure) on the same wall to create varied Scandinavian-style mixed-width strip patterns. Calculate the combined layout before starting installation.
Store panels indoors in a dry, well-ventilated area. If outdoor storage is necessary, place away from direct sunlight and extreme temperatures — heat causes the protective film to adhere more strongly, making removal difficult. Cover with a tarp.
Do NOT install over ZIP System Insulated R-Sheathing or similar dual-composite panels — insufficient rigidity causes movement, deformation, and oil canning under varying weather and sun exposure.
Install Starting Strip (M10D) using a laser level or chalk line, 3" above the base of the wall. Secure with one screw first, verify level, then fasten fully. For vertical installation, replace M10D with M50D drip strip — no starter strip required.
Use MAC Anticorrosion screws (A059.250 wood screw or A060.250 K-LATCH self-drilling) every 16" or 24" o.c. in the center of pre-punched holes. Drive with moderate contact only — do not overtighten. Screws must not exert upward or downward pressure on the panel.
Remove the protective film from panels before installation where possible to allow visual inspection of quality as work progresses.
Check alignment every 3–4 panels. If a furring strip section is not aligned, leave a small gap between the wall and the furring strip rather than forcing the panel — prevents excess pressure and oil canning.
Leave 1/8"–1/4" expansion gap between panel lengths at all longitudinal joints. On walls over 30 ft., install vertical expansion molding; on multi-storey structures, install horizontal transition molding at every floor.
For inside corners, install QJ Trim M22D and slide the panel end into the molding, leaving a 1/8" gap for expansion. For outside corners, install M20D (with integrated J Trim) before proceeding with panel installation.
Cut panels using the MAC Guillotine designed for Norwood siding, metal snips, or electric shears. Electric saws and angle grinders are NOT covered by MAC warranty.
Notify your supplier before installing more than 144 sq. ft. (2 boxes) if any product issue is discovered during installation to ensure warranty coverage is preserved.
