The modern farmhouse aesthetic

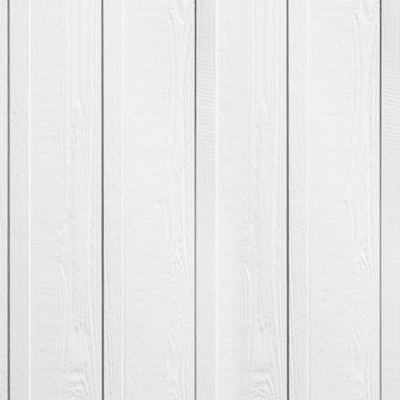

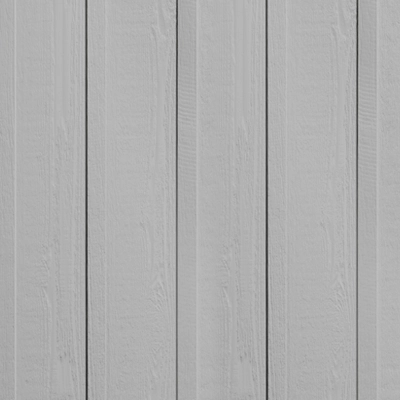

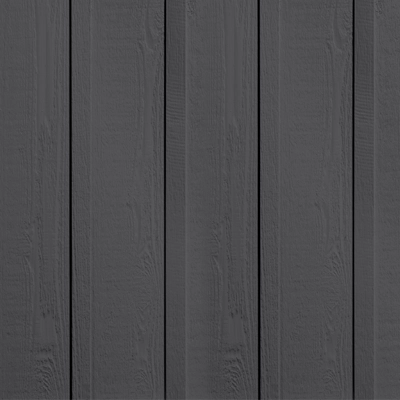

Board and Batten by Maibec CanExel brings the timeless modern farmhouse aesthetic to engineered wood siding. Vertical panels feature a textured HDF substrate with factory-applied finish and an easy-to-install hidden-fastener interlock system. Available in 4 colours — Black, Granite, Mist Grey, and White — with actual coverage of 11 sq. ft. per 12-foot board and a prorated 25-year limited warranty.

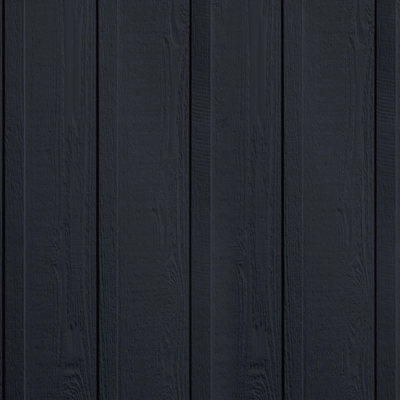

Black
Other(4)
Colours shown are approximate representations only and may appear differently on screen than the actual product. Request a physical sample before making your final decision.
The wide vertical board panel. Hidden fastener interlock system. Textured HDF substrate with factory-applied finish.
| Length | 12 ft. (3.66 m) |
| Panels/Box | 4 boards/bundle · 44 sq. ft. per bundle |
| Coverage | 30 bundles per pallet |
| Nominal Width | 12 in. (30.48 cm) |
| Actual Width | 11 7/8 in. (30.16 cm) |
| Nominal Thickness | 3/8 in. (0.95 cm) |
| Substrate | HDF (High-density fiberboard, 960 kg/m³) |
| Finish | Textured |
| Installation | Hidden fasteners |
The narrow batten strip installed over the board joints. Pre-drilled every 16" for nailing through both batten and board.
| Length | 12 ft. (3.66 m) |
| Panels/Box | 8 battens/bundle · 45 bundles per pallet |
| Nominal Width | 2 1/4 in. (5.72 cm) |
| Nominal Thickness | 3/8 in. (0.95 cm) |
| Substrate | HDF |
| Installation | Regular — nailed at 16" O.C. |
Can only be installed vertically — no horizontal installation permitted
Double furring is mandatory in Quebec and the Maritimes; strongly recommended in Ontario
Install vertical furring strips (min. 3/8" thick), then horizontal 1"×3" furring strips every 16" over top
Maintain minimum 1-1/4" fastener penetration into stud, strapping, or combination thereof
Spiral shank nails require minimum 1-1/8" stud penetration
Batten nails must be a minimum of 2" long — pre-drill every 16" through batten and board
Center the batten above the groove and nail at 16" O.C.
Touch-up all visible nails immediately after installation to prevent moisture ingress
For horizontal batten trim, install Z-flashing on top of the trim; add a second Z-flashing at the lower end
Never recut the batten — the original factory paint must remain on the edge
Keep siding in a dry, unheated, well-ventilated area, at least 6" off the ground during storage
Maintain minimum 8" (203 mm) clearance between the bottom edge of siding and grade
Seal all gaps between siding and trim with a high-quality, non-hardening sealant; leave 3/16" expansion gap at trim junctions
