DuPont™ Tyvek® HomeWrap®

Name: Exterior Pro Materials
Address: Unit 5, 1235 Journey's End Cir, Newmarket, ON, L3Y 8T7, CA
Telephone: +1 (905) 836-7272

DuPont™ Tyvek® HomeWrap® is the world's most recognized residential housewrap, providing an optimal balance of air resistance, water resistance, and vapour permeability for Canadian residential construction. Made from 100% flash spunbonded HDPE with no binders or fillers. ICC-ES ESR-2375 certified, ASTM E2556 Type II, LEED eligible. Available in 7 roll sizes from 300 to 1,500 sq ft coverage.

Request a Quote Datasheet

Warranty10-Year Limited Warranty (installation per DuPont guidelines required)

Specifications

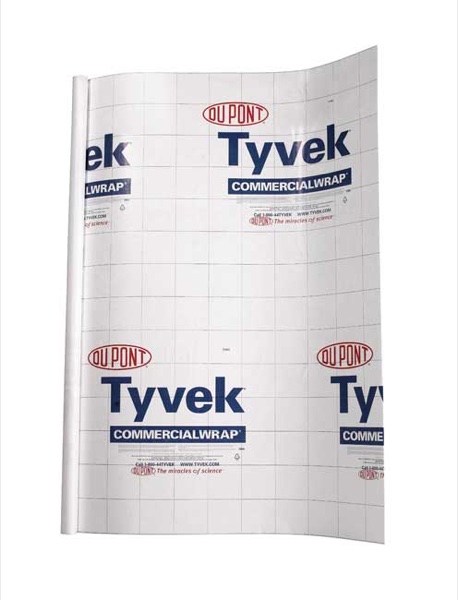

DUPONT-HWDuPont™ Tyvek® HomeWrap® / CommercialWrap®

The world's leading housewrap. Made from 100% flash spunbonded high-density polyethylene fibres bonded by heat and pressure — no binders or fillers. Provides the optimum combination of air resistance (< 0.004 cfm/ft², ASTM E1677 Type 1), water resistance (250 cm hydrostatic), and vapour permeability (56 Perms) to protect wall assemblies while allowing moisture to escape. Stud-alignment marks printed every 8" for accurate fastening. Must be covered within 4 months (120 days) of installation. ICC-ES ESR-2375. 10-Year Limited Warranty.

Material	100% flash spunbonded HDPE — no binders or fillers
Air Penetration	< 0.004 cfm/ft² @ 1.57 psf (ASTM E2178) · 1200 sec/100cc (TAPPI T-460 Gurley Hill)
Air Infiltration Class	Type 1 (ASTM E1677)
Water Vapour Trans.	56 Perms · 400 g/m²/24h — Method A (ASTM E96-05)
Water Resistance	250 cm (AATCC 127)
Breaking Strength	30/30 lbs/in MD/CD (ASTM D882)
Tear Resistance	8/6 lbs MD/CD — Trapezoid (ASTM D1117)
Basis Weight	1.8 oz/yd² (TAPPI T-410)
Flame Spread	Class A — Index: 15 (ASTM E84)
Smoke Developed	Class A — Index: 15 (ASTM E84)
UV Resistance	120 days (4 months) — must be covered before expiry
Melt / Burn Point	Melts at 275°F (135°C) · Burns at 750°F (400°C)
Roll Widths	3 ft · 5 ft · 9 ft · 10 ft
Roll Lengths	100 ft · 150 ft · 165 ft · 200 ft (varies by width)
Certification	ICC-ES ESR-2375 · ASTM E2556 Type II · LEED Eligible
Warranty	10-Year Limited (requires installation per DuPont guidelines)

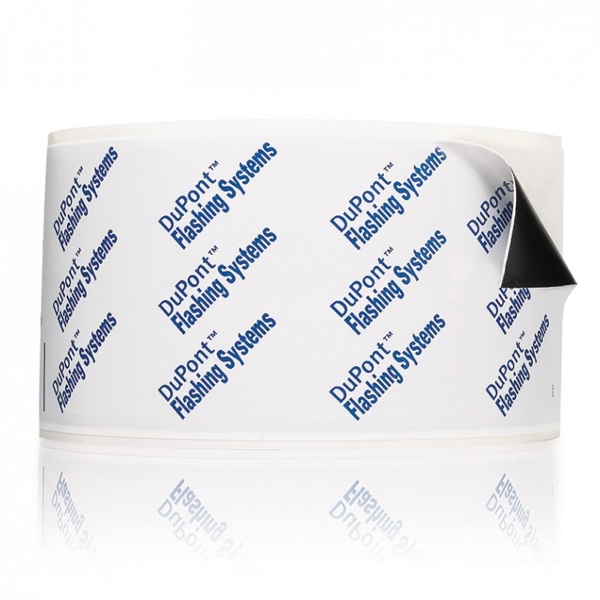

DUPONT-FLASHDuPont™ Flashing Systems

Complete line of self-adhered butyl-backed flashing products designed to integrate with DuPont Tyvek WRBs to create a continuous air and weather barrier at all window and door openings. FlexWrap™ NF is fully extendable for sills and curved areas; StraightFlash™ handles jambs and heads; Flashing Tape seals heads and jambs of rectangular openings. All flashing products carry 9-month UV resistance and are covered under the DuPont Lifetime Limited Warranty when used as a complete system with Tyvek.

FlexWrap™ NF	100% butyl-backed · self-adhered · extendable for sills and curved areas · 9-month UV · 6"×75 ft / 9"×75 ft
StraightFlash™	Butyl-backed · self-adhered · jambs and heads · 9-month UV · 4"×150 ft / 9"×125 ft
StraightFlash™ VF	Dual-sided butyl-backed · brick mold and non-flanged windows/doors · 9-month UV · 6"×125 ft
Flashing Tape	100% butyl-backed · heads and jambs · 9-month UV · 4"×100 ft / 6"×100 ft / 9"×100 ft
Tyvek® Tape	For sealing WRB seams and penetrations · 2" bulk pack (36 rolls/case) · 3" bulk pack (24 rolls/case)
Adhesive	For cold temp or difficult substrate adhesion before applying flashing
Warranty	Lifetime Limited when installed as a complete DuPont Tyvek system

Specifications

DuPont™ Tyvek® HomeWrap® — Physical Properties

Property	Test Method	Value
Air Penetration Resistance	ASTM E2178	< 0.004 cfm/ft² @ 1.57 psf
Air Penetration Resistance	TAPPI T-460	1200 sec/100cc (Gurley Hill)
Air Infiltration Classification	ASTM E1677	Type 1
Water Vapour Transmission — A	ASTM E96-05 (A)	56 Perms · 400 g/m²/24h
Water Vapour Transmission — B	ASTM E96-05 (B)	54 Perms · 370 g/m²/24h
Water Penetration Resistance	AATCC 127	250 cm
Breaking Strength	ASTM D882	30/30 lbs/in (MD/CD)
Tear Resistance (Trapezoid)	ASTM D1117	8/6 lbs (MD/CD)
Basis Weight	TAPPI T-410	1.8 oz/yd²
Surface Burning — Flame Spread	ASTM E84	Class A — Index: 15
Surface Burning — Smoke Developed	ASTM E84	Class A — Index: 15
UV Light Exposure	—	120 days (4 months)

Test results represent roll averages. Individual results may vary due to normal manufacturing variations while continuing to meet product specifications.

Available Roll Sizes — DuPont™ Tyvek® HomeWrap®

Width × Length	Coverage Area
3 ft × 100 ft	300 sq ft
3 ft × 165 ft	495 sq ft
5 ft × 200 ft	1,000 sq ft
9 ft × 100 ft	900 sq ft
9 ft × 150 ft	1,350 sq ft
10 ft × 100 ft	1,000 sq ft
10 ft × 150 ft	1,500 sq ft

Facade Compatibility Requirements

Cladding Type	Additional Requirements
Vinyl Siding	Install directly over Tyvek per ASTM D4756-06
Wood Siding	Prime siding on all six sides before installation
Fiber Cement	DrainWrap™ or furring strips recommended in high-exposure zones
Brick Veneer	1" nominal airspace required (IRC R703.7.4.2); 2" for steel stud (Brick Industry Association)
Stone Veneer	Two layers of WRB required behind stone veneer (IBC 1405.7)
Stucco	Separate from stucco with second WRB layer or Grade D building paper; integrate with weep screed

Order quantities and lead times may vary. Contact us for availability.

Certifications & Testing Standards

DuPont™ Tyvek® HomeWrap® meets or exceeds the following Canadian and international performance standards.

Test / Property	Standard	Result / Value
ICC-ES Evaluation Report ESR-2375 — DuPont™ Tyvek® HomeWrap®, StuccoWrap®, DrainWrap™, CommercialWrap®, CommercialWrap® D	-	Certified
ASTM E2556 Type II — Standard Specification for Vapor Permeable Flexible Sheet Water-Resistive Barriers for Mechanical Attachment	-	Certified
ASTM E2178 — Air Penetration Resistance: < 0.004 cfm/ft² @ 1.57 psf (ASTM E1677 Type 1 classification)	-	Certified
ASTM E96-05 — Water Vapour Transmission: 56 Perms (Method A) / 54 Perms (Method B)	-	Certified
AATCC 127 — Water Penetration Resistance: 250 cm	-	Certified
ASTM D882 — Breaking Strength: 30/30 lbs/in MD/CD	-	Certified
ASTM E84 — Surface Burning: Class A (Flame Spread Index 15 / Smoke Developed Index 15)	-	Certified
ICC-ES AC-38 — Water-Resistive and Air-Barrier Requirements (mechanically attached)	-	Certified
LEED Eligible — may contribute toward U.S. Green Building Council LEED® points: Energy & Atmosphere; Indoor Environmental Quality	-	Certified
10-Year Limited Warranty — valid only when installed per DuPont™ Tyvek® Installation Guidelines (www.weatherization.tyvek.com)	-	Certified
Manufactured by DuPont™ · Distributed in Canada by Mitten / Cornerstone Building Brands	-	Certified

Installation Guide

TIMING — Install DuPont™ Tyvek® HomeWrap® after roof sheathing and step flashings and kickout flashings are in place, and BEFORE windows and doors are installed. This sequence allows for proper integration of the WRB with window and door flashings.
STARTING — Unwrap at a corner, leaving 6"–12" of vertical overlap at the corner. The bottom edge of the roll must extend over the sill plate interface by at least 2". Keep the roll plumb throughout installation. Stud-alignment marks are printed every 8" on the surface to aid fastening.
FASTENING — Secure Tyvek® HomeWrap® to the stud or nail-base sheathing. Fasten no closer than 6" and no farther than 18" on vertical stud lines. Use DuPont™ Tyvek® Wrap Caps (cap nails or cap staples) for secure fastening that resists wind uplift.
OVERLAPS — Upper layers must overlap lower layers by a minimum of 6" on horizontal seams, installed shingle-fashion from bottom to top to shed water. At vertical seams and corners, maintain a minimum 6" overlap.
SEAMS & AIR BARRIER — Tape all vertical seams with DuPont™ Tyvek® Tape. When installing as a continuous air barrier, also tape all horizontal seams, around all penetrations, and at window and door rough openings.
WINDOW & DOOR FLASHING — Use DuPont™ FlexWrap™ NF at window sills and complex curved areas. Use DuPont™ StraightFlash™ or Flashing Tape at jambs and heads. Flashing must be integrated with Tyvek® to provide a continuous water and air seal around all openings.
UV EXPOSURE — DuPont™ Tyvek® HomeWrap® must be covered with exterior cladding within 4 months (120 days) of installation. Exceeding this UV exposure window will void the 10-Year Limited Warranty. Do not expose to open flame — melts at 275°F (135°C) and burns at 750°F (400°C).
FACADE-SPECIFIC — Stucco: separate Tyvek® from stucco with a second WRB layer or Grade D building paper and integrate with weep screed. Brick veneer: maintain minimum 1" nominal airspace (2" for steel stud). Stone veneer: two WRB layers required per IBC 1405.7. Wood siding: prime on all six sides before installation.
