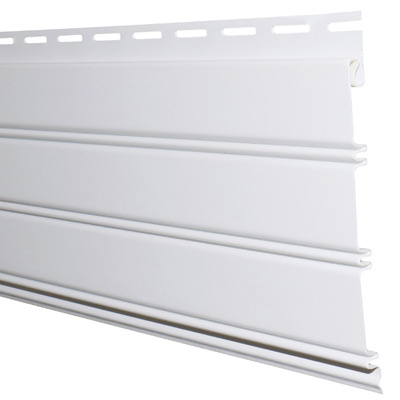

B7-S7" Beaded Solid
| Length | 12' (3.66 m) |
| Height / Width | 7" (17.8 cm) |
| Thickness | .040" |
| Panels/Box | 28 pcs/ctn |
| Coverage | 200 sq. ft. (18.58 m²) |
| Installation | Horizontal — Soffit |
Mitten›7" Beaded Soffit
Mitten 7" Beaded Soffit
Mitten 7" Beaded Soffit combines a classic beaded panel profile with the performance and durability of premium vinyl. The 7" wide panel covers eaves with a clean, traditional look. Choose Solid for a fully closed eave, or Hidden Vent for 2.66 sq.in./ft of concealed ventilation that promotes airflow and prevents moisture buildup in your roof structure.
.040"1 colours
Available Colours
1Frost
Standard
Standard(1)
Colours shown are approximate representations only and may appear differently on screen than the actual product. Request a physical sample before making your final decision.
Profiles & Specifications

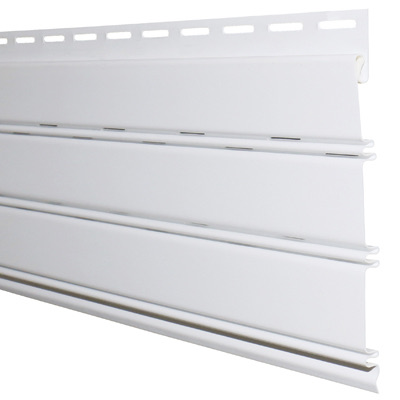

B7-HV7" Beaded Hidden Vent
| Length | 12' (3.66 m) |
| Height / Width | 7" (17.8 cm) |
| Thickness | .040" |
| Panels/Box | 28 pcs/ctn |
| Coverage | 200 sq. ft. (18.58 m²) |
| Installation | Horizontal — Soffit |
Net Free Air Intake: 2.66 sq.in./ft — Hidden Vent system for a clean, stylish look with superior ventilation
Certifications & Testing Standards
Mitten 7" Beaded Soffit meets or exceeds the following Canadian and international performance standards.
| Test / Property | Standard | Result / Value |
|---|---|---|
CAN/CGSB-41.24.95 | - | Certified |
CCMC Acceptance No. 06419L | - | Certified |
ASTM D3679 | - | Certified |
ASTM D4216 — cell classification 13344B | - | Certified |
ASTM D1929 — Self-Ignition Temperature 824°F (440°C) | - | Certified |
ASTM E84 — Flame Spread 20 | Fuel Contribution 0 | Smoke Development 360 | - | Certified |
ASTM E119 — 1-Hour Fire Endurance (wall assembly) | - | Certified |
ASTM D4226 — Wind & Impact Resistance | - | Certified |
VSI Certified Installer Program | - | Certified |

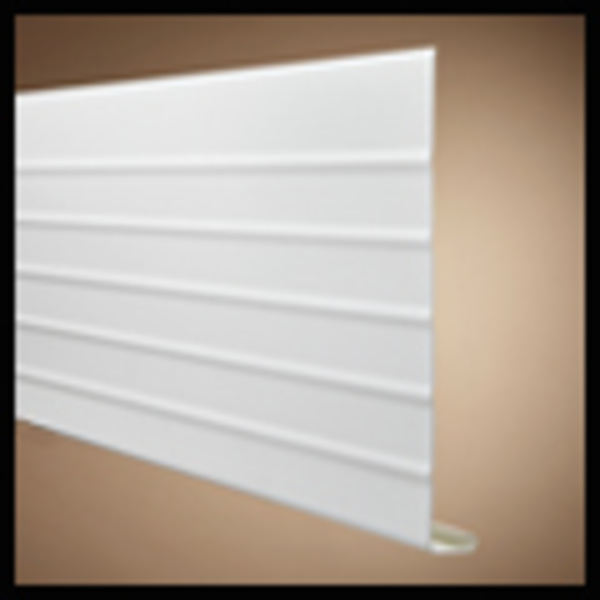

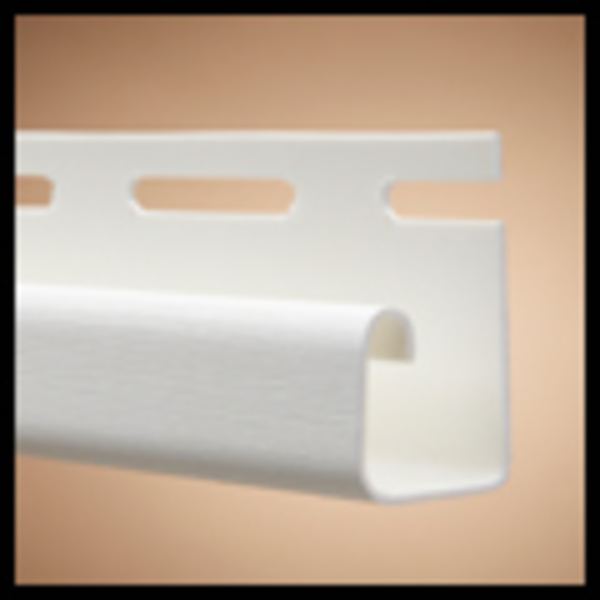

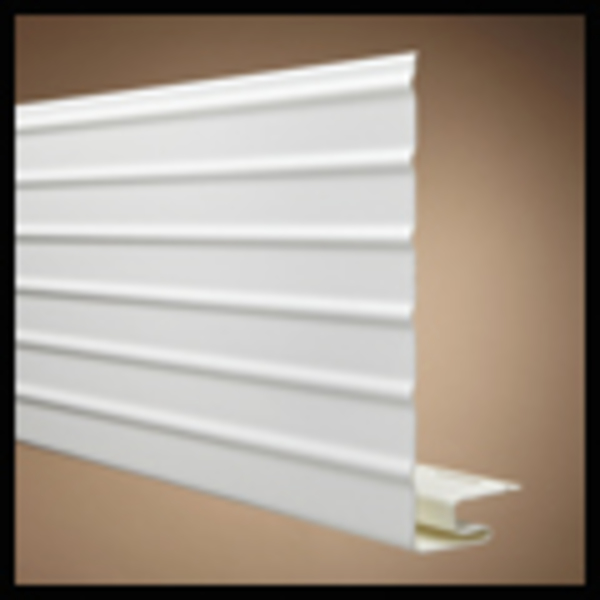

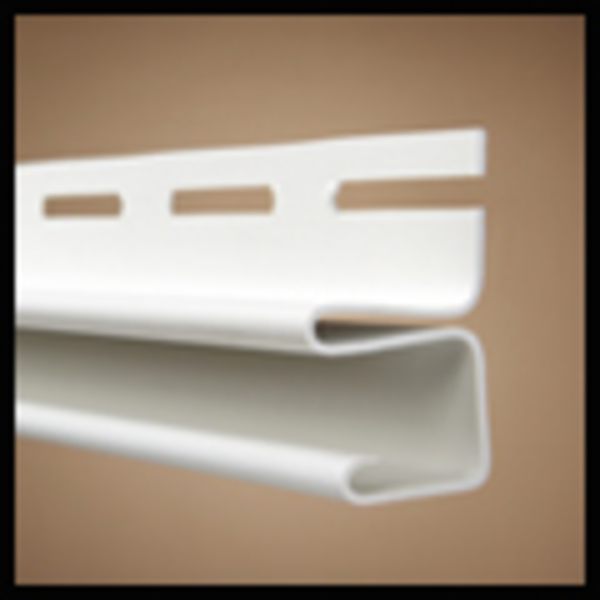

Compatible Accessories
Ready to order Mitten 7" Beaded Soffit?
Submit your spec list and we'll respond with pricing and availability - usually within one business day.
Get a wholesale quote
Tell us the product, colour, and quantity - we'll handle the rest.
or call us at+1 (905) 836-7272
