Exterior Pro Materials
KaycanAluminum Soffit

A proven track record of over four decades of sturdiness, performance and beauty.

Kaycan Aluminum Soffit

Kaycan Aluminum Soffit offers a complete system with 8 profile styles in regular and heavy gauge, spanning solid, vented, and full-vent configurations. All panels feature Kaycan's proprietary Two-Coat system — a thermo-setting acrylic primer and Polycoat 9000™ polyester topcoat, baked on for an extremely durable and fade-resistant finish guaranteed not to flake or crack. Panels never need painting and are colour-coordinated to match Kaycan's full aluminum and vinyl siding line. Choose from 22 in-stock colours. Backed by a Lifetime Limited Warranty. Distributed in Canada by Kaycan.

22 colours

Available Colours

22
Kaycan Aluminum Soffit - Khaki

Khaki

Other(22)

Colours shown are approximate representations only and may appear differently on screen than the actual product. Request a physical sample before making your final decision.

Profiles & Specifications

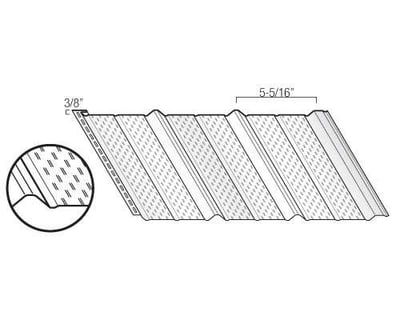

Kaycan Aluminum Soffit - SP-600 16" Vented Soffit profile
0605SP-600 16" Vented Soffit

16" wide vented aluminum soffit panel, SP-600 profile. Two-Coat finish system with Polycoat 9000™ topcoat — guaranteed not to flake or crack. Never needs painting.

Length12' (3.66 m)
Height / Width16" (40.6 cm)
Panels/Box12 pcs/ctn
Coverage192 sq. ft. (17.84 m²)

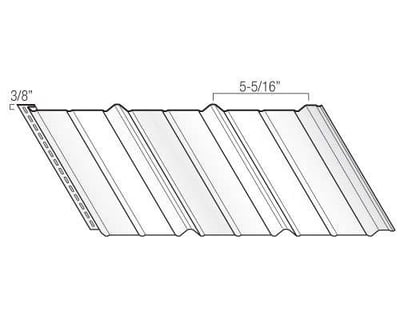

Kaycan Aluminum Soffit - SP-600 16" Solid Soffit profile
0606SP-600 16" Solid Soffit

16" wide solid aluminum soffit panel, SP-600 profile. Two-Coat finish system with Polycoat 9000™ topcoat — guaranteed not to flake or crack. Never needs painting.

Length12' (3.66 m)
Height / Width16" (40.6 cm)
Panels/Box12 pcs/ctn
Coverage192 sq. ft. (17.84 m²)
Kaycan Aluminum Soffit - Deluxe 16" Vented Soffit HG profile
0610Deluxe 16" Vented Soffit HG

16" wide vented heavy-gauge aluminum soffit panel, Deluxe profile. Enhanced rigidity over standard gauge. Two-Coat finish with Polycoat 9000™ topcoat.

Length12' (3.66 m)
Height / Width16" (40.6 cm)
Panels/Box12 pcs/ctn
Coverage192 sq. ft. (17.84 m²)

Heavy Gauge (HG)

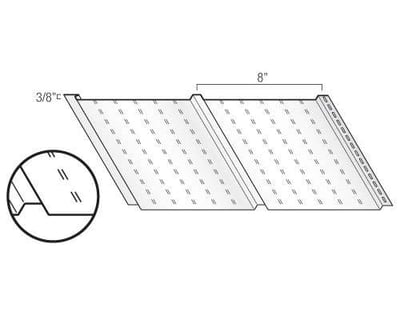

Kaycan Aluminum Soffit - SP-100 16" Vented Soffit profile
0613SP-100 16" Vented Soffit

16" wide vented aluminum soffit panel, SP-100 profile. Two-Coat finish system with Polycoat 9000™ topcoat — guaranteed not to flake or crack. Never needs painting.

Length12' (3.66 m)
Height / Width16" (40.6 cm)
Panels/Box12 pcs/ctn
Coverage192 sq. ft. (17.84 m²)

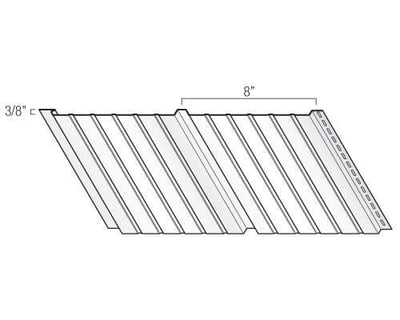

Kaycan Aluminum Soffit - 16" Solid Soffit HG profile
060016" Solid Soffit HG

16" wide solid heavy-gauge aluminum soffit panel. Maximum rigidity and durability. Two-Coat finish with Polycoat 9000™ topcoat.

Length12' (3.66 m)
Height / Width16" (40.6 cm)
Panels/Box12 pcs/ctn
Coverage192 sq. ft. (17.84 m²)

Heavy Gauge (HG)

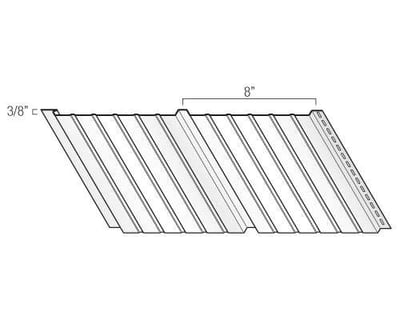

Kaycan Aluminum Soffit - SP-100 16" Solid Soffit profile
0604SP-100 16" Solid Soffit

16" wide solid aluminum soffit panel, SP-100 profile. Two-Coat finish system with Polycoat 9000™ topcoat — guaranteed not to flake or crack. Never needs painting.

Length12' (3.66 m)
Height / Width16" (40.6 cm)
Panels/Box12 pcs/ctn
Coverage192 sq. ft. (17.84 m²)
Kaycan Aluminum Soffit - Quad 4 Solid profile
0612Quad 4 Solid

16" wide solid aluminum soffit panel with 4-channel Quad 4 profile. Clean, architectural appearance. Two-Coat finish with Polycoat 9000™ topcoat.

Length12' (3.66 m)
Height / Width16" (40.6 cm)
Panels/Box12 pcs/ctn
Coverage192 sq. ft. (17.84 m²)

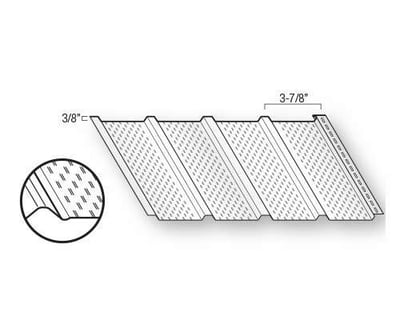

Kaycan Aluminum Soffit - Quad 4 Full Vent profile
0609Quad 4 Full Vent

16" wide fully vented aluminum soffit panel with 4-channel Quad 4 profile. Maximum ventilation for enclosed soffits. Two-Coat finish with Polycoat 9000™ topcoat.

Length12' (3.66 m)
Height / Width16" (40.6 cm)
Panels/Box12 pcs/ctn
Coverage192 sq. ft. (17.84 m²)

Compatible Accessories

Installation Guide

Critical Installation Rules

  1. Whenever possible, nail soffit panels in grooves.

  2. Where eavestroughs cover part of the fascia, either (a) remove trough before installing fascia and replace upon completion; or (b) run fascia part way under existing trough. Note: painted finish normally insulates aluminum from contact with other metals. Bare steel, lead or old copper work should be removed before installation.

  3. To cut aluminum lengthwise, score the panel with a scoring knife, then bend panel back and forth until the metal breaks. Wear goggles when cross-cutting with a power saw.

  4. Keep hands clean or wear gloves to avoid washing the completed installation.

  5. The paint finish is tough, but care should be taken in handling to protect appearance.

  6. On applications where panel lengths from 4 to 12 feet are required, attach panels on 24" centres with coloured trim nails set in grooves or #6 aluminium sheet metal screws. Use touchup paint on screw heads.

  7. Cut soffit panels 1/4" short of the distance from siding to inside of fascia. Slide panel into J-trim and tack; insert each successive panel so that the tongue locks into the groove of the previous panel.
