T4-ST4" Solid
| Length | 12' (3.66 m) |
| Height / Width | 12" (30.48 cm) |
| Thickness | .040" |
| Panels/Box | 16 pcs/ctn |
| Coverage | 192 sq. ft. (17.84 m²) |
| Installation | Horizontal — Soffit |
Mitten›Triple 4" Soffit
Mitten Triple 4" Soffit
Mitten Triple 4" Soffit provides essential ventilation and a clean, finished appearance for any eave or roofline. With five profiles offering airflow from 1.96 to 7.2 sq.in./ft of net free air intake, it meets any building code ventilation requirement. Available in 7 colours with a lifetime non-prorated transferable warranty.
.040"7 colours
Available Colours
7Frost
Standard
Standard(6)
Bold(1)
Colours shown are approximate representations only and may appear differently on screen than the actual product. Request a physical sample before making your final decision.
Profiles & Specifications

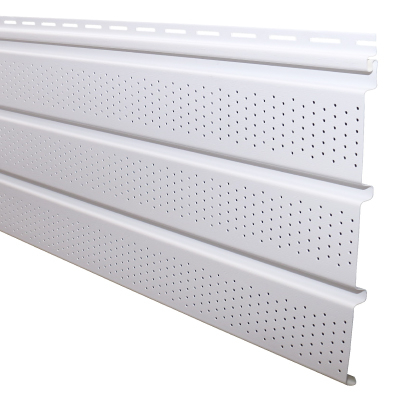

T4-PFVT4" Perforated Full Vent
| Length | 12' (3.66 m) |
| Height / Width | 12" (30.48 cm) |
| Thickness | .040" |
| Panels/Box | 16 pcs/ctn |
| Coverage | 192 sq. ft. (17.84 m²) |
| Installation | Horizontal — Soffit |
Net Free Air Intake: 5.89 sq.in./ft | All 7 colours available including Musket Brown
T4-PCVT4" Perforated Center Vent
| Length | 12' (3.66 m) |
| Height / Width | 12" (30.48 cm) |
| Thickness | .040" |
| Panels/Box | 16 pcs/ctn |
| Coverage | 192 sq. ft. (17.84 m²) |
| Installation | Horizontal — Soffit |
Net Free Air Intake: 1.96 sq.in./ft

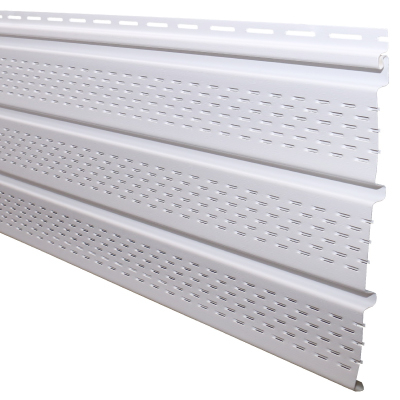

T4-LFVT4" Lanced Full Vent
| Length | 12' (3.66 m) |
| Height / Width | 12" (30.48 cm) |
| Thickness | .040" |
| Panels/Box | 16 pcs/ctn |
| Coverage | 192 sq. ft. (17.84 m²) |
| Installation | Horizontal — Soffit |
Net Free Air Intake: 7.2 sq.in./ft

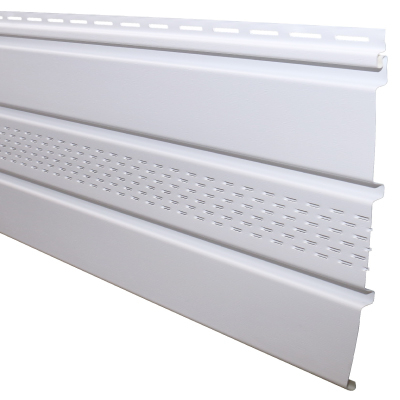

T4-LCVT4" Lanced Center Vent
| Length | 12' (3.66 m) |
| Height / Width | 12" (30.48 cm) |
| Thickness | .040" |
| Panels/Box | 16 pcs/ctn |
| Coverage | 192 sq. ft. (17.84 m²) |
| Installation | Horizontal — Soffit |
Net Free Air Intake: 2.4 sq.in./ft
Certifications & Testing Standards
Mitten Triple 4" Soffit meets or exceeds the following Canadian and international performance standards.
| Test / Property | Standard | Result / Value |
|---|---|---|
CAN/CGSB-41.24.95 | - | Certified |
CCMC Acceptance No. 06419L | - | Certified |
ASTM D3679 | - | Certified |
ASTM D4216 — cell classification 13344B | - | Certified |
ASTM D1929 — Self-Ignition Temperature 824°F (440°C) | - | Certified |
ASTM E84 — Flame Spread 20 | Fuel Contribution 0 | Smoke 360 | - | Certified |
ASTM E119 — 1-Hour Fire Endurance (wall assembly) | - | Certified |
ASTM D4226 — Wind & Impact Resistance | - | Certified |
VSI Certified Installer Program | - | Certified |
