Vinyl soffit completes as well as compliments the look of your home.
Kaycan Vinyl Soffit offers the most complete soffit system available, with twelve profile styles covering every eave configuration. Choose from Solid, Vented, Full-O-Vent, or Centre Vent panels in widths from 8" to 16". All panels are built with Kaycan's Duratron™ Vinyl Formula — engineered to resist fading, cracking, and weather damage — and colour-coordinated with the full Kaycan vinyl siding palette. Backed by a Limited Lifetime Warranty and designed, developed, and manufactured in Canada.

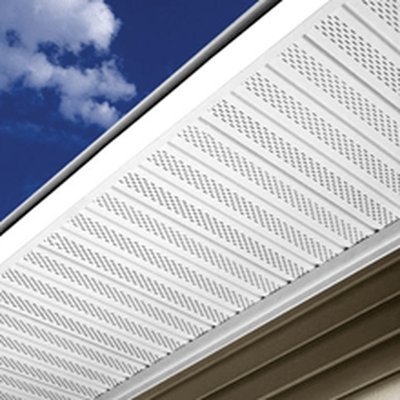

White
Standard
Standard(12)
Colours shown are approximate representations only and may appear differently on screen than the actual product. Request a physical sample before making your final decision.

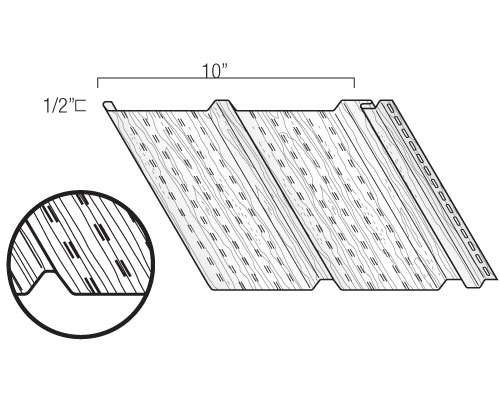

10" wide double 5 panel with diamond-pattern ventilation; smooth or woodgrain low-gloss finish; colour-coordinated with Kaycan vinyl siding
| Length | 12' (3.66 m) |
| Height / Width | 10" (25.4 cm) |
| Thickness | 1/2" (12.7 mm) |
| Panels/Box | 20 pcs/ctn |
| Coverage | 200 sq. ft. (18.58 m²) |
| Installation | Horizontal — Soffit |

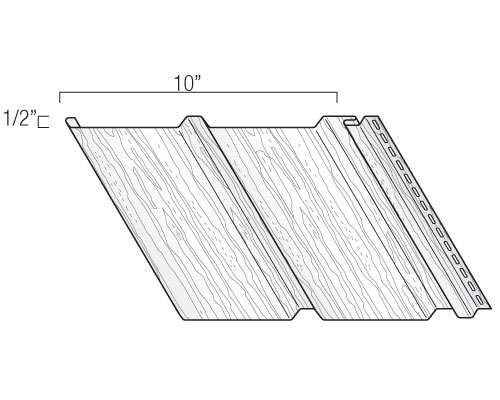

10" wide double 5 solid panel; smooth or woodgrain low-gloss finish; colour-coordinated with Kaycan vinyl siding
| Length | 12' (3.66 m) |
| Height / Width | 10" (25.4 cm) |
| Thickness | 1/2" (12.7 mm) |
| Panels/Box | 20 pcs/ctn |
| Coverage | 200 sq. ft. (18.58 m²) |
| Installation | Horizontal — Soffit |

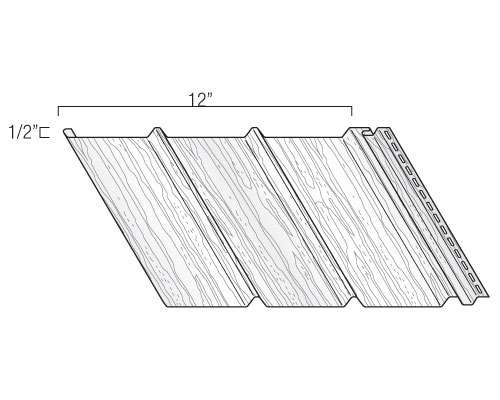

12" wide triple 3 solid panel; smooth or woodgrain low-gloss finish
| Length | 12' (3.66 m) |
| Height / Width | 12" (30.5 cm) |
| Thickness | 1/2" (12.7 mm) |
| Panels/Box | 16 pcs/ctn |
| Coverage | 192 sq. ft. (17.84 m²) |
| Installation | Horizontal — Soffit |

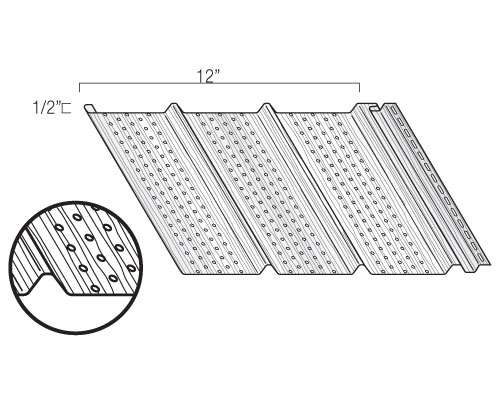

12" wide triple 3 panel with round full-perforated ventilation pattern for maximum airflow
| Length | 12' (3.66 m) |
| Height / Width | 12" (30.5 cm) |
| Thickness | 1/2" (12.7 mm) |
| Panels/Box | 16 pcs/ctn |
| Coverage | 192 sq. ft. (17.84 m²) |
| Installation | Horizontal — Soffit |

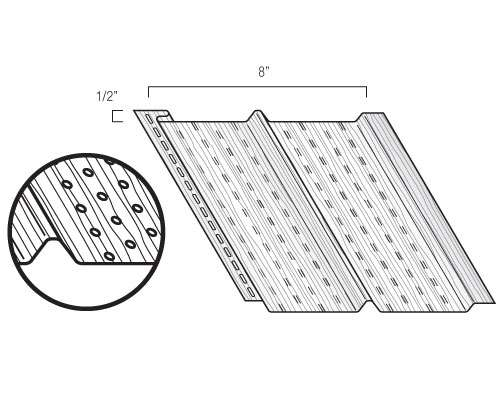

8" wide 2-panel soffit with round ventilation holes; smooth or woodgrain low-gloss finish
| Length | 12' (3.66 m) |
| Height / Width | 8" (20.3 cm) |
| Thickness | 1/2" (12.7 mm) |
| Panels/Box | 24 pcs/ctn |
| Coverage | 192 sq. ft. (17.84 m²) |
| Installation | Horizontal — Soffit |

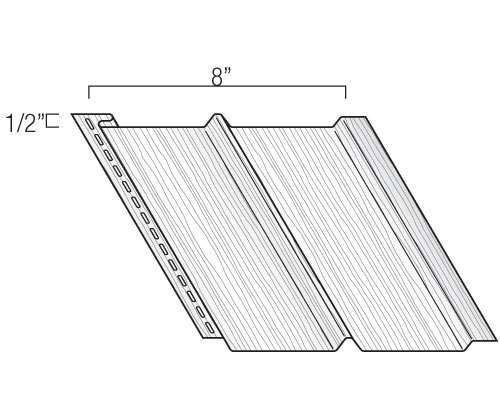

8" wide 2-panel solid soffit; smooth or woodgrain low-gloss finish
| Length | 12' (3.66 m) |
| Height / Width | 8" (20.3 cm) |
| Thickness | 1/2" (12.7 mm) |
| Panels/Box | 24 pcs/ctn |
| Coverage | 192 sq. ft. (17.84 m²) |
| Installation | Horizontal — Soffit |

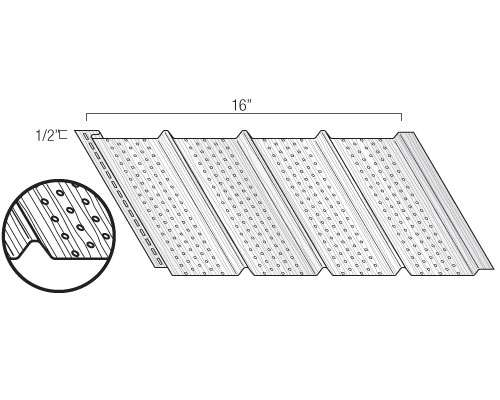

16" wide 4-panel soffit with round Full-O-Vent perforation pattern for maximum ventilation
| Length | 12' (3.66 m) |
| Height / Width | 16" (40.6 cm) |
| Thickness | 1/2" (12.7 mm) |
| Panels/Box | 12 pcs/ctn |
| Coverage | 192 sq. ft. (17.84 m²) |
| Installation | Horizontal — Soffit |
16" wide 4-panel soffit with diamond-pattern ventilation
| Length | 12' (3.66 m) |
| Height / Width | 16" (40.6 cm) |
| Thickness | 1/2" (12.7 mm) |
| Panels/Box | 12 pcs/ctn |
| Coverage | 192 sq. ft. (17.84 m²) |
| Installation | Horizontal — Soffit |

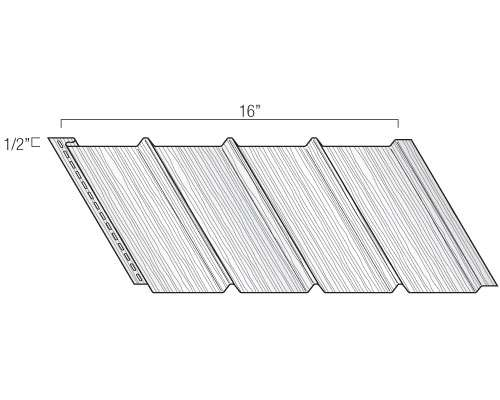

16" wide 4-panel solid soffit; smooth or woodgrain low-gloss finish
| Length | 12' (3.66 m) |
| Height / Width | 16" (40.6 cm) |
| Thickness | 1/2" (12.7 mm) |
| Panels/Box | 12 pcs/ctn |
| Coverage | 192 sq. ft. (17.84 m²) |
| Installation | Horizontal — Soffit |

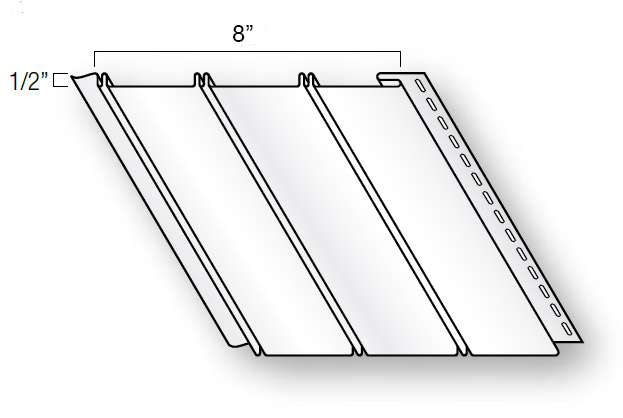

8" wide solid panel with classic beaded centre channel for a traditional appearance
| Length | 12'6" (3.81 m) |
| Height / Width | 8" (20.3 cm) |
| Thickness | 1/2" (12.7 mm) |
| Panels/Box | 12 pcs/ctn |
| Coverage | 100 sq. ft. (9.29 m²) |
| Installation | Horizontal — Soffit |
8" wide vented panel with classic beaded centre channel; provides ventilation with traditional styling
| Length | 12'6" (3.81 m) |
| Height / Width | 8" (20.3 cm) |
| Thickness | 1/2" (12.7 mm) |
| Panels/Box | 12 pcs/ctn |
| Coverage | 100 sq. ft. (9.29 m²) |
| Installation | Horizontal — Soffit |
12" wide soffit panel with a concealed centre vent strip for a clean appearance while providing ventilation; available in White only
| Length | 12' (3.66 m) |
| Height / Width | 12" (30.5 cm) |
| Thickness | 1/2" (12.7 mm) |
| Panels/Box | 12 pcs/ctn |
| Coverage | 192 sq. ft. (17.84 m²) |
| Installation | Horizontal — Soffit |
Available in White only
Vinyl Soffit meets or exceeds the following Canadian and international performance standards.
| Test / Property | Standard | Result / Value |
|---|---|---|
Limited Lifetime Warranty — see manufacturer warranty documentation for full terms | - | Certified |
Low maintenance — will never need painting | - | Certified |
Duratron™ Vinyl Formula — will not rot, peel, chip, flake, or blister | - | Certified |
Designed, developed and manufactured in Canada | - | Certified |
Install panels horizontally across the soffit area from fascia to wall.
Use F Trim at the top of the wall and on the bottom of the fascia board to channel and secure panel edges.

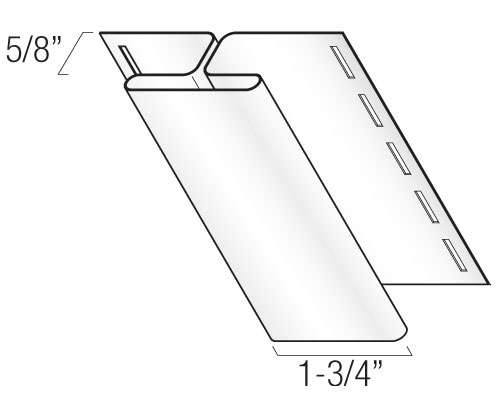

Use H Trim to create breaks in walls or ceilings as needed.
12" Vinyl Soffit Centre Vent (0628) is available in White only.
Colour selection tip: choosing a contrasting soffit colour creates visual interest; matching the trim colour creates a sense of balance.
Coordinate soffit colour with Kaycan vinyl siding and trim products from the same colour palette.
