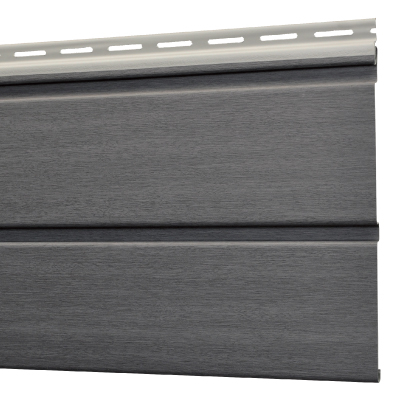

D5-SDouble 5" Solid
| Length | 12' (3.66 m) |
| Height / Width | 10" (25.4 cm) |
| Thickness | .040" |
| Panels/Box | 20 pcs/ctn |
| Coverage | 200 sq. ft. (18.58 m²) |
| Installation | Horizontal — Soffit / Vertical Siding Accent |
Mitten›Double 5" Soffit
Mitten Double 5" Soffit
Mitten Double 5" Soffit delivers bold, clean eave coverage with a distinctive U-groove profile. Choose Solid for a seamless look — or as a vertical siding accent — or Perforated Full Vent for 4.2 sq.in./ft Net Free Air Intake. Available in 9 colours including four Variegated shades exclusive to the Double 5".
.040"9 colours
Available Colours
9
Arctic Grey
Variegated
Variegated(4)
Standard(5)
Colours shown are approximate representations only and may appear differently on screen than the actual product. Request a physical sample before making your final decision.
Profiles & Specifications

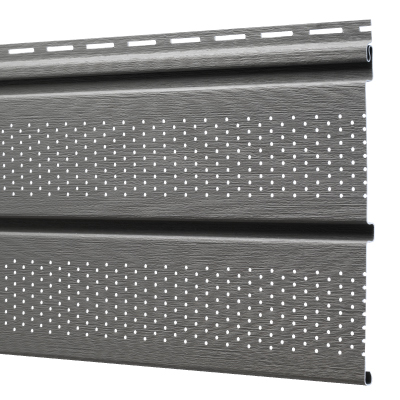

D5-PDouble 5" Perforated
| Length | 12' (3.66 m) |
| Height / Width | 10" (25.4 cm) |
| Thickness | .040" |
| Panels/Box | 20 pcs/ctn |
| Coverage | 200 sq. ft. (18.58 m²) |
| Installation | Horizontal — Soffit |
Net Free Air Intake: 4.2 sq.in./ft (Full Vent)
Certifications & Testing Standards
Mitten Double 5" Soffit meets or exceeds the following Canadian and international performance standards.
| Test / Property | Standard | Result / Value |
|---|---|---|
CAN/CGSB-41.24.95 | - | Certified |
CCMC Acceptance No. 06419L | - | Certified |
ASTM D3679 | - | Certified |
ASTM D4216 — cell classification 13344B | - | Certified |
ASTM D1929 — Self-Ignition Temperature 824°F (440°C) | - | Certified |
ASTM E84 — Flame Spread 20 | Fuel Contribution 0 | Smoke Development 360 | - | Certified |
ASTM E119 — 1-Hour Fire Endurance (wall assembly) | - | Certified |
ASTM D4226 — Impact Strength | - | Certified |
ASTM D2244 — Colour Tolerance | - | ≤3 Hunter units (premium) / ≤4 Hunter units (standard) |
VSI Certified Installer Program | - | Certified |
Compatible Accessories
