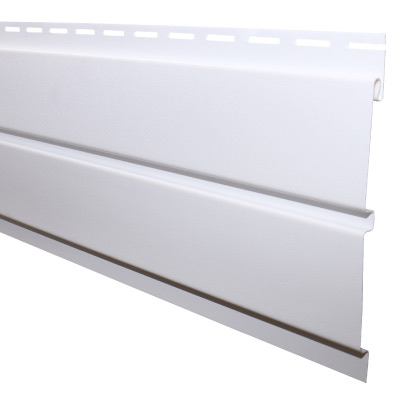

JF8-SJamb-Fit™ 8" Solid
Double 4" profile — 8" wide solid panel
| Length | 12' (3.66 m) |
| Height / Width | 8" (20.32 cm) |
| Thickness | .040" |
| Panels/Box | 24 pcs/ctn |
| Coverage | 192 sq. ft. (17.84 m²) |
| Installation | Horizontal — Soffit |
Mitten›Jamb-Fit™ Soffit
Mitten Jamb-Fit™ Soffit
Mitten Jamb-Fit™ Soffit offers a practical slide-lock installation system in two widths: the 8" (Double 4") covers a full palette of 5 colours, while the 16" (Quad 4") is ideal for wider eave spans and delivers 6.26 sq.in./ft of Net Free Air Intake in its perforated variant. Both sizes share the same 192 sq. ft. per carton and lifetime non-prorated transferable warranty.
.040"5 colours
Available Colours
5Frost
Standard
Standard(4)
Bold(1)
Colours shown are approximate representations only and may appear differently on screen than the actual product. Request a physical sample before making your final decision.
Profiles & Specifications

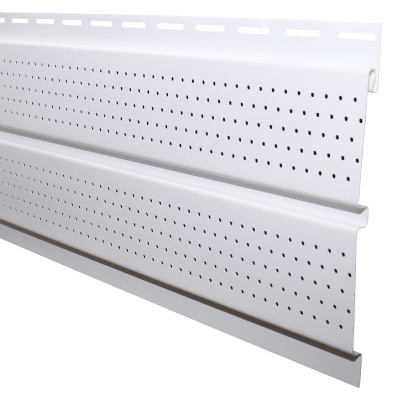

JF8-PJamb-Fit™ 8" Perforated
Double 4" profile — 8" wide perforated panel
| Length | 12' (3.66 m) |
| Height / Width | 8" (20.32 cm) |
| Thickness | .040" |
| Panels/Box | 24 pcs/ctn |
| Coverage | 192 sq. ft. (17.84 m²) |
| Installation | Horizontal — Soffit |
Net Free Air Intake: 3.14 sq.in./ft

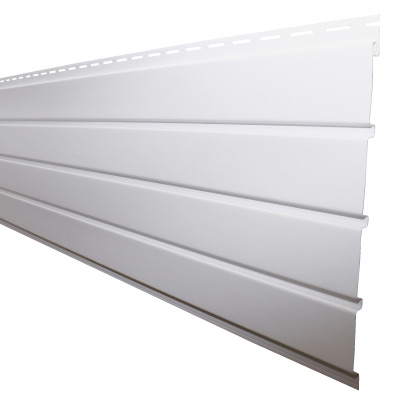

JF16-SJamb-Fit™ 16" Solid
Quad 4" profile — 16" wide solid panel for wider eave spans
| Length | 12' (3.66 m) |
| Height / Width | 16" (40.64 cm) |
| Thickness | .040" |
| Panels/Box | 12 pcs/ctn |
| Coverage | 192 sq. ft. (17.84 m²) |
| Installation | Horizontal — Soffit |

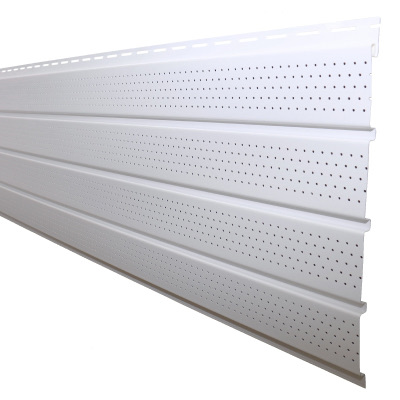

JF16-PJamb-Fit™ 16" Perforated
Quad 4" profile — 16" wide perforated panel for wider eave spans
| Length | 12' (3.66 m) |
| Height / Width | 16" (40.64 cm) |
| Thickness | .040" |
| Panels/Box | 12 pcs/ctn |
| Coverage | 192 sq. ft. (17.84 m²) |
| Installation | Horizontal — Soffit |
Net Free Air Intake: 6.26 sq.in./ft
Certifications & Testing Standards
Mitten Jamb-Fit™ Soffit meets or exceeds the following Canadian and international performance standards.
| Test / Property | Standard | Result / Value |
|---|---|---|
CAN/CGSB-41.24.95 | - | Certified |
CCMC Acceptance No. 06419L | - | Certified |
ASTM D3679 | - | Certified |
ASTM D4216 — cell classification 13344B | - | Certified |
ASTM D1929 — Self-Ignition Temperature 824°F (440°C) | - | Certified |
ASTM E84 — Flame Spread 20 | Fuel Contribution 0 | Smoke Development 360 | - | Certified |
ASTM E119 — 1-Hour Fire Endurance (wall assembly) | - | Certified |
ASTM D4226 — Wind & Impact Resistance | - | Certified |
VSI Certified Installer Program | - | Certified |
Compatible Accessories
