Does DoublePro stop pine needles?

Yes, and that is what the second layer is for. The top sheet has 7/64 inch holes and the sheet below has oblong slots set out of line with them, so a needle has no straight way in. Alu-Rex backs this with a lifetime clog-free warranty that explicitly covers coniferous areas.

Can DoublePro be installed on my existing gutters?

It is made for new gutters, because it is the hanger as well as the guard and goes on as the gutter is hung. For gutters that are staying, the dual-layer option is Gutter Clean Pro, which carries the same lifetime clog-free cover.

How strong is DoublePro?

Alu-Rex's current D-11500 and D-11600 specification sheets rate it at 438 lb (199 kg) per linear foot. Alu-Rex's website and October 2025 product guide quote 425 lb (193 kg). Either way the load is spread along the whole gutter, because the hanger is continuous rather than a bracket every couple of feet.

What does the DoublePro warranty cover?

Three lifetime warranties to the homeowner at the time of installation: manufacturing defects, sturdiness (the hanger will not warp or buckle, which excludes the gutter itself) and clog-free performance, coniferous areas included. It transfers once with the house and requires installation to Alu-Rex's specifications, including screws into the fascia every 24 inches. Alu-Rex supplies replacement material but not the labour to install it.

What is the difference between DoublePro and Hover Pro?

The same dual-layer guard and the same warranties. DoublePro is screwed through the back of the gutter into the fascia. Hover Pro is for hemmed-back gutters and clips onto the hem, so no screw goes through the gutter and it can move with the temperature.

Alu-Rex›DoublePro®

Continuous hanger with a dual-layer guard built in

Alu-Rex DoublePro® Gutter Guard and Continuous Hanger

Name: Exterior Pro Materials
Address: Unit 5, 1235 Journey's End Cir, Newmarket, ON, L3Y 8T7, CA
Telephone: +1 (905) 836-7272

DoublePro is Alu-Rex's continuous hanger with a dual-layer gutter guard built in, for new 5 in. and 6 in. gutters. Micro-perforations over offset slots keep pine needles out, it drains 40.6 in. of water per hour per linear foot on a 5 in. gutter, and it carries lifetime clog-free, sturdiness and manufacturing warranties that include coniferous areas.

0.0175 in. top · 0.014 in. bottom

Request a Quote Datasheet

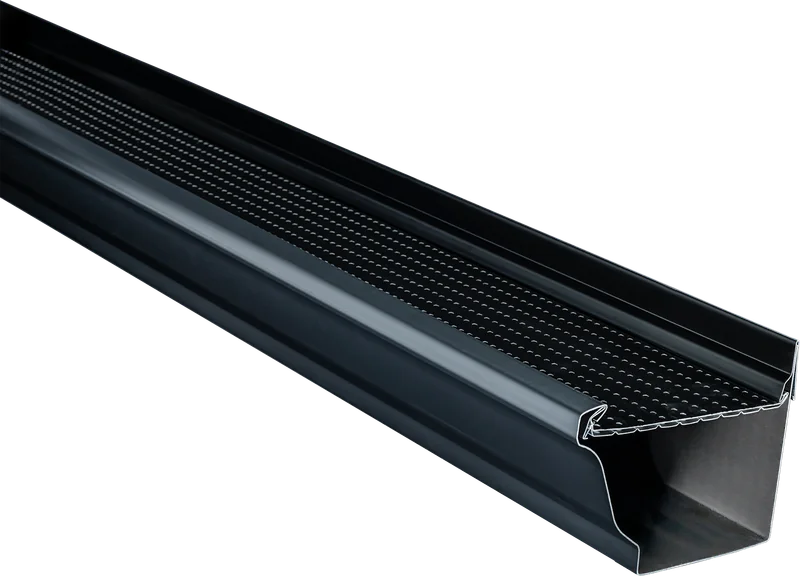

Alu-Rex DoublePro dual-layer gutter guard fitted on a black aluminum gutter

WarrantyLifetime clog-free (coniferous areas included), lifetime sturdiness and lifetime manufacturing warranties

About Alu-Rex DoublePro® Gutter Guard and Continuous Hanger

DoublePro is Alu-Rex's flagship, and the reason it exists is pine needles. It is a continuous hanger with a gutter guard built in, made from two sheets of aluminum instead of one. The top sheet carries rows of 7/64 inch holes; the sheet under it has long oblong slots, and the two patterns are offset so there is no straight path from the roof into the gutter. Water gets through by surface tension and the suction the two layers create between them, which Alu-Rex calls Vortex. Needles and fine debris stay on top until the wind takes them. On a 5 inch gutter it drains 40.6 inches of water per hour per linear foot, and 49.2 inches on a 6 inch gutter.

The other half of the product is the hanger. DoublePro replaces spikes and spaced brackets with one piece that runs the length of the gutter: the front hooks inside the gutter lip, the back is screwed into the fascia every 24 inches with the self-sealing screws in the box, and the curved front edge, Roll-Back+, turns any overflow back into the trough. The current specification sheet rates it at 438 lb per linear foot. In a Canadian winter that matters twice. Snow and ice stay on top of the guard rather than filling the gutter, and the full-length support stops the gutter bending under the load.

The warranty is what sets DoublePro apart on a quote. Alu-Rex covers it for life on manufacturing, on sturdiness and on clogging, and the clog-free cover is written to include coniferous areas, which the single-layer guards exclude.

Available at Pro Materials in Newmarket, Ontario, supplying contractors, builders, and homeowners across York Region, the GTA, Simcoe County and Durham Region. All products are available on a quote basis; contact us for wholesale pricing and current availability.

Key Features

Continuous hanger and gutter guard in one piece, for new 5 in. and 6 in. gutters
Dual-layer aluminum: 7/64 in. micro-perforations over offset oblong slots stop pine needles
Drains 40.6 in. of water per hour per linear foot on a 5 in. gutter and 49.2 in. on a 6 in. gutter
Rated at 438 lb (199 kg) per linear foot on the current specification sheet
Roll-Back+ front curve returns overflow to the gutter in heavy rain
Self-sealing screws with rubber gaskets into the fascia every 24 in.
Lifetime clog-free, sturdiness and manufacturing warranties, coniferous areas included
Carbon Black top layer, invisible from the ground
Continuous hanger products meet ASTM E84-19b and ASTM E2768 surface burning requirements

At a Glance

Warranty: Lifetime clog-free (coniferous areas included), lifetime sturdiness and lifetime manufacturing warranties
Material: Two layers of 3105 H24 aluminum: a Carbon Black micro-perforated top layer over an aluminum-finish slotted bottom layer
Brand: Alu-Rex
Category: Eavestroughs & Downspouts

Profiles & Specifications

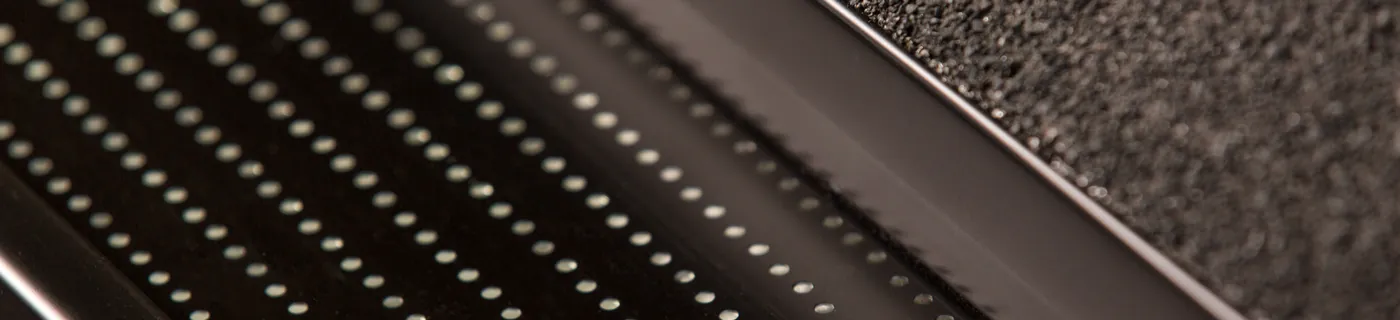

Dual-layer microfiltration continuous hanger

D-11500DoublePro for 5 in. gutters

The standard size for most houses. Carbon Black top layer, aluminum-finish bottom layer.

Length	7.5 ft. (2.29 m)
Thickness	0.0175 in. (0.44 mm) top · 0.014 in. (0.36 mm) bottom
Panels/Box	24 pieces, 200 screws, 12 end trims
Coverage	180 lin. ft. (54.86 m) per carton
Installation	Screwed into the fascia every 24 in. (60 cm)
Gutter Size	5 in. (127 mm)
Profile Width	4.938 in. (125 mm)
Drainage	40.6 in. (1,031 mm) per hour per linear foot
Load Rating	438 lb (199 kg) per linear foot
Perforations	Top layer: 7/64 in. (2.8 mm) round micro-perforations · bottom layer: 1 1/4 in. x 0.267 in. (31.75 mm x 6.8 mm) oblong slots, offset from the holes above
Carton	90 x 11 x 5 in., 47 lb · 24 cartons per skid (4,320 ft.)

D-11600DoublePro for 6 in. gutters

For larger roofs and higher runoff. Same dual-layer build, sized to a 6 in. gutter.

Length	7.5 ft. (2.29 m)
Thickness	0.0175 in. (0.44 mm) top · 0.014 in. (0.36 mm) bottom
Panels/Box	24 pieces, 200 screws, 12 end trims
Coverage	180 lin. ft. (54.86 m) per carton
Installation	Screwed into the fascia every 24 in. (60 cm)
Gutter Size	6 in. (152 mm)
Profile Width	5.938 in. (151 mm)
Drainage	49.2 in. (1,250 mm) per hour per linear foot
Load Rating	438 lb (199 kg) per linear foot
Perforations	Top layer: 7/64 in. (2.8 mm) round micro-perforations · bottom layer: 1 1/4 in. x 0.267 in. (31.75 mm x 6.8 mm) oblong slots, offset from the holes above
Carton	90 x 14 x 5 in., 56 lb · 24 cartons per skid (4,320 ft.)

Specifications

Models and packaging

Model	Gutter size	Length	Per carton	Finish
D-11500	5 in.	7.5 ft.	24 pcs (180 ft.), 200 screws, 12 end trims	Carbon Black top, aluminum bottom
D-11600	6 in.	7.5 ft.	24 pcs (180 ft.), 200 screws, 12 end trims	Carbon Black top, aluminum bottom

Accessories

Part	Size	Details
End trims TR-500 (5 in.) / TR-600 (6 in.)		Included in the carton. Aluminum with Flex-Seal, Carbon Black. Leaves room at the end cap for the gutter's heat movement. 12 per carton, also sold in bags of 12
Self-sealing screws SCREW1011/2BK	#10 x 1 1/2 in.	Included in the carton. Black 1/4 in. hex head, neoprene washer, Dacrotized steel. 200 per carton, also sold in bags of 100
Cut-free universal corners UCF-11500 / UCF-11600		Order separately. Dual-layer Carbon Black corners, so the guard does not have to be mitred on site. 10 per carton
Universal accessory UA-11500 / UA-11600		Order separately. Makes 10 corners or 20 access panels. As an access panel it spans a 9 in. gap, one over the downspout and one at the far end of the run
Water diverter		Order separately. Fits on the perforated corner at inside corners and valleys, secured with four 1/2 in. screws

Order quantities and lead times may vary. Contact us for availability.

Installation Guide

Critical Installation Rules

For new gutters. Insert the front of the DoublePro inside the front lip of the gutter, then fit the back onto the back of the gutter
Overlap each section fully with the next
Crimp the back of the DoublePro to the gutter every 3 ft. (1 m) with an end cap crimping tool, so the assembly holds together while the gutter is lifted
Stop the sections 1/4 in. (7 mm) short of each end cap and fit an end trim in the gap
Slide the back of the gutter under the roof's drip edge
Screw the back of the DoublePro into the fascia every 24 in. (60 cm) with the self-sealing screws supplied. The sturdiness warranty requires this spacing
Where an upper downspout discharges onto the guard, fasten the two layers together with 1/2 in. screws, cut the hole, then seal around the outlet
Access panel (UA-11500 / UA-11600): leave a 9 in. (23 cm) gap in the guard and fix the panel over it with two 1/2 in. screws on the front lip. Put one over the downspout and one at the far end of the run
Corners: stop both sections 5 in. from the corner, screw each 5 in. from its end, and fit an Alu-Rex prefab corner that overlaps both
Seal any opening larger than one perforation (7/64 sq. in.) at overlaps, corners or ends with screws, sealant or an Alu-Rex corner. The clog-free warranty depends on it

Tools & Equipment

General Tools

Drill driver with a 1/4 in. hex bit
Aviation snips
Exterior sealant

Specialty Tools

End cap crimping tool
Magnetic 1/4 in. hex bit, 6 in. long (Alu-Rex)

Fastener Requirements

Screws

Type: Black Dacrotized self-sealing screws, #10 x 1 1/2 in. (38 mm), 1/4 in. (6.4 mm) hex head with an integrated rubber gasket
Clearance: Into the fascia every 24 in. (60 cm)

Storage & Handling

Wind clears most debris off the surface. In sheltered spots and under overhangs on low-slope roofs, sweep the top by hand or rinse it with a garden hose when needed
Clear snow from the roof periodically, as Alu-Rex recommends. Damage from ice buildup caused by poor roof ventilation or insulation, and from snow sliding off steep or metal roofs, is excluded from every Alu-Rex warranty
Keep aluminum away from copper, pressure-treated lumber, concrete, stucco and roofing with metallic granules, and away from runoff off those materials. Contact causes corrosion, and Alu-Rex's warranty tells installers to avoid it
Painted or altered surfaces are not covered by the warranty unless Alu-Rex approves them in writing

Video Guide

DoublePro installation guide (Alu-Rex)

Product Videos

DoublePro technology explained (Alu-Rex)

Questions a spec sheet cannot answer

Each one opens the section of our guides that answers it for Alu-Rex DoublePro® Gutter Guard and Continuous Hanger and the products beside it on the shelf.

Alu-Rex DoublePro® Gutter Guard and Continuous Hanger: Frequently Asked Questions

Does DoublePro stop pine needles?: Yes, and that is what the second layer is for. The top sheet has 7/64 inch holes and the sheet below has oblong slots set out of line with them, so a needle has no straight way in. Alu-Rex backs this with a lifetime clog-free warranty that explicitly covers coniferous areas.
Can DoublePro be installed on my existing gutters?: It is made for new gutters, because it is the hanger as well as the guard and goes on as the gutter is hung. For gutters that are staying, the dual-layer option is Gutter Clean Pro, which carries the same lifetime clog-free cover.
How strong is DoublePro?: Alu-Rex's current D-11500 and D-11600 specification sheets rate it at 438 lb (199 kg) per linear foot. Alu-Rex's website and October 2025 product guide quote 425 lb (193 kg). Either way the load is spread along the whole gutter, because the hanger is continuous rather than a bracket every couple of feet.
What does the DoublePro warranty cover?: Three lifetime warranties to the homeowner at the time of installation: manufacturing defects, sturdiness (the hanger will not warp or buckle, which excludes the gutter itself) and clog-free performance, coniferous areas included. It transfers once with the house and requires installation to Alu-Rex's specifications, including screws into the fascia every 24 inches. Alu-Rex supplies replacement material but not the labour to install it.
What is the difference between DoublePro and Hover Pro?: The same dual-layer guard and the same warranties. DoublePro is screwed through the back of the gutter into the fascia. Hover Pro is for hemmed-back gutters and clips onto the hem, so no screw goes through the gutter and it can move with the temperature.
